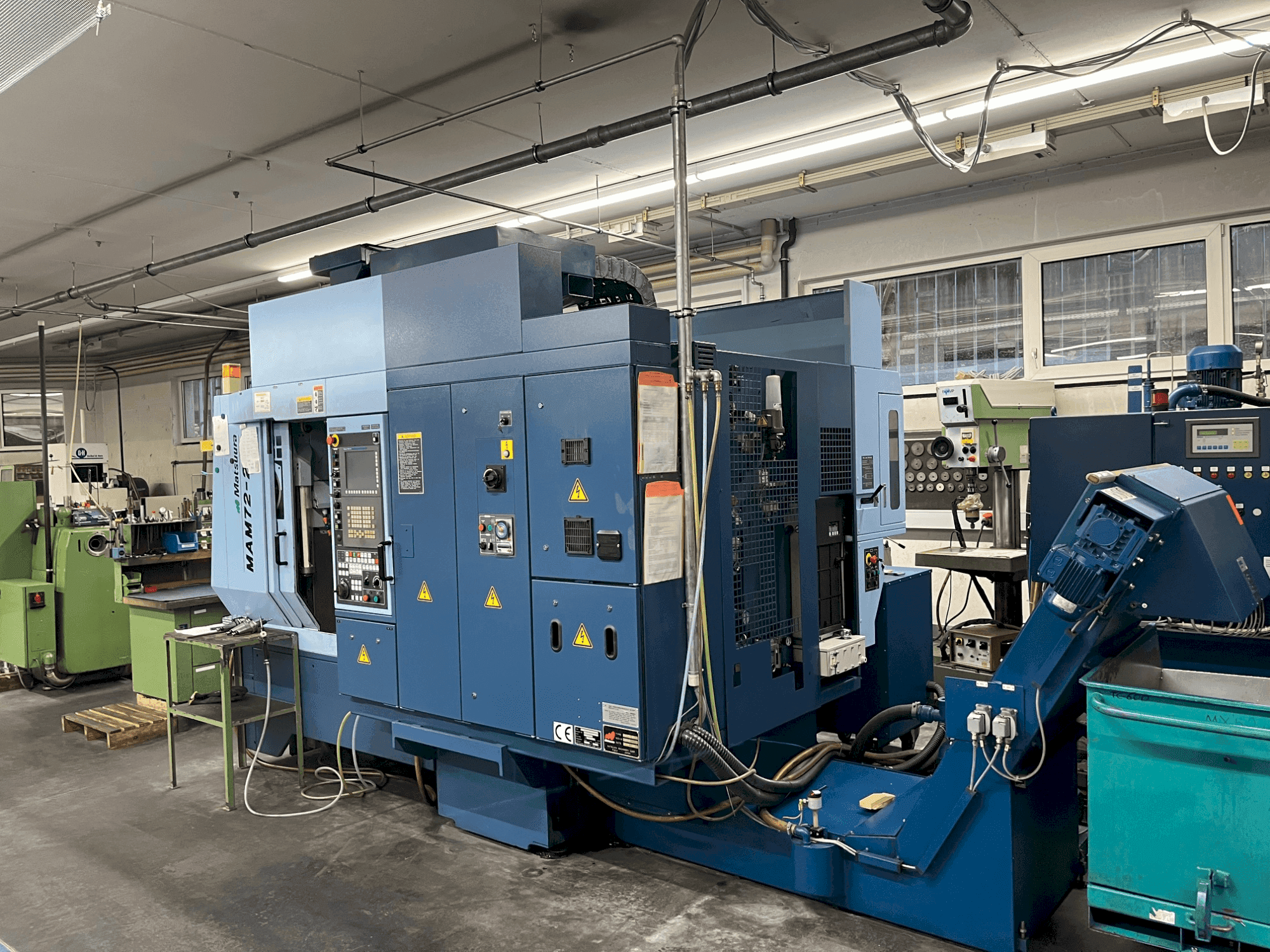

This 5-axis Matsuura MAM72-25V was manufactured in 2006. Ideal for complex and precise machining tasks, this vertical machining center offers enhanced flexibility and productivity for your manufacturing needs. Consider the opportunity to buy this Matsuura MAM72-25V vertical machining center. Contact us for more information.
Overview
- brand: Matsuura
- year: 2006
- MODEL: MAM72-25V
- production hours: 19911
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - Matsuura MAM72-25V
General Data
- Measurements width: 1500 mm
- Measurements depth: 2200 mm
- Measurements height: 2250 mm
Control Unit
- Brand: FANUC
- Model: 30 iM
Main drive
- Spindle speed range: 50-15000 min 1/MIN
- Tool taper: BT40
Media
- Chip conveyor: Yes
Additional equipment
- - Tool changer with 40 stations (chain)
- - Pallet changer for 2 pallets, 130 mm diameter
- - Replacement pallets Capto C6
- - KNOLL coolant system with coolant supply through the spindle and pump KTS25-50T / Coolant shower with a capacity of 100 l/min at 1.4 bar
- - 2 spiral chip conveyors
- - Renishaw measuring probe OMP60 / Renishaw laser system TRS-1
- - Rotating viewing window, electric / For the control: programmable mirror, coordinate system rotation, IZ2/150NF HSC precision control for simultaneous 5-axis machining
- - CE mark
Additional Information
- Technical Machine Benefits:
- - Direct position measuring system via rotary encoder for b and c axes
- - Spindle and spindle motor were last replaced in 2018
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
