➤ Used Matec 30 HV CNC For Sale | gindumac.com

Show in original language

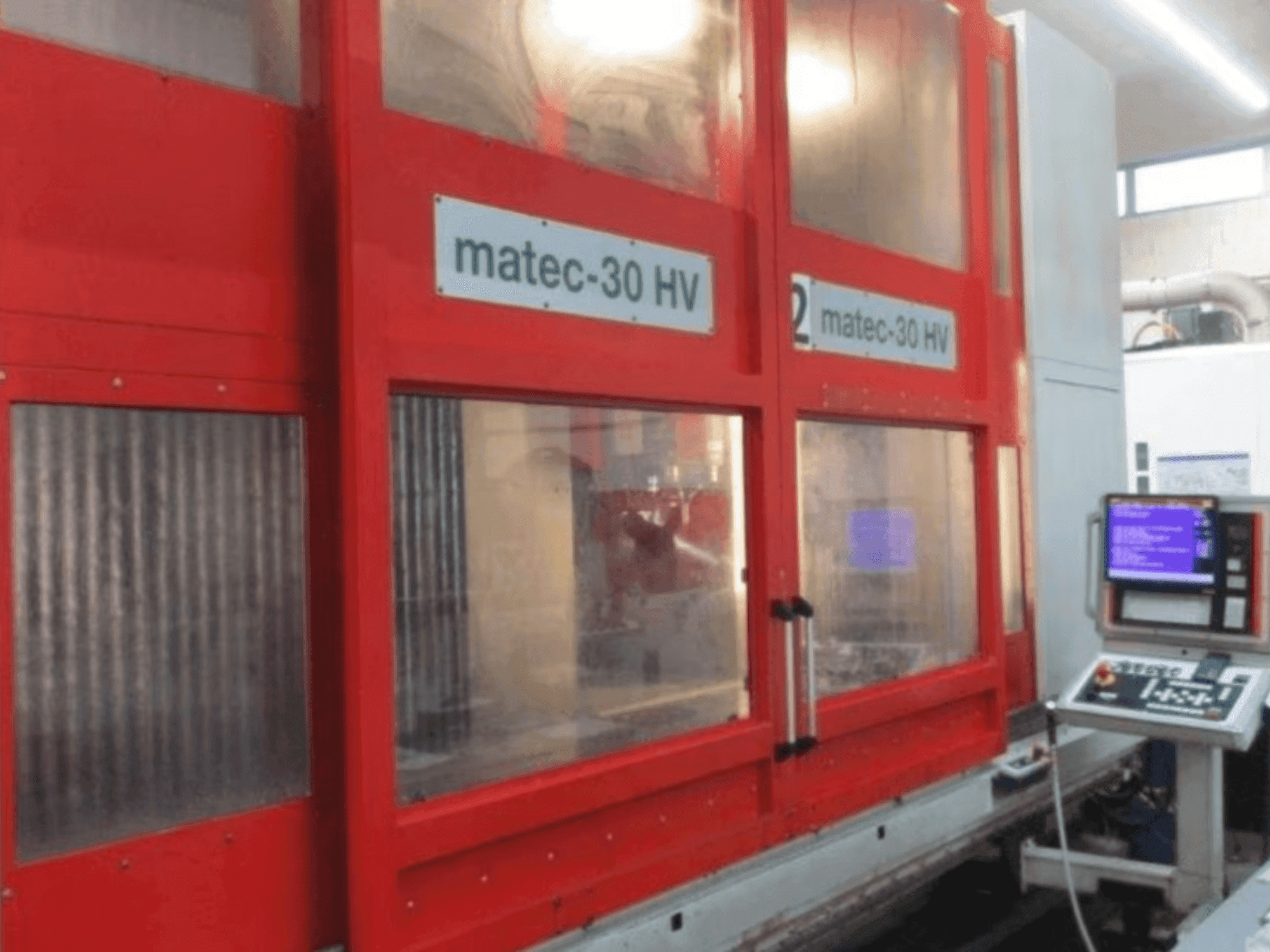

This 5-axis Matec 30 HV CNC milling machine was manufactured in 2000. It features a milling spindle with a speed range of 20-9,000 rpm and a drilling capacity in St 60 of 60mm. The machine boasts large travel distances with X-axis at 4000 mm, Y-axis at 825 mm, and Z-axis at 1100 mm. It supports a maximum table load of 4000 kg. If you are looking to get high-quality milling capabilities consider the Matec 30 HV machine we have for sale. Contact us for more information.

Overview

brand: Matec
year: 2000
MODEL: 30 HV CNC
application type: Milling
Location: Germany
machine type: CNC Milling Machine

Technical Information - Matec 30 HV CNC

General Data

Machine weight: 19000 kg

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 825 mm
Z-AXIS Movement: 1100 mm

Table

Table load: 4000 kg

Turret

Number of tool slots: 48

Media

Internal cooling: Yes

Additional equipment

- Pneumatically opening doors
- Partition wall for two-field machining
- Ventilated measuring systems
- Optional: High-pressure pump (40 bar) and NC rotary table

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse speed: 30 m/min
- - Feed speed: 30000 mm/min
- - Max. Workpiece length for double-sided end machining: x = 3500 mm - 2 * max. Tool length
- - Clamping surface: x: 4500 mm on the clamping plate + rotary table, y: 850 mm; 7 grooves, spacing 125 mm
- - Hsk63 form a according to din 69893 with internal cooling
- - 48 magazine slots
- - Ikz: 20 bar
Qualitative Machine Benefits:
- - 2024: rear covers on x-axis replaced
- - 2023: glass scale on y-axis replaced

Extra information

- The machine is currently still in production and can be inspected during production if interested. Sold as seen, without guarantee and without warranty.ç Control Unit Num 1060 control Bosch axis controller Heidenhain measuring system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
