Matec 30 HV CNC

Photo Gallery

Matec - 30 HV CNCDE-MIL-MAT-1997-00002

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matec 30 HV CNC For Sale | gindumac.com

Show in original language

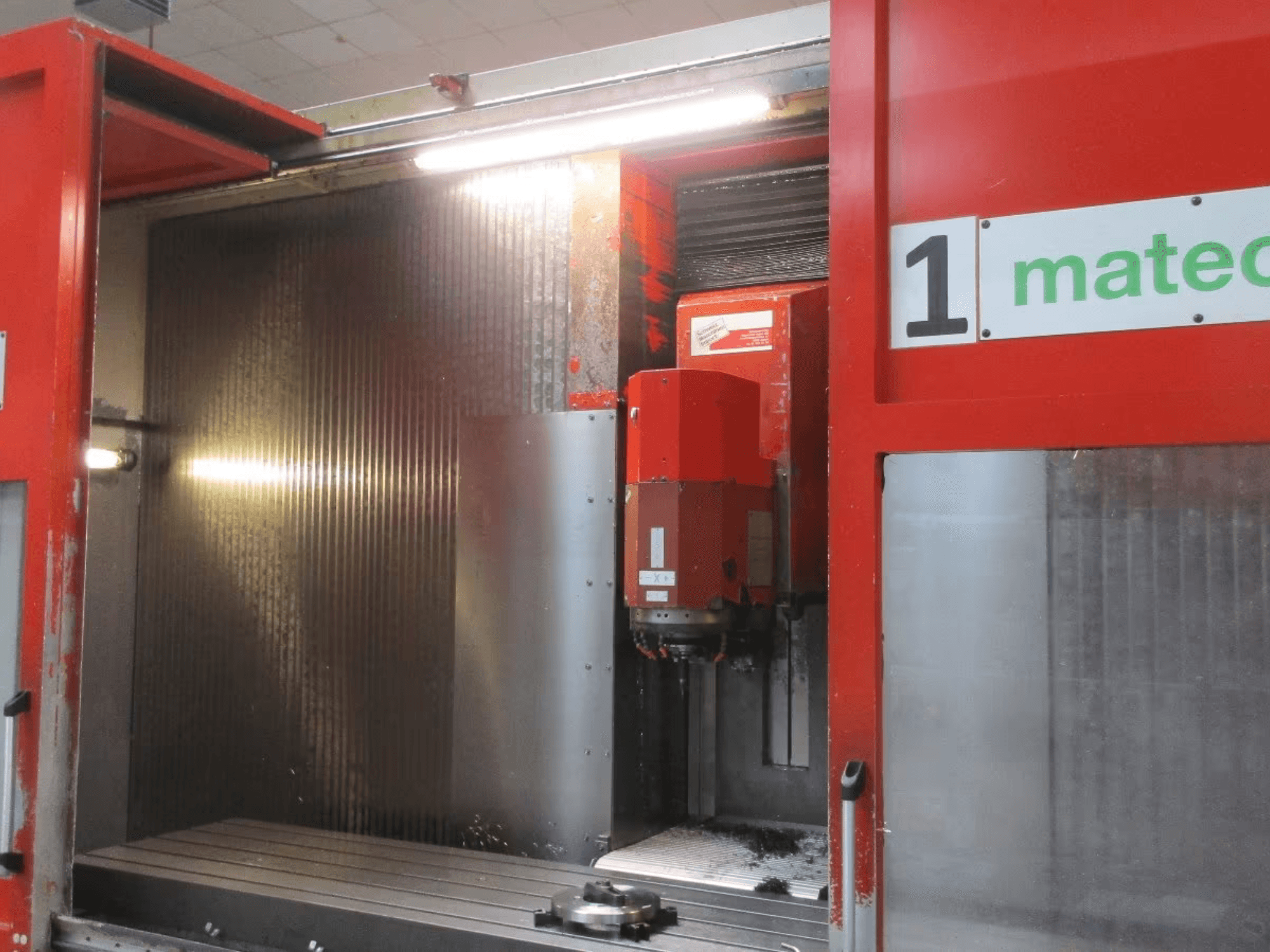

This 4-axis Matec 30 HV CNC was manufactured in 1997. It features an impressive X-axis travel of 4000 mm, Y-axis travel of 600 mm, and Z-axis travel of 800 mm. The machine is equipped with a powerful 10 kW drive and a tool changer with 36 magazine positions. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV CNC vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Matec
year: 1997
MODEL: 30 HV CNC
production hours: 36111
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Matec 30 HV CNC

Control Unit

Control Brand: HEIDENHAIN
Control Model: LE 430 CA

Dimensions

Machine Weight: 16000 kg

Movement

Number of Axes: 4
X-axis Travel: 4000 mm
Y-axis Travel: 600 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 15000 RPM

Additional Information

Axes travel and speeds
- X-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min
- Y-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min
- Z-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min
Spindle
- Drive power (100% duty cycle): 10 kW from 2000 rpm; torque 48 Nm up to 2000 rpm; approx. 6 Nm at 15,000 rpm (M = P*9550/n)
- Drive power (25% duty cycle): 15 kW from 2000 rpm; torque 72 Nm up to 2000 rpm; approx. 10 Nm at 15,000 rpm (M = P*9550/n)
Coolant: Internal coolant 20 bar
Head: Swivel head with 1° indexing increments
Tooling
- Tool changer: 36 positions
- Max. tool diameter: 130 mm
Work area and clamping
- Max. workpiece length for double-sided end machining: X = 3500 mm − 2 × max. tool length
- Clamping surface: X = 4500 mm (clamping plate length)
- Y = 650 mm (clamping plate length); 7 T-slots, 125 mm spacing

Electrical connection: Total connected load 42 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
