Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MAG - CFV 1050PL-MIL-MAG-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAG CFV 1050 vertical machine center

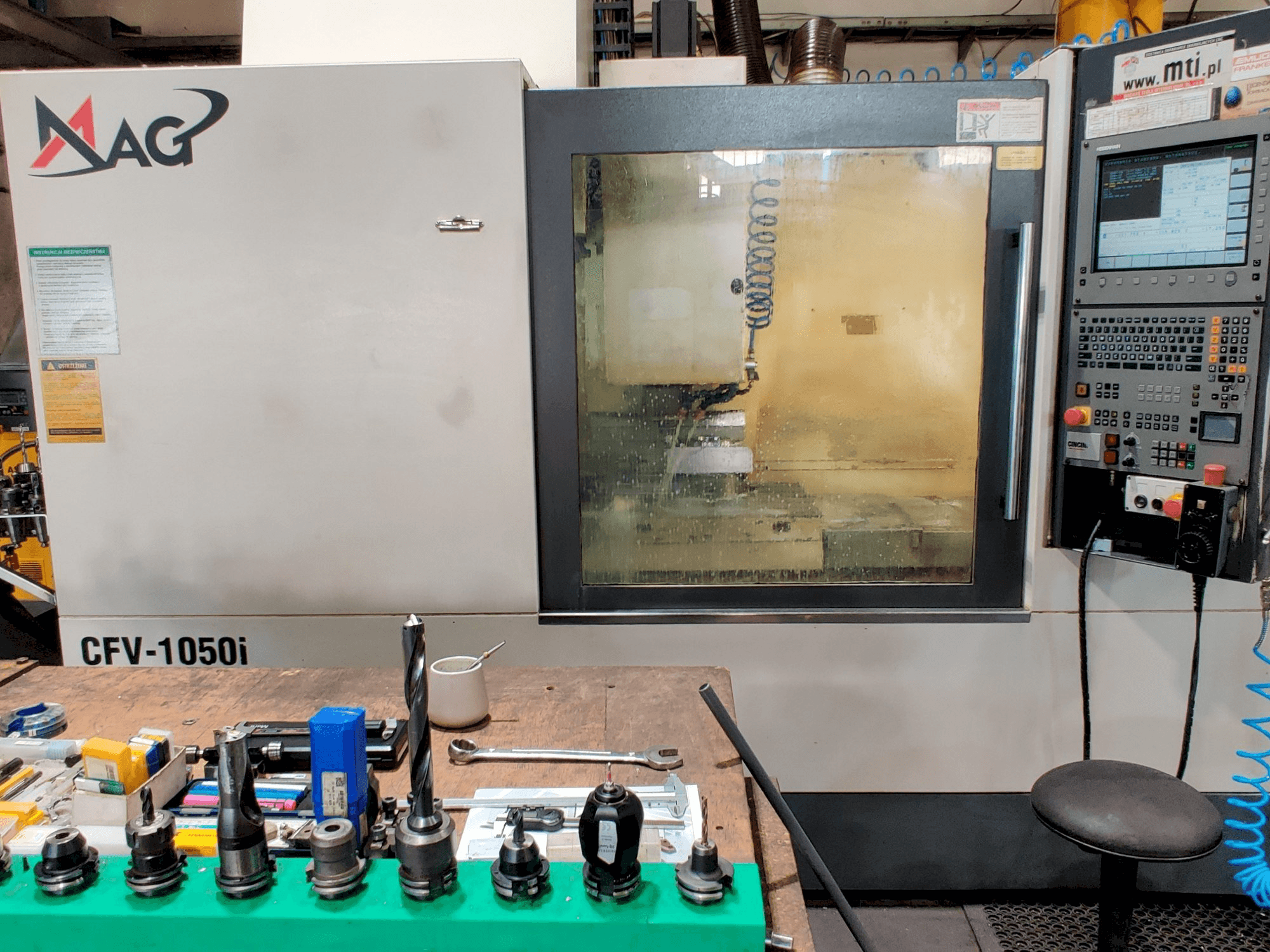

This MAG CFV 1050 vertical machine center was manufactured in the year 2011 in Germany and has 38906 hours, of which 17858 are spindle hours. It is equipped with a HEIDENHAIN iTNC530 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and the possibility to connect 4-axis to numerical control.
Overview
- brand: MAG
- year: 2011
- MODEL: CFV 1050
- production hours: 38906
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - MAG CFV 1050
General Data
- Measurements width: 3400 mm
- Measurements depth: 3000 mm
- Machine weight: 5200 kg
Control Unit
- Model: iTNC530
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 11 kW
- Tool taper: SK-40
- Number of axis: 3
Movement
- X-AXIS Movement: 1050 mm
- X-AXIS Rapid traverse: 36 m/min
- Y-AXIS Movement: 540 mm
- Y-AXIS Rapid traverse: 36 m/min
- Z-AXIS Movement: 720 mm
- Z-AXIS Rapid traverse: 36 m/min
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 1120 mm
- Outer width: 600 mm
Tools
- Slots in storage: 30 pcs
- Max weight: 6 kg
- Max tool diameter: 70 mm
- Max tool length: 300 mm
Additional Information
- Technical Machine Benefits:
- - Number of t-slots: 5
- - Screw chip conveyor
- - Possibility to connect 4-axis to numerical control
- - High pressure pump 20 bar
- - There is no tooling included in the offer
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
