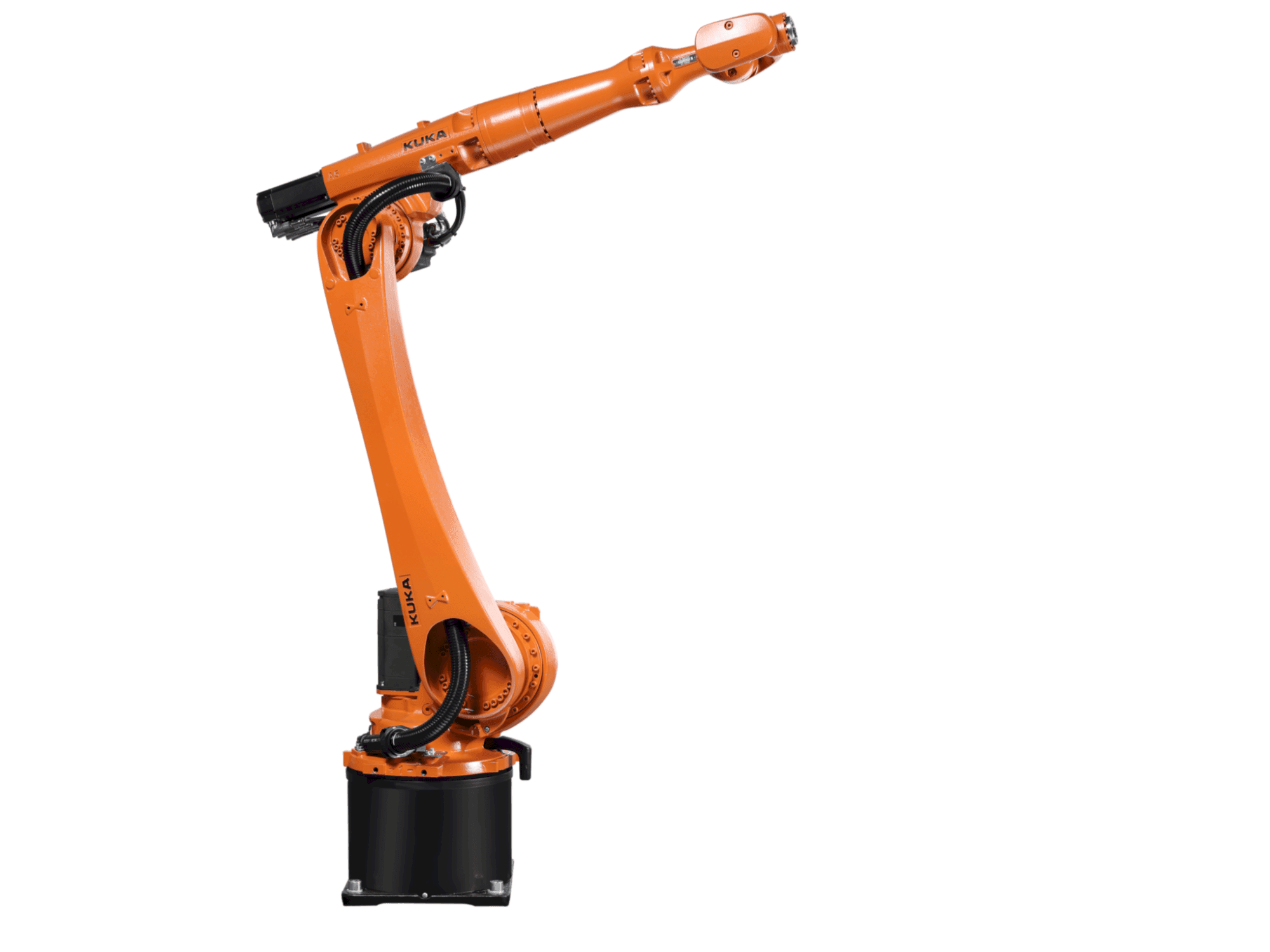

KUKA - KP2 HV 2600 HWDE-WEL-KUK-2023-00001

Additional equipment

• Component holder (cradle) between the rotary tilting table and the counter bearing. L = 4250mm x 1000mm. 16mm holes as provided.
• Connection to the faceplates with standard Bräuer drilling pattern (installation height is still to be adjusted to ensure the largest possible turning radius).
• The component holder is designed for quick change. (Brauer Standard)

Machine Benefits

Technical Machine Benefits

• Turn-tilt module (max load 2600 kg)
• Mount position (assembly) track: kl4000
• Hofmann blauf. Rotary module with counter bearing
• Rotary/tilting module kp2-hv 2600 hw with counter bearing for robot system // rotary-tilting module kp2-hv 2600 hw, freely programmable, maximum load 2,600 kg, maximum torque 3,900 nm, maximum tilting moment 9,250 nm, maximum rotation axis speed 50°/s, maximum tilt axis speed 25°/s
• Turning diameter = 1,200 mm
• Krc4 standard control cabinet
• Design services for fixtures, grippers, positioners, or customized accessories
• Closed cable ducts for installation within the system on the floor/base plate or as open cable trays for installation above the protective fence
• Cda layout plan

Extra Information

The machine is completely new and unpacked It was build by the system integrator, but never delivered. Counter bearing for rotary-tilting module KP2 Counter bearing for rotary-tilting module KP2 11/26. This allows the KP2 to also be used as a tailstock turning device. The counter bearing is bolted to the base (Demmler) and can be adjusted on the Demmler plate in 100mm increments. Diameter = 28mm. Turning diameter = 1200mm. Workspace survey -Connection plan -Project schedules -Assembly plans Conversion and configuration Conversion and configuration of the system from a 3D CAD model to a simulation model for Cenit. Electrical and pneumatic interconnection
