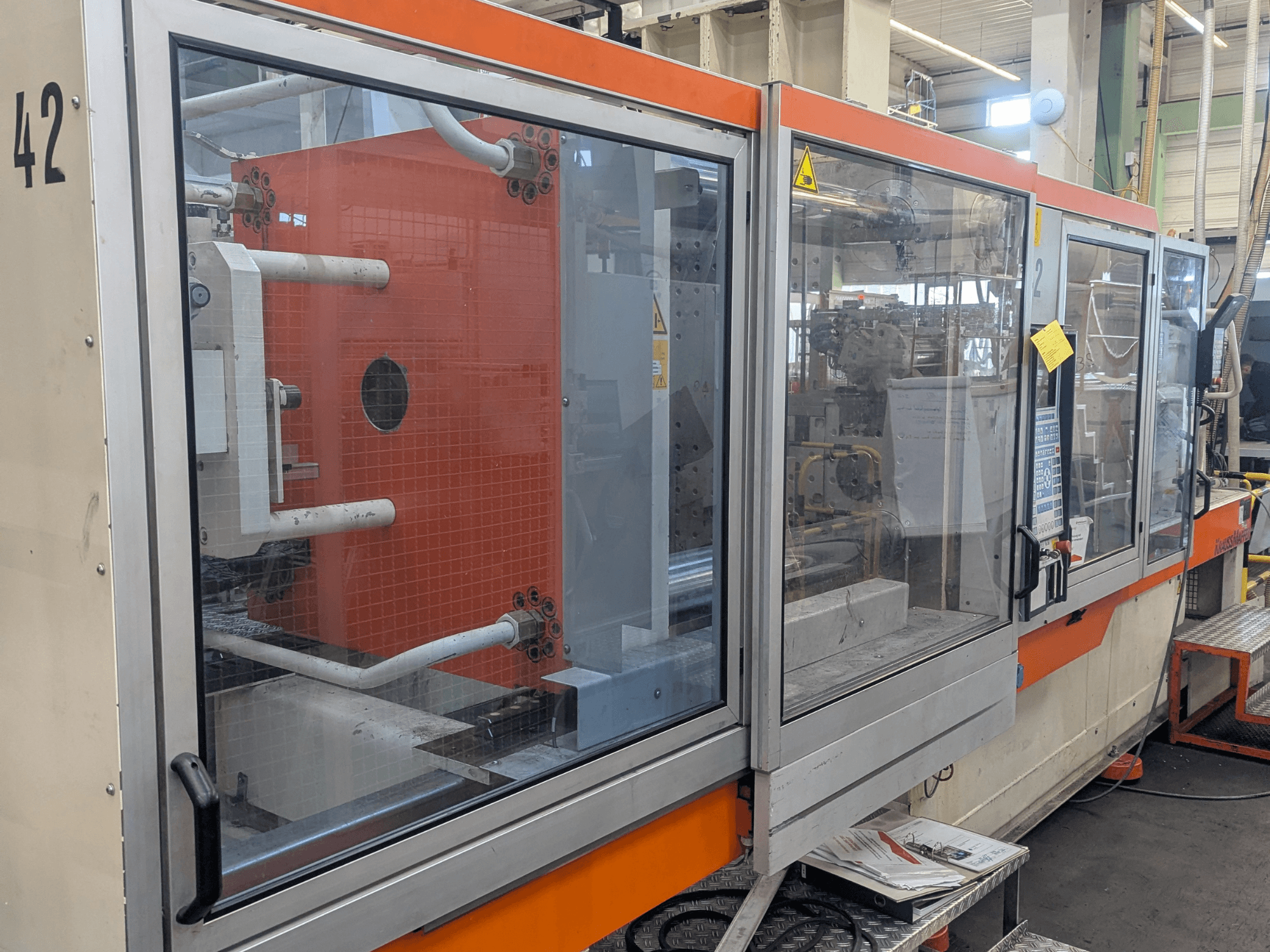

Krauss Maffei - KM 350-3000DE-INJ-KRA-2003-00009

• Stroke volume: 1097 cm³

• Processed materials: PA, PP, PE, ABS

• Cylinder temperature: up to 450 °C

• Mold opening force: 220 kN

• Travel force (moving plate): opening 105 kN / closing 95 kN

• Max. opening stroke: 920 mm

• Min. mold height: 380 mm

• Max. daylight: 1300 mm

• Size of mold platens (H x V): 1060 x 1095 mm

• Distance between tie bars (H x V): 710 x 710 mm

• Ejector stroke: 250 mm

• Ejector force (forward/backward): 95 / 49 kN

• Max. mold weight: 4950 kg

Additional equipment

• Handling system: Wittmann Robot System (2013) with the following robot travel (X/Y/Z): 420 / 1200 / 2000 mm
