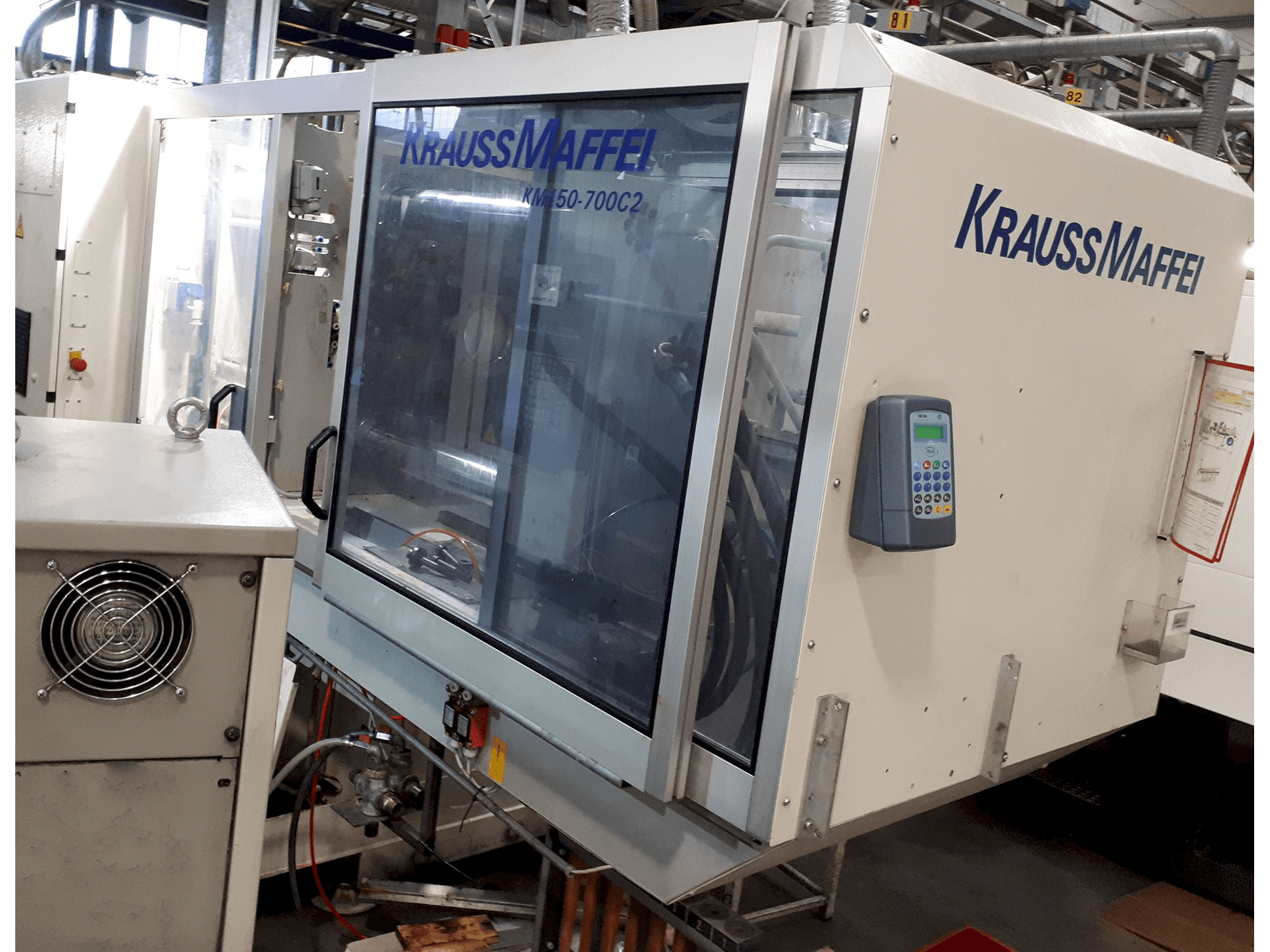

Right view of Krauss Maffei C2 150-700 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei C2 150-700

Photo Gallery

Krauss Maffei - C2 150-700IT-INJ-KRA-2003-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei C2 150-700 Injection Moulding Machine

Show in original language

This Krauss Maffei C2 150-700 Injection Moulding Machine was produced in 2003 in Germany and has a production record of 87500 hours. Operated through a Krauss Maffei MC 4 Control unit, this machine includes a new coupling on injection to screw and a Completely new seal on closure and injection cylinder.

Overview

brand: Krauss Maffei
year: 2003
MODEL: C2 150-700
production hours: 87500
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei C2 150-700

General Data

Measurements width: 4660 mm
Measurements depth: 1510 mm
Measurements height: 2190 mm
Machine weight: 7100 kg

Control Unit

Model: MC 4
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 45 mm
Shot weight: 278 g/PS
Stroke volume: 305 cm³
Injection pressure: 2336 bar
Plasticizing rate max.: 27 g/PS
Screw speed: 255 rpm
Heating capacity: 16 kW
Adjustable heating zones: 5
Nozzle pressure: 84 kN

Clamping unit

Clamping force: 1500 kN
Opening stroke: 600 mm
Max open daylight: 900 mm
Distance between bars: 500x500 mm
Mould height min: 300 mm
Mould height max: 600 mm
Size of mold platens: 780x790 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
