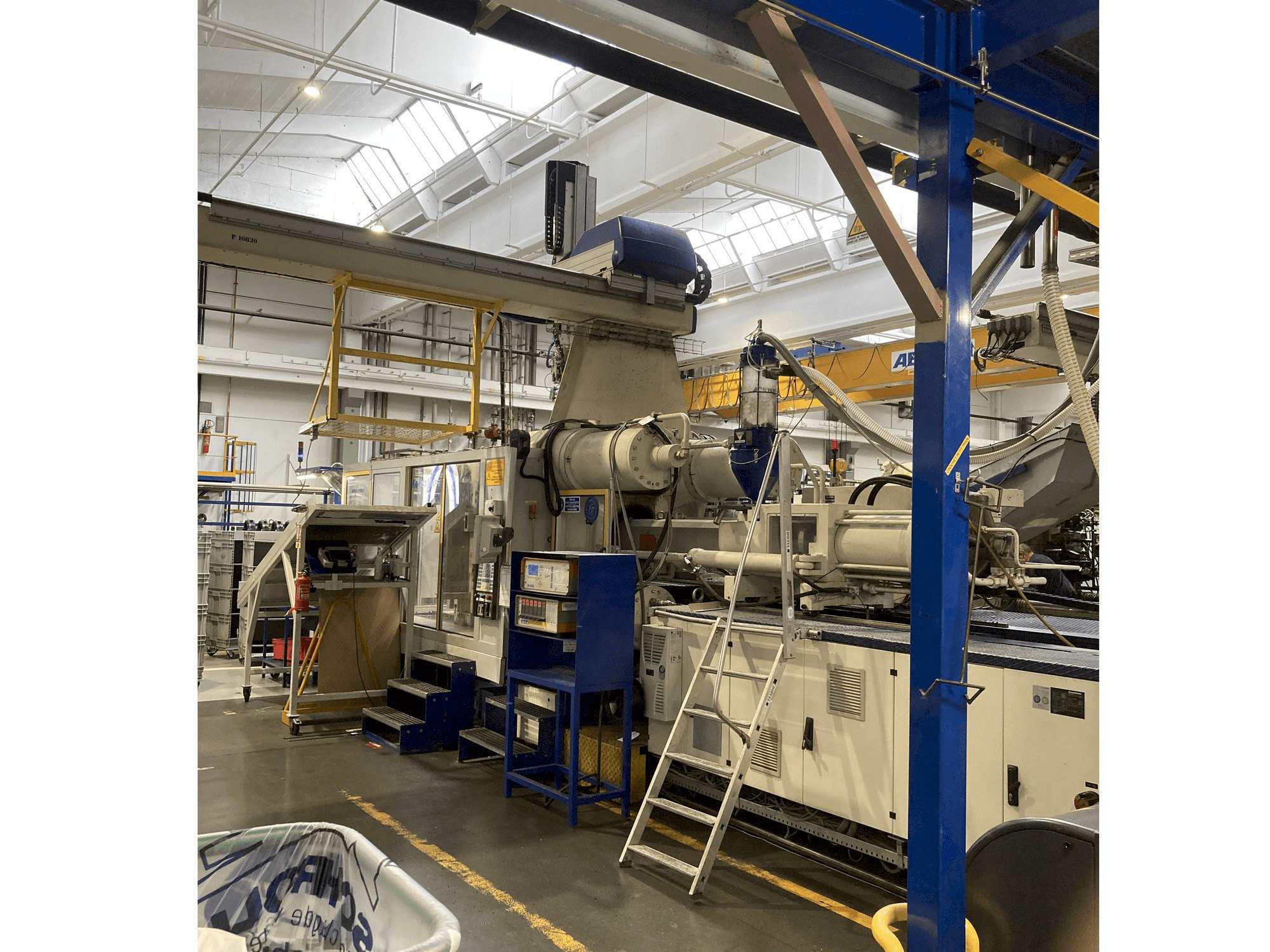

Front view of Krauss Maffei 650 – 2700 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 650 – 2700 C1

Photo Gallery

Krauss Maffei - 650 – 2700 C1DE-INJ-KRA-2001-00004

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 650 – 2700 C1 Injection moulding machine

Show in original language

This Krauss Maffei 650 – 2700 C1 Injection moulding machine was manufactured in the year 2001 and has 98203 production hours. The machine has a clamping force of 6500 kN and includes a robot.

Overview

brand: Krauss Maffei
year: 2001
MODEL: 650 – 2700 C1
production hours: 98203
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 650 – 2700 C1

General Data

Machine weight: 34500 kg

Injection Unit

Screw diameter: 80 mm
Shot weight: 1049 g
Injection pressure: 1829 bar

Clamping unit

Clamping force: 6500 kN

Additional equipment

- Includes a robot

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between tie-bars h/v : 1000 mm
- - Tie-bar diameter: 210 mm
- - Platten size (h x v): 1525 x 1700 mm
- - Mould height: min 600 mm
- - Daylight between platen: 600 mm
- - Clamping speed: 730 (mm/s)
- - Opening stroke: 1750 mm
- - Ejector force: 226 kn
- - Ejector stroke : 120 mm
- - Injection rate: 603 cm3/s
Qualitative Machine Benefits:
- - Nozzle force: 1730 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
