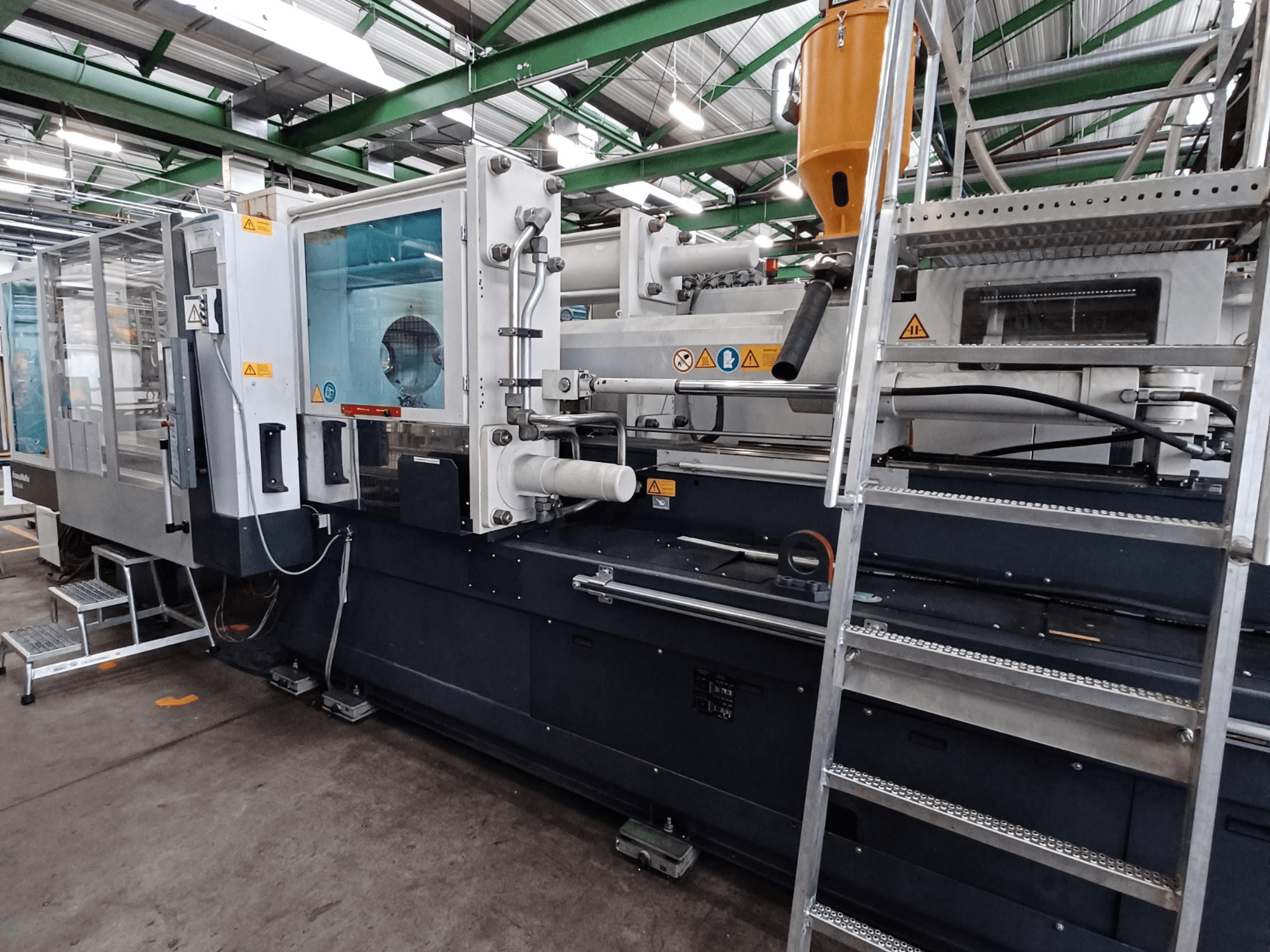

Krauss Maffei - 500-4300 CXDE-INJ-KRA-2010-00006

• Clamping unit

  • Tool weight: DS 3950 kg / AS 5260 kg (total 7900 kg)

  • Min. tool diameter: 560 mm

  • Opening stroke: 1170 mm

  • Tool installation height: min 480 mm; max –

  • Max plate spacing: 1650 mm

  • Mounting plates (H × V): 1270 × 1200 mm

  • Clear column spacing: H 900 mm / V 800 mm

  • Centering ring diameter: 200 mm

• Ejector

  • Stroke: 250 mm

  • Ejection force: 95.4 kN

  • Retraction force: 48.6 kN

  • Pneumatic ejector: yes

• Core pulls / controls

  • Core pull control: 2 (AS) + 2 (DS)

  • Closing nozzle: 2 hydraulic / 0 pneumatic

  • Process control (SPC): yes (Kistler, p=2 / t=0)

  • Printer interface: no / 12-port USB

  • Hot runner control: no

• Injection unit 1

  • L/D ratio: 20

  • Screw diameter: 90 mm

  • Max. stroke volume: 2290 cm³

  • Max. shot weight (PS): 2084 g

  • Injection pressure: 1839 bar

  • Plasticizing rate: 185.8 g/s

  • Screw speed: 270 rpm

  • Nozzle bore: 6 mm

  • Pump power / Heating power: 90 kW / 44 kW

• Other

  • Max. crane load: 10 tons

  • 2K-capable: no

  • Filter nozzle/mill: no

  • It is a standard fully hydraulic 2-plate clamping system with fully hydraulic screw drive and constant motor.

  • Operating hours: 60,159 h

Additional equipment

• Linear robot: KRC6-2 ARC-C

  • Axes: X/Y (standard), Z present

• 69,880 hours

• Wittmann handling included

• Optional: second unit from 2010 available, without Wittmann handling: 60,150 hours
