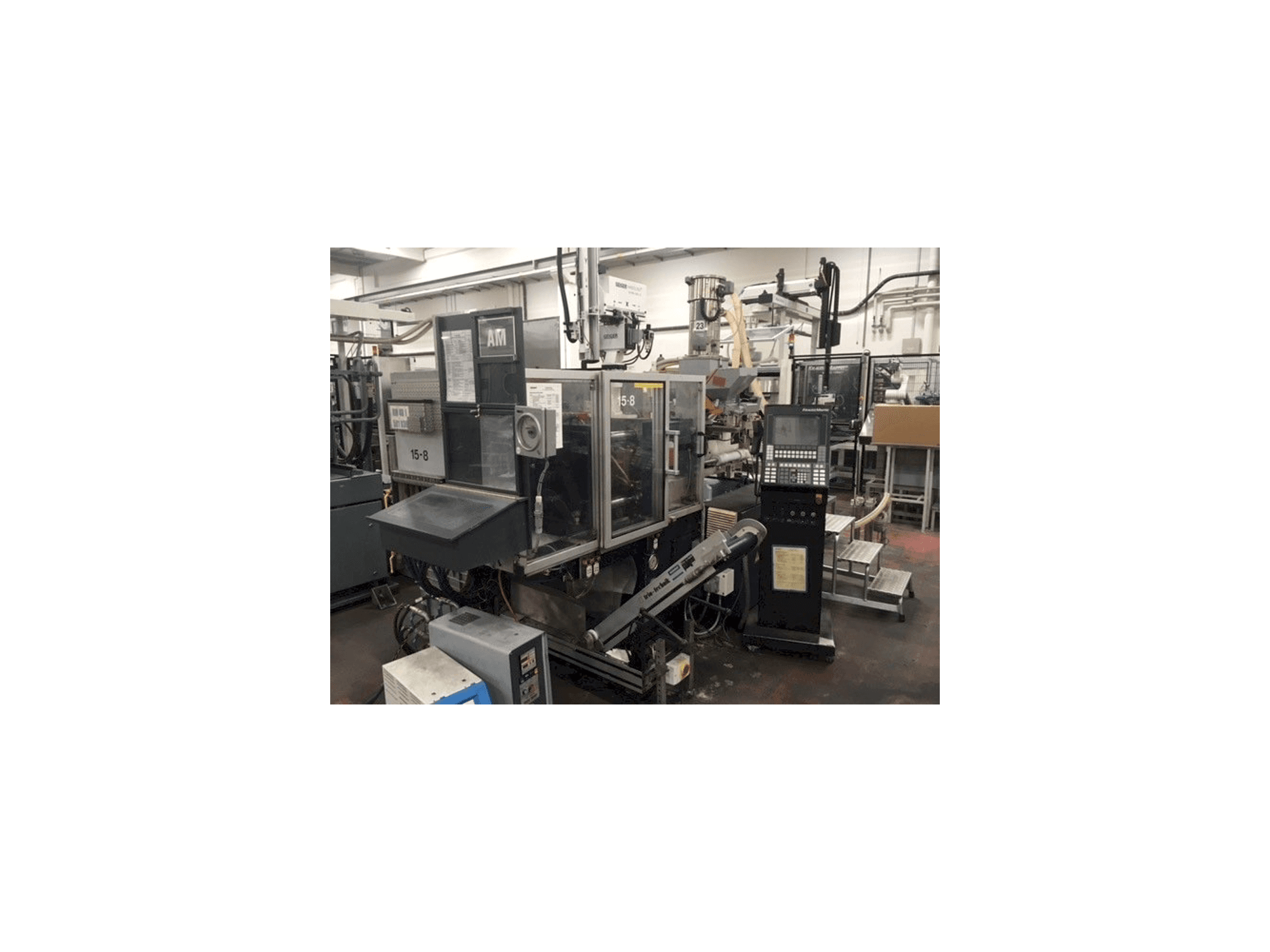

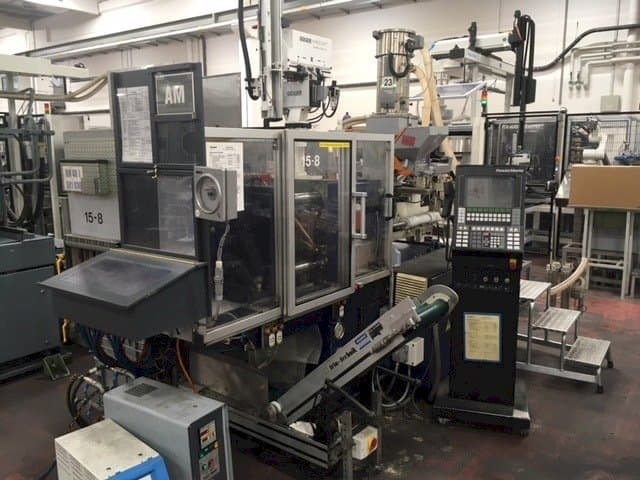

Front view of Krauss Maffei 40-135 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 40-135 C2

Krauss Maffei - 40-135 C2DE-INJ-KRA-1993-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 40-135 C2 Injection Moulding Machine

Show in original language

This Krauss Maffei 40-135 C2 Injection Moulding Machine was manufactured in 1993 in Germany and has been working for approximately 101623 hours since then. Equipped with a Krauss Maffei MC3 Control unit, this machine can perform with a clamping force of 400 kN.

Overview

brand: Krauss Maffei
year: 1993
MODEL: 40-135 C2
production hours: 101623
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 40-135 C2

General Data

Measurements width: 3300 mm
Measurements depth: 1500 mm
Machine weight: 3000 kg

Control Unit

Model: MC3
Brand: KRAUSS MAFFEI

Injection Unit

Injection pressure: 1800 bar

Clamping unit

Clamping force: 400 kN
Distance between bars: 320x320 mm
Mould height min: 200 mm
Mould height max: 350 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Euromap 12 interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
