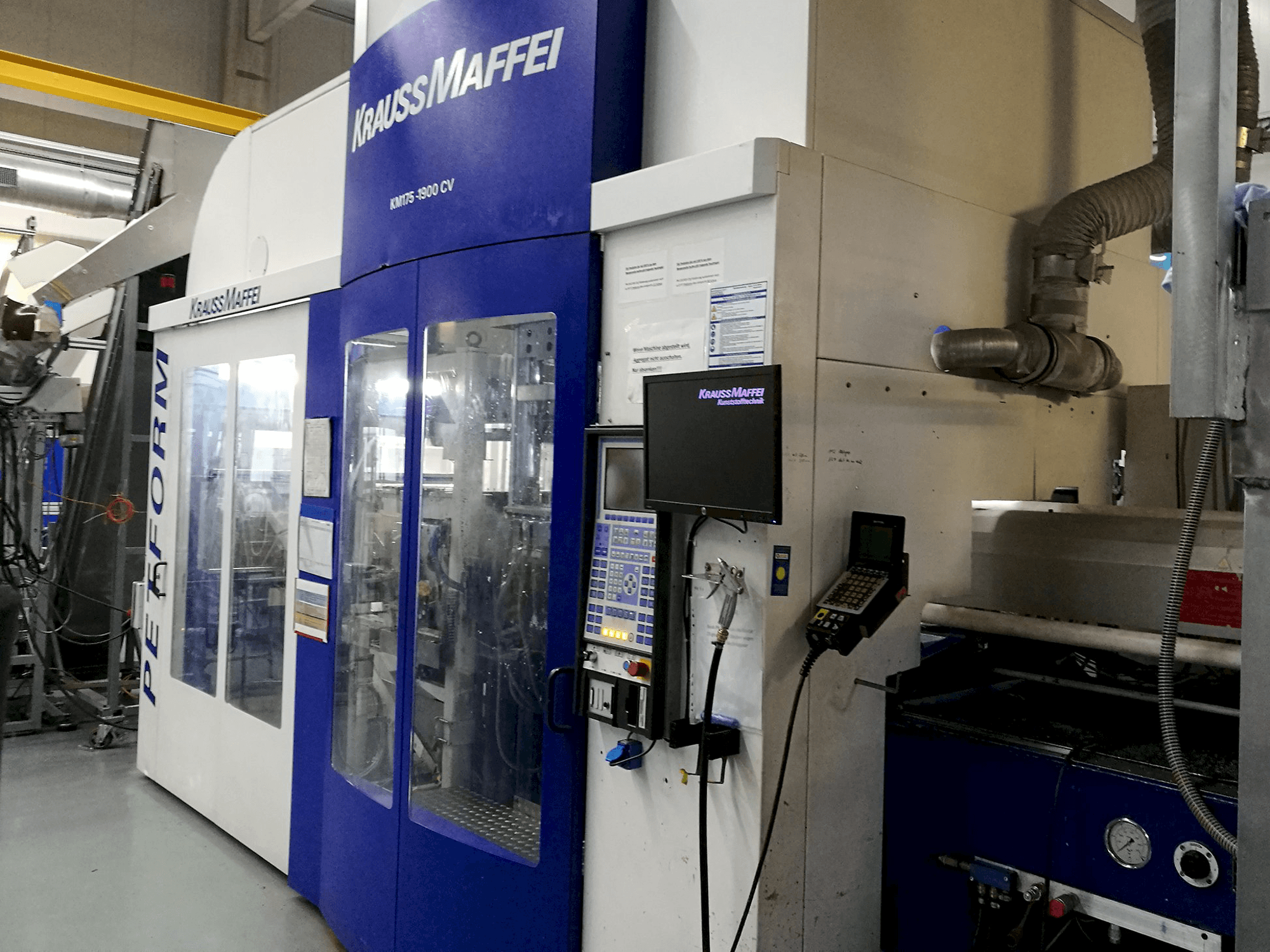

Right view of Krauss Maffei 175-1900 CV Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 175-1900 CV

Photo Gallery

Krauss Maffei - 175-1900 CVDE-INJ-KRA-2002-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 75-1900 CV Injection Moulding Machine

Show in original language

This Krauss Maffei 175-1900 CV Injection Moulding Machine was made in 2002 in Germany and counts with 77389 production hours. Equipped with a control unit of the same brand, this top quality machine incorporates a clamping force of 1750 kN and an injection pressure of 1360 bar. It presents very good conditions, as it has a completely new hydraulic hose package.

Overview

brand: Krauss Maffei
year: 2002
MODEL: 175-1900 CV
production hours: 77389
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 175-1900 CV

General Data

Measurements width: 7500 mm
Measurements depth: 2000 mm
Measurements height: 4400 mm
Machine weight: 11800 kg

Control Unit

Brand: KRAUSS MAFFEI
CNC main language: German
CNC language customizable: Yes

Injection Unit

Screw diameter: 80 mm
Shot weight: 1367 g/PS
Stroke volume: 1367 cm³
Injection pressure: 1360 bar
Plasticizing rate max.: 135 g/s PS
Screw speed: 130 rpm
Heating capacity: 49 kW
Adjustable heating zones: 9
Nozzle pressure: 110 kN

Clamping unit

Clamping force: 1750 kN
Opening stroke: 700 mm
Max open daylight: 1150 mm
Distance between bars: 560x560 mm
Mould height min: 450 mm
Mould height max: 1150 mm
Size of mold platens: 915x915 mm
Ejector stroke: 200 mm
Ejector force for / back: 77/28 kN

Media

Power consumption: 198 kW

Additional equipment

- Wittmann Robot-System W633P -259 (300x1400)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
