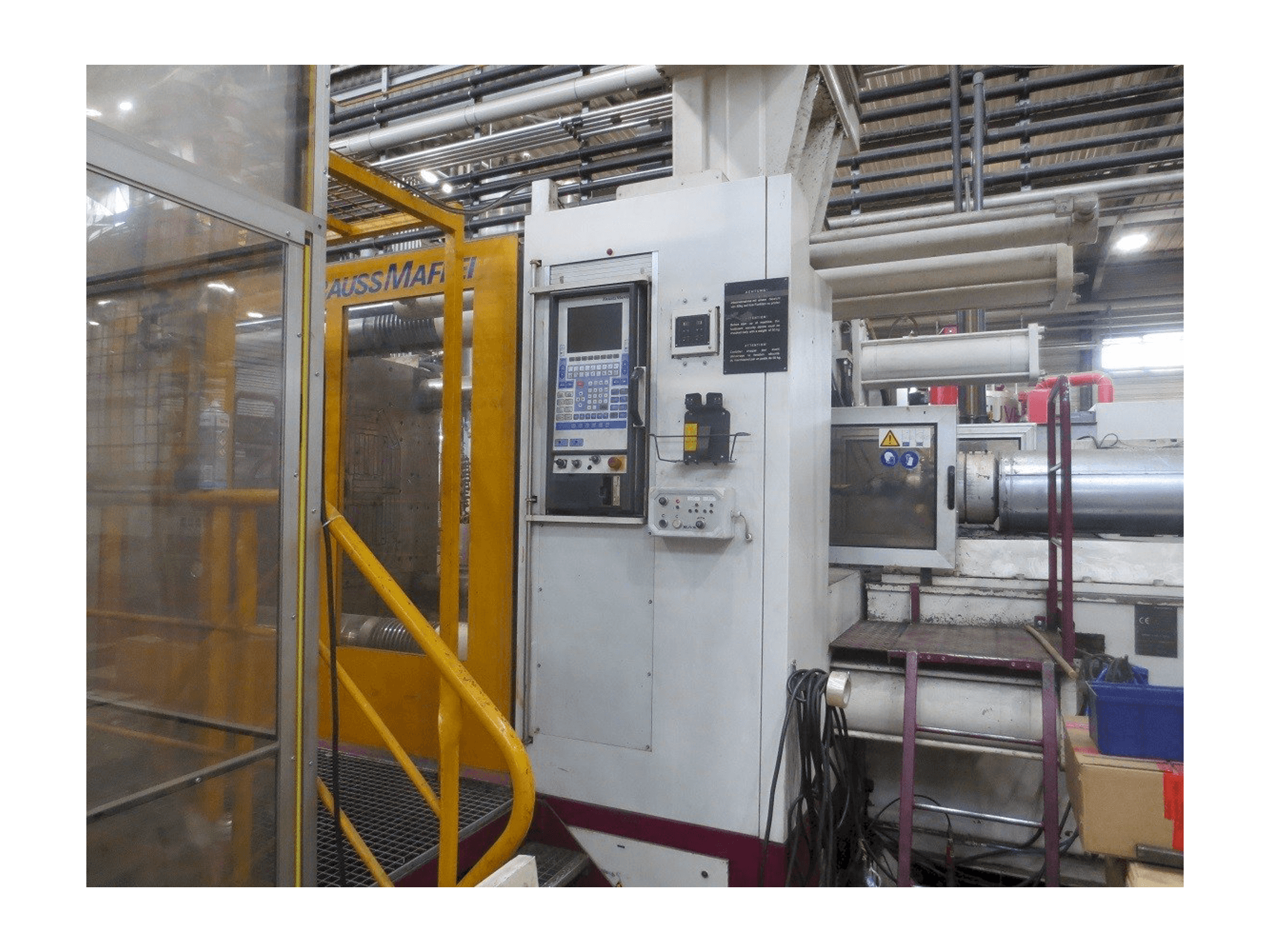

Front view of Krauss Maffei 1600-14700 MC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 1600-14700 MC

Krauss Maffei - 1600-14700 MCFR-INJ-KRA-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 1600-14700 MC injection moulding machine

Show in original language

This Krauss Maffei 1600-14700 MC injection moulding machine was manufactured in 1997. The machine has a total of 130000 production hours. It has a clamping force of 16000 kN.

Overview

brand: Krauss Maffei
year: 1997
MODEL: 1600-14700 MC
production hours: 130000
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 1600-14700 MC

Injection Unit

Screw diameter: 130 mm
Shot weight: 5495 g
Stroke volume: 7632 cm3 CM³
Plasticizing rate max.: 176 g/sec

Clamping unit

Clamping force: 16000 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping plates: 2. 510 x 2. 120 mm
- - Noozle radius: r 35 mm
- - Dosing path: 567 mm
- - Min. Tool installation height: 900 mm
- - Max. Installation height: 1. 600 mm
- - Reverse flow lock: bullet
- - Max. Distance: 3. 400 mm
- - Lights spar distance: 1. 800 / 1. 400 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
