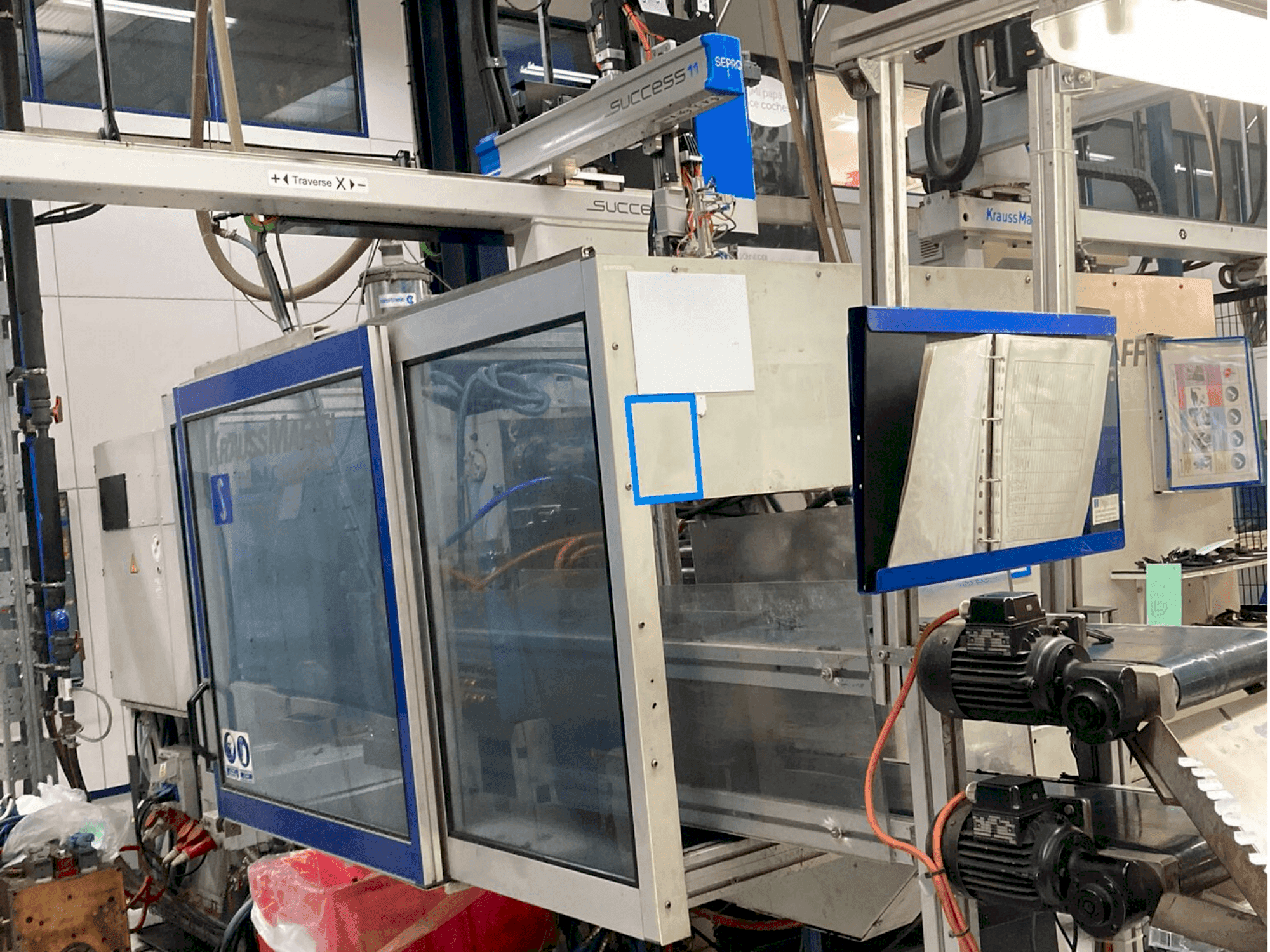

- Krauss-Maffei 150-700 C2 Injection moulding machine
This Krauss-Maffei 150-700 C2 Injection moulding machine was manufactured in the year 2003 in Germany. It is equipped with a clamping force of 1500 kN, a SP 700 injection unit with a screw diameter of 50 mm. Shot weight for PS is at 343g. See video gallery for more impressions. The injection moulding machine has 76901 cycle hours and 90924 machine on hours.
Overview
- brand: Krauss Maffei
- year: 2003
- MODEL: 150-700 C2
- production hours: 76901
- application type: Injection Moulding
- Location: Spain
- machine type: Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei 150-700 C2
General Data
- Measurements width: 4660 MM
- Measurements depth: 1510 MM
- Measurements height: 2190 MM
- Machine weight: 7690 kg
Injection Unit
- Screw diameter: 50 mm
- Shot weight: 343 (PS)
- Stroke volume: 377 cm3 CM³
- Injection pressure: 1892 bar
Clamping unit
- Clamping force: 1500 kN
- Opening stroke: 600
- Distance between bars: 900
- Mould height min: 300 mm
Additional Information
- - L/D ratio 20
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
