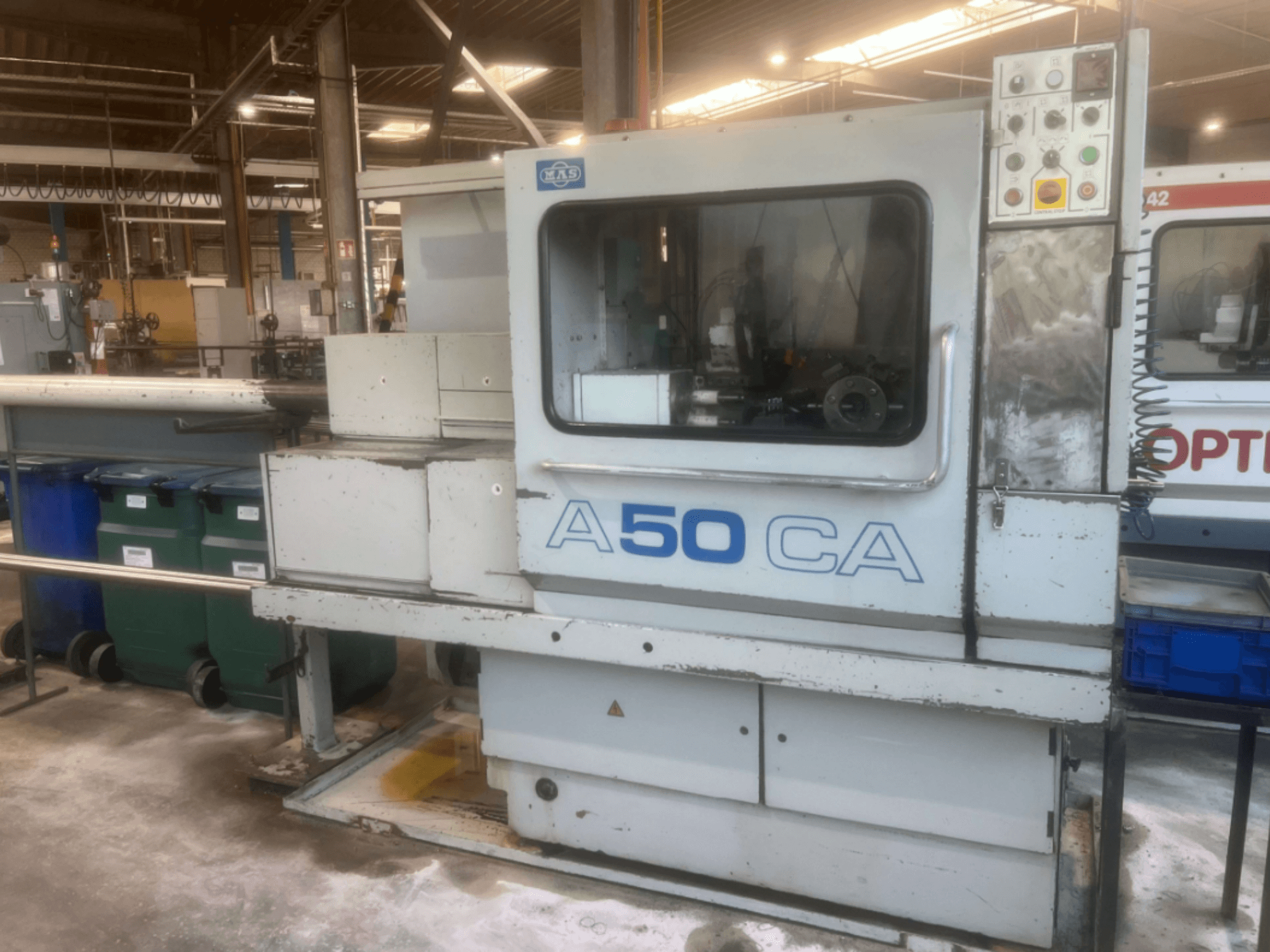

Horizontal turning machine manufactured in 1994. This KOVOSVIT MAS OPTIMAT A50CA features a robust design with a machine weight of 2490 kg. It includes essential equipment such as a bar feeder guide channel system and a tool turret assembly. If you are looking to get high-quality turning capabilities, consider the KOVOSVIT MAS OPTIMAT A50CA machine we have for sale. Contact us for further details.
Overview
- brand: KOVOSVIT MAS
- year: 1994
- MODEL: OPTIMAT A50CA
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - KOVOSVIT MAS OPTIMAT A50CA
Dimensions
- Machine Weight: 2490 kg
Movement
- Number of Axes: 2
- X-axis Travel: 220 mm
- Z-axis Travel: 500 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Speed: 2244 RPM
- Tool Stations: 6
Additional Information
- Main Voltage: 3 x 380 V
- Current: 25 A
- Frequency: 50 Hz
- Control Voltage: 24 V DC / 110 V AC
- Enclosure Protection Rating: IP 54 / IP 20
- Technical Standard: ČSN 33 2200
- Control: Curve
- Spindle diameter: 52 (60) mm
- Spindle speed: 68 – 2,244
- Number of tools: 4 side-cutting slides
- 6 tool stations on the turret
- Included Equipment: Bar feeder guide channel system, coolant piping hoses, work area enclosure guarding with viewing window, tool turret assembly
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
