➤ Used KOVOSVIT MAS OPTIMAT A42 For Sale | gindumac.com

Show in original language

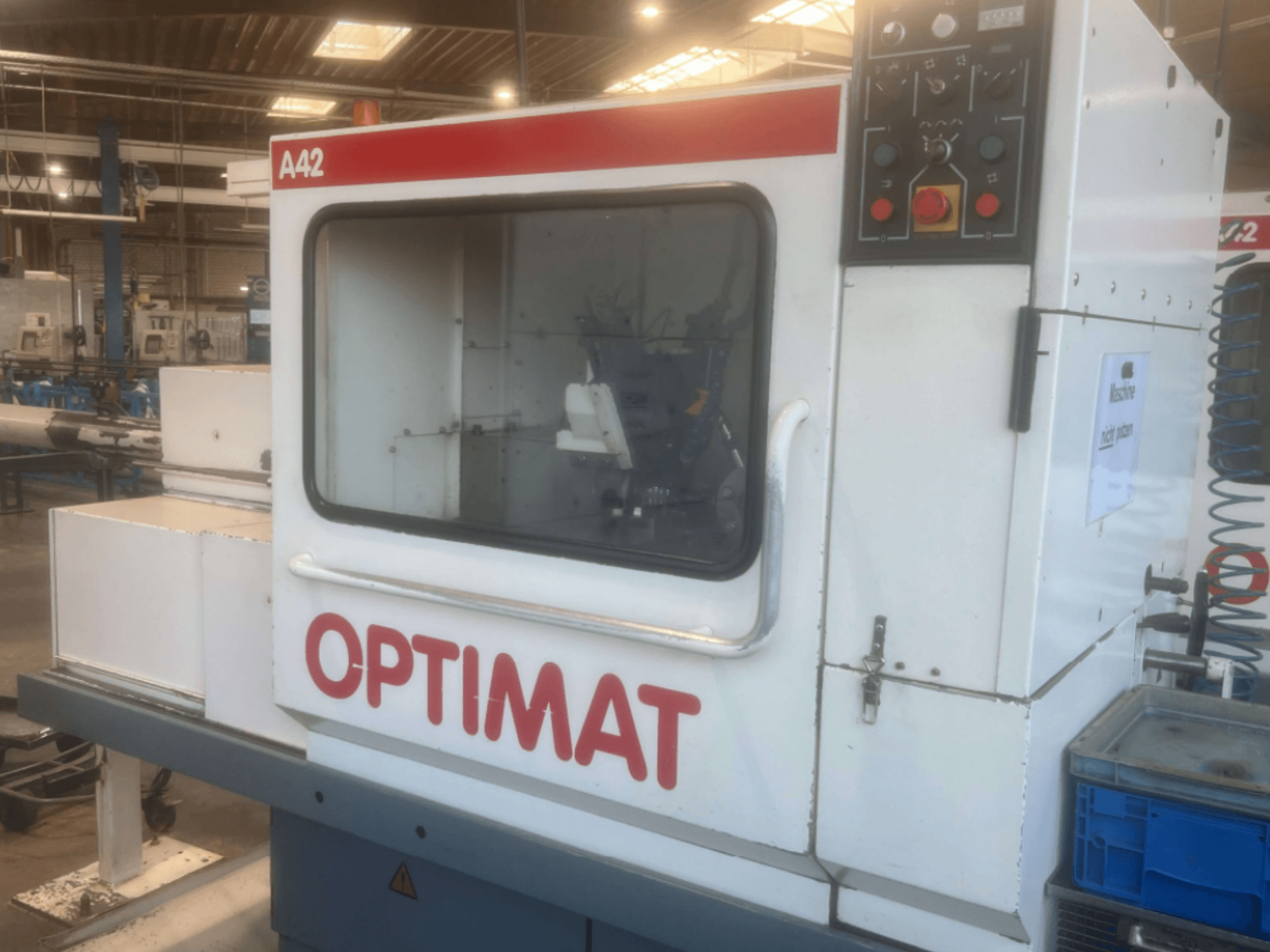

Horizontal turning machine manufactured in 2005. This KOVOSVIT MAS OPTIMAT A42 features a machine weight of 2500 kg and a total power consumption of 12 kVA. With 2 units available, if you are looking to get high-quality turning capabilities, consider the KOVOSVIT MAS OPTIMAT A42 machine we have for sale. Contact us for further details.

Overview

brand: KOVOSVIT MAS
year: 2005
MODEL: OPTIMAT A42
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - KOVOSVIT MAS OPTIMAT A42

Dimensions

Machine Weight: 2500 kg

Movement

Number of Axes: 2
X-axis Travel: 45 mm
Z-axis Travel: 90 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 2818 RPM
Tool Stations: 6

Additional Information

- Main Voltage: 3x 400 V

- Frequency: 50 Hz

- Current: 25 A

- Total Power Consumption: 12 kVA

- Control Voltage (AC): 110 V

- Control Voltage (DC): 24 V

- Lighting: 230 V / 2x 20 W

- Control: Curve

- Spindle diameter: 42 (50) mm

- Spindle speed: 85 – 2,818

- Number of tools: 4 side-cutting slides

- 6 tool stations on the turret

- Wiring Diagram Reference: SCH 338 / 40004 - 34

- 2 units available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
