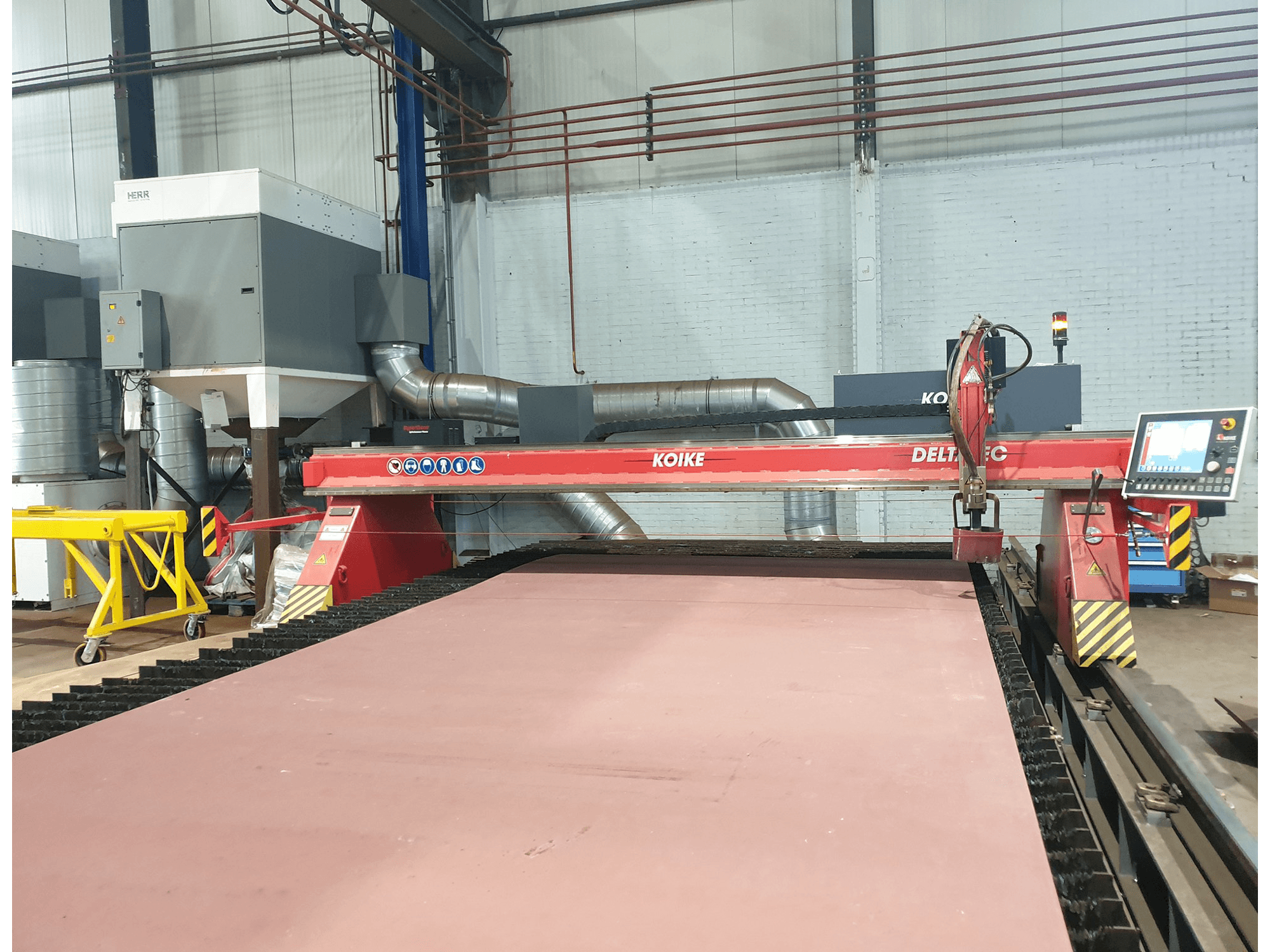

Front view of KOIKE DELTATEC 4000 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOIKE DELTATEC 4000

Photo Gallery

KOIKE - DELTATEC 4000NL-PLA-KOI-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

This KOIKE DELTATEC 4000 Plasma Cutting Machine was made in 2017 in The Netherlands and counts with only 1600 production hours. This highly accurate machine is perfect for precision thermal cutting in heavy duty production environments. It incorporates an AC servo axis which provides excellent dynamic properties at high countering, with positioning speeds per axis up to 24 m/min. It presents perfect conditions, as it has been inspected by KOIKE itself.

Overview

brand: KOIKE
year: 2017
MODEL: DELTATEC 4000
production hours: 1600
application type: Cutting
Location: Netherlands
machine type: Plasma Cutting Machine
availability: Sold

Technical Information - KOIKE DELTATEC 4000

General Data

Measurements width: 6000 mm
Measurements depth: 34000 mm
Measurements height: 1500 mm
Machine weight: 21000 kg

Movement

X-AXIS Movement: 31000 mm
Y-AXIS Movement: 4200 mm
Z-AXIS Movement: 300 mm

Max Material thickness

Steel: 32 mm
Stainless steel: 26 mm

Media

Main electronic connection: 230 V
Power consumption: 2 kVA

Additional Information

Machine history

Material type: Steel
Material thickness: 25 mm
End product: Sheet metals for ships
Industries: Industry: maritime

Machine Benefits

Technical Machine Benefits:
- - Highly accurate gantry machine for precision thermal cutting in heavy duty production environments
- - Rigid and dinamic machine
- - Ac servo axis provide excellent dynamic properties at high countering with positioning speeds per axis up to 24 m/min
Qualitative Machine Benefits:
- - Low usage. Perfect conditions.
- - Inspected by koike.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
