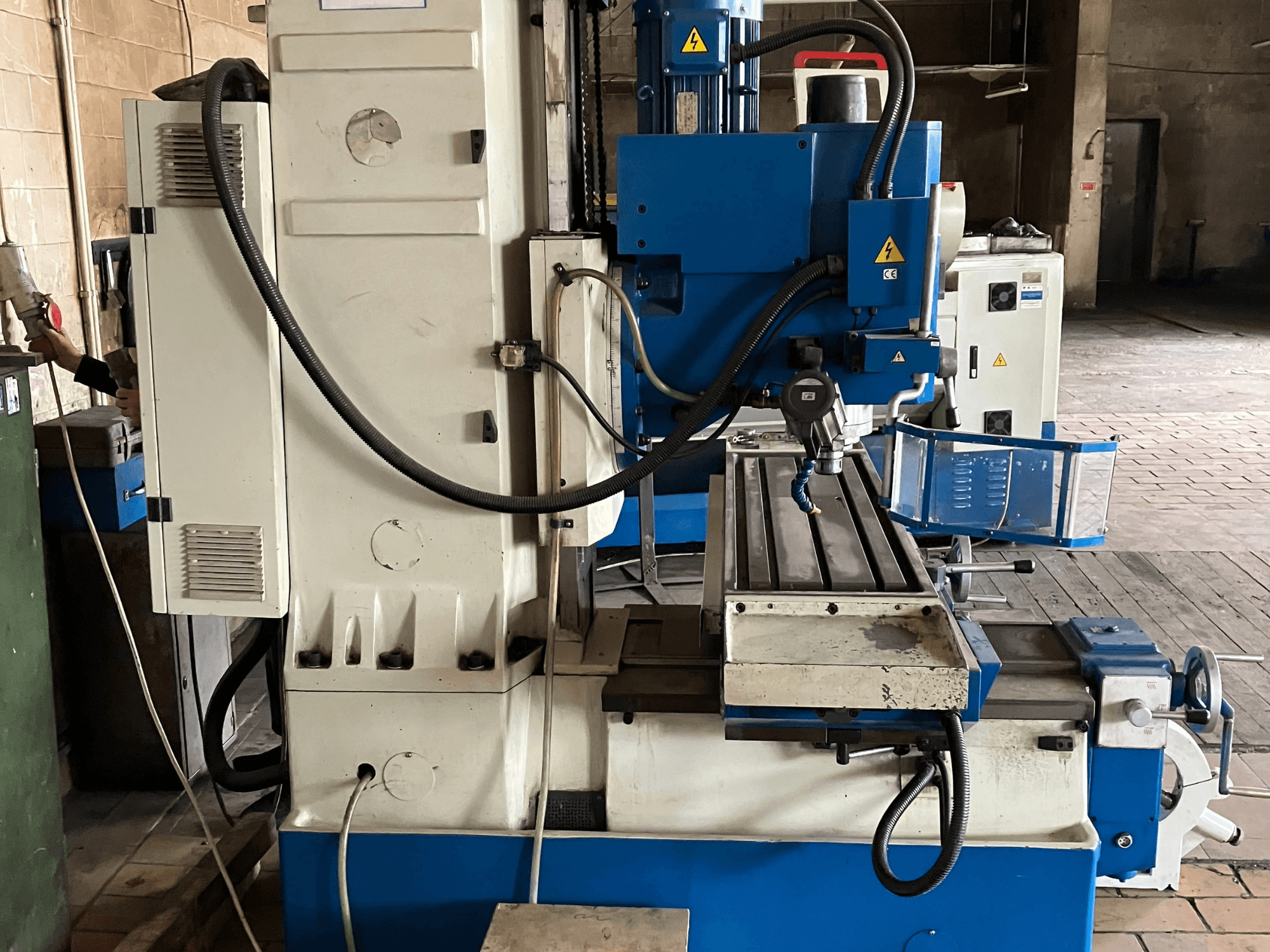

This 3-axis KNUTH KB 1400 was manufactured in 2018. It features a travel of 950 mm on the X-axis, 400 mm on the Y-axis, and 500 mm on the Z-axis. The machine is equipped with a spindle speed range of 30 to 1800 rpm and a table setup area of 1400 mm x 400 mm. If you are looking to get high-quality milling capabilities, consider the KNUTH KB 1400 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: KNUTH
  • year: 2018
  • MODEL: KB 1400
  • application type: Milling
  • Location: Romania
  • machine type: Vertical Machining Centre

Technical Information - KNUTH KB 1400

Dimensions

  • Machine Height: 2120 mm
  • Machine Length: 2290 mm
  • Machine Weight: 3660 kg
  • Machine Width: 1770 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 950 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Speed: 1800 RPM
  • Taper Size: SK 50

Additional Information

  • Feed

    • Feed speed X-axis: 18–627 mm/min

    • Feed speed Y-axis: 18–627 mm/min

    • Feed speed Z-axis: 18–627 mm/min

  • Rapid feed

    • Rapid feed X-axis: 1670 mm/min

    • Rapid feed Y-axis: 1670 mm/min

    • Rapid feed Z-axis: 1670 mm/min

  • Vertical milling head

    • Throat: 510 mm

    • Spindle speed (vertical): 30–1800 1/min (rpm)

    • Quill stroke: 105 mm

    • Head swivel range: ±30°

  • Working area

    • Spindle axis-to-table surface distance: 150–650 mm

    • Table set-up area: 1400 × 400 mm

    • Number of T-slots: 3

    • T-slot width: 18 mm

    • T-slot spacing: 100 mm

    • Speed height-adjustment (max.): 1670 mm/min

  • Coolant pump flow rate: 12 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
