KNUTH ECOMILL 450

Show in original language

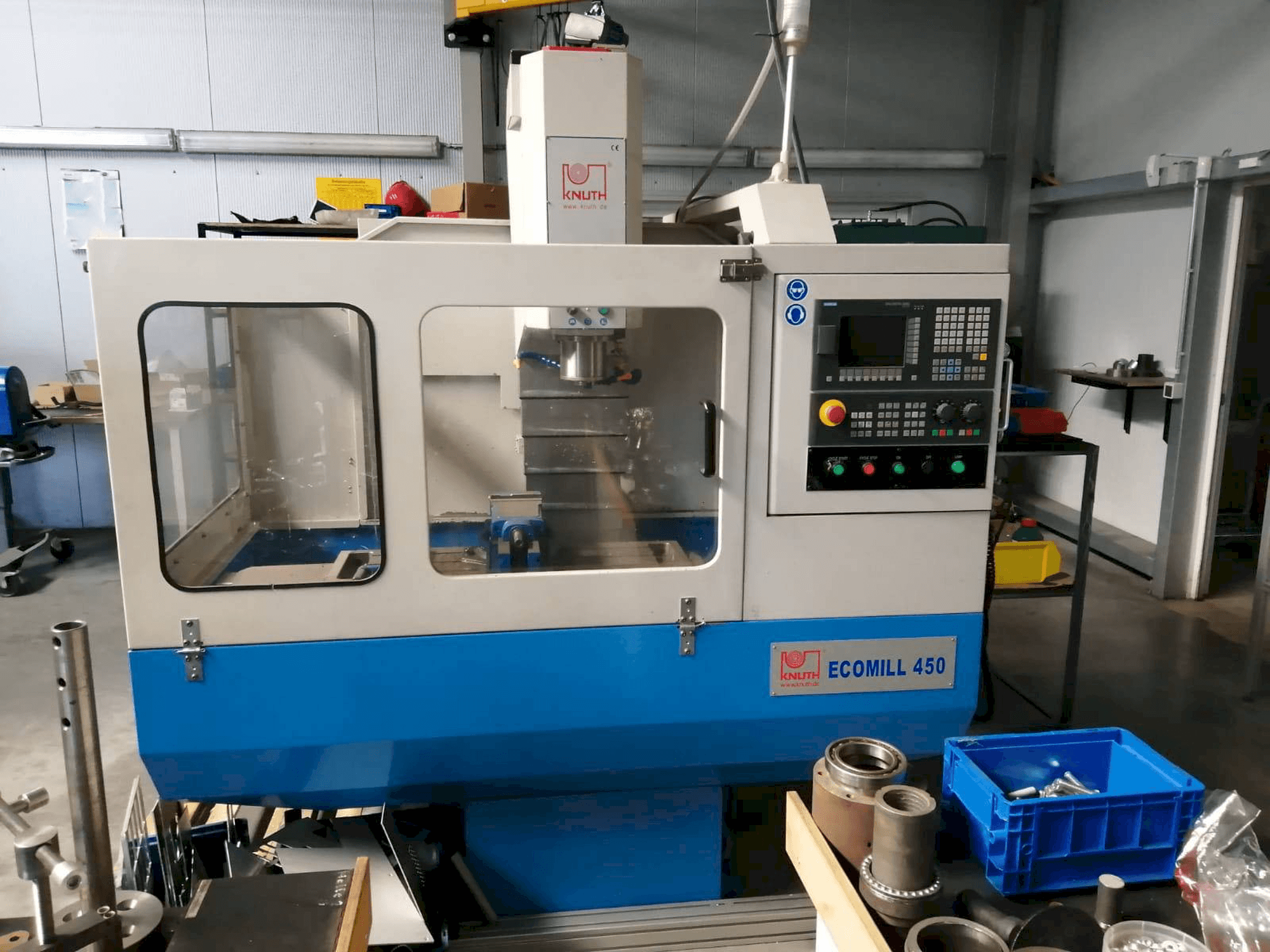

This KNUTH ECOMILL 450 Milling Machine was made in 2014 in Germany. It is operated through a SIEMENS 808D control unit. This 3 axis machine incorporates a spindle speed range 100 - 8000 rpm.

Overview

brand: KNUTH
year: 2014
MODEL: ECOMILL 450
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - KNUTH ECOMILL 450

Control Unit

Control Brand: SIEMENS
Control Model: 808D

Dimensions

Machine Depth: 1690 mm
Machine Height: 2100 mm
Machine Weight: 1900 kg
Table Length: 920 mm
Table Load: 250 kg
Table Width: 280 mm

Movement

Number of Axes: 3
X-axis Travel: 450 mm
Y-axis Travel: 300 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 7 kW
Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

T grooves in the table 3 pieces
T-groove distance 85 mm
Spindle front table plane distance 110 - 510 mm
X/y high speed 10000 mm/min; z high speed 8000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
