Kitamura Spark Mycenter 3XiF

Photo Gallery

SOLD

Kitamura - Spark Mycenter 3XiF

2005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kitamura Spark Mycenter 3XiF

Show in original language

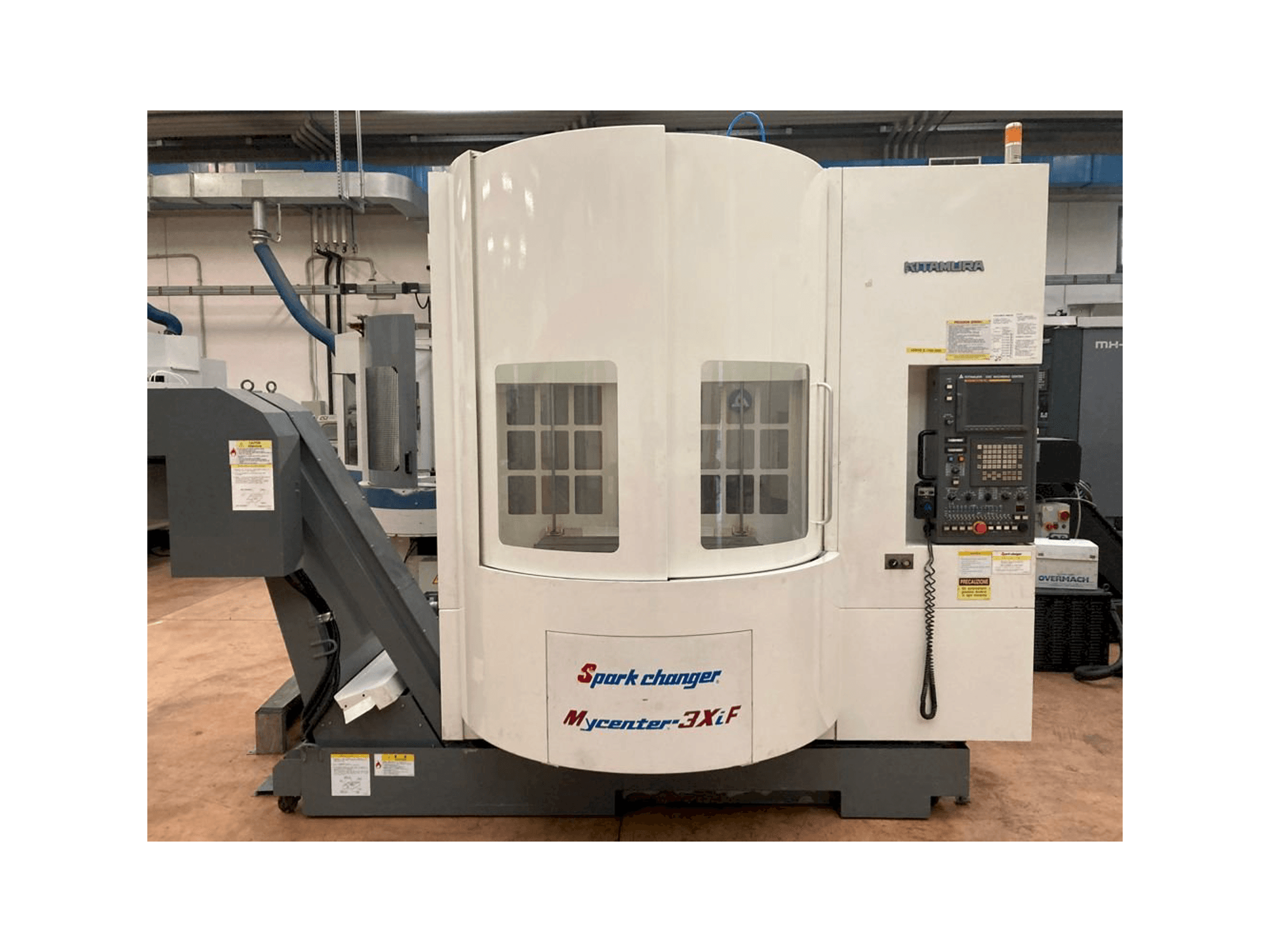

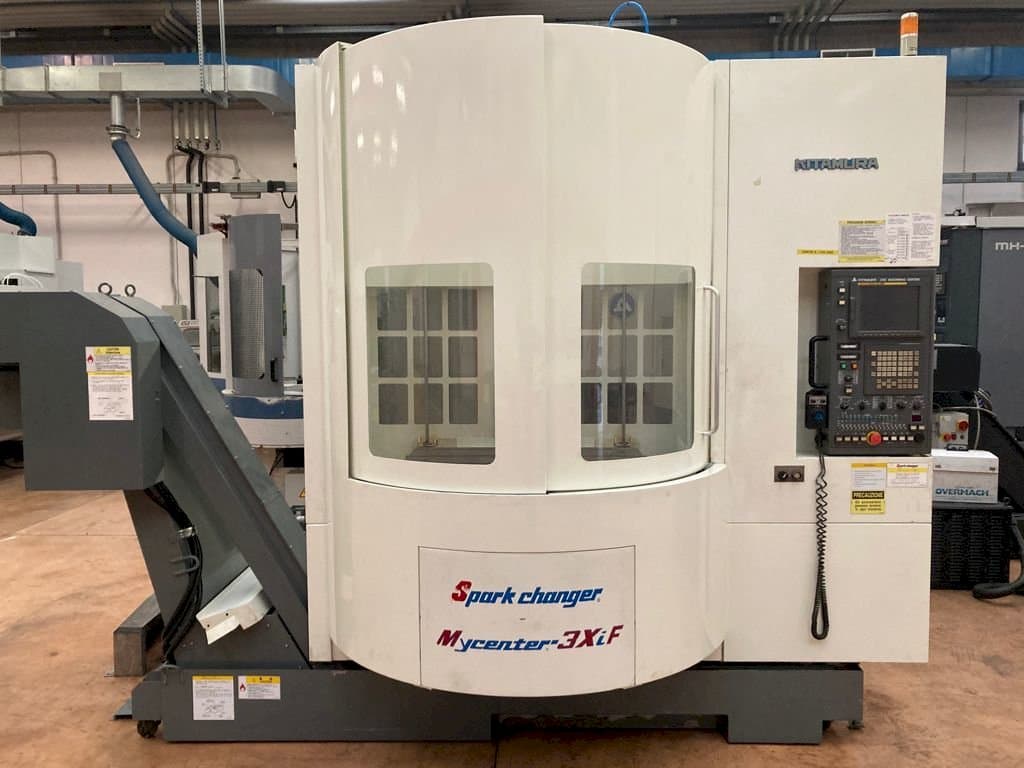

This Kitamura Spark Mycenter 3XiF Vertical Machining Center was manufactered in the year 2005. This 3 axis machine is operated through a Fanuc Series 16i-MB control unit. This machine can work with a spindle speed range up to 20000 rpm.

Overview

brand: Kitamura
year: 2005
MODEL: Spark Mycenter 3XiF
application type: Milling
Location: Italy
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: IT-MIL-KIT-2005-00001

Technical Information

Control Unit

Brand: Fanuc
Model: Series 16i-MB

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 455 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 410 mm
Outer width: 864 mm
Table load: 200 Kg

Tools

Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: 30

Extra information

- Options: Chip conveyor, Pallet changer, Electronic handwheel, internal coolant supply, high pressure pump predisposition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
