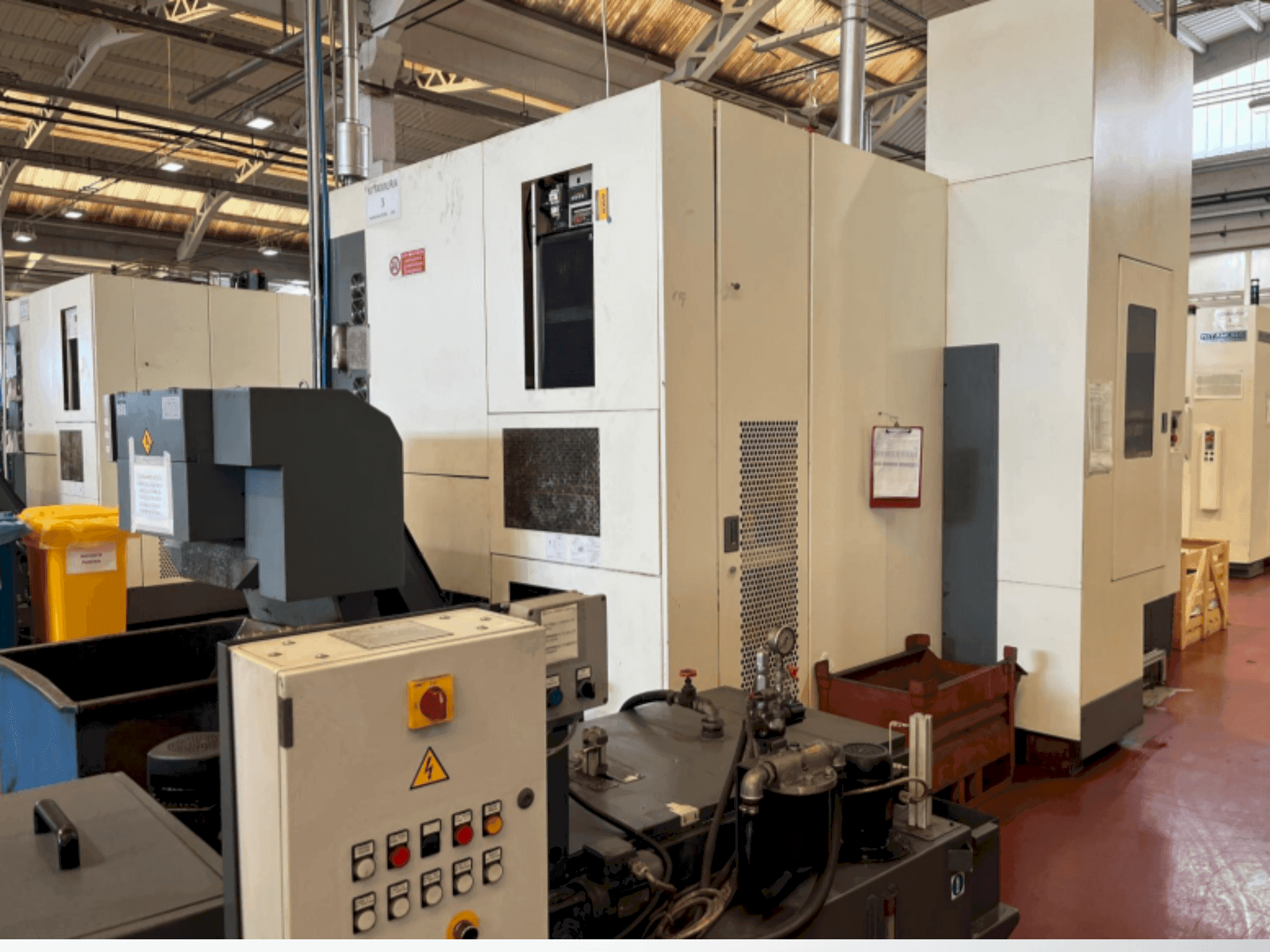

Kitamura Mycenter-HX500iTGA

Photo Gallery

Kitamura - Mycenter-HX500iTGAIT-MIL-KIT-2011-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Kitamura Mycenter-HX500iTGA For Sale | gindumac.com

Show in original language

This 4-axis Kitamura Mycenter-HX500iTGA was manufactured in 2011. It features a robust 500x500mm table, capable of handling workpieces up to 800x1000mm and 800kg. With X/Y/Z travels of 870mm, 1020mm, and 950mm respectively, and a high-pressure coolant system, it's ideal for demanding machining tasks. The machine includes a 50-tool storage capacity, automatic pallet changer, and is driven by a powerful 26kW spindle motor. Contact us for more information about this machine.

Overview

brand: Kitamura
year: 2011
MODEL: Mycenter-HX500iTGA
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Kitamura Mycenter-HX500iTGA

Control Unit

Control Brand: FANUC
Control Model: Series 16i-MB

Dimensions

Machine Weight: 17000 kg
Table Load: 800 kg

Movement

Number of Axes: 4
X-axis Travel: 870 mm
Y-axis Travel: 1020 mm
Z-axis Travel: 950 mm

Technical Specification

Max. Tool Weight: 25 kg
Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Workpiece size (diameter × height): Ø800×1000mm
B axis (rotary table): 360000 positions (0. 001° indexing)
Tool storage capacity: 50 tools (options for 105, 150, 200, 300 tools)
Adjacent pockets full; Ø210×400mm, adjacent pockets empty
Tool change time (tool to tool): 1. 5 sec //tool change time (cut to cut): 5. 5 sec
Pull stud: jis b 6339 / iso
Drive method: gear drive 2+2
Power requirement: ac 200v/3-phase, 55kva
Air requirement: 410 l/min
Coolant through spindle: high pressure 50 bar

Extra Information

CNC: FANUC SERIES 16i MB Glass Scales: X/Y/Z axes and B (rotary) axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
