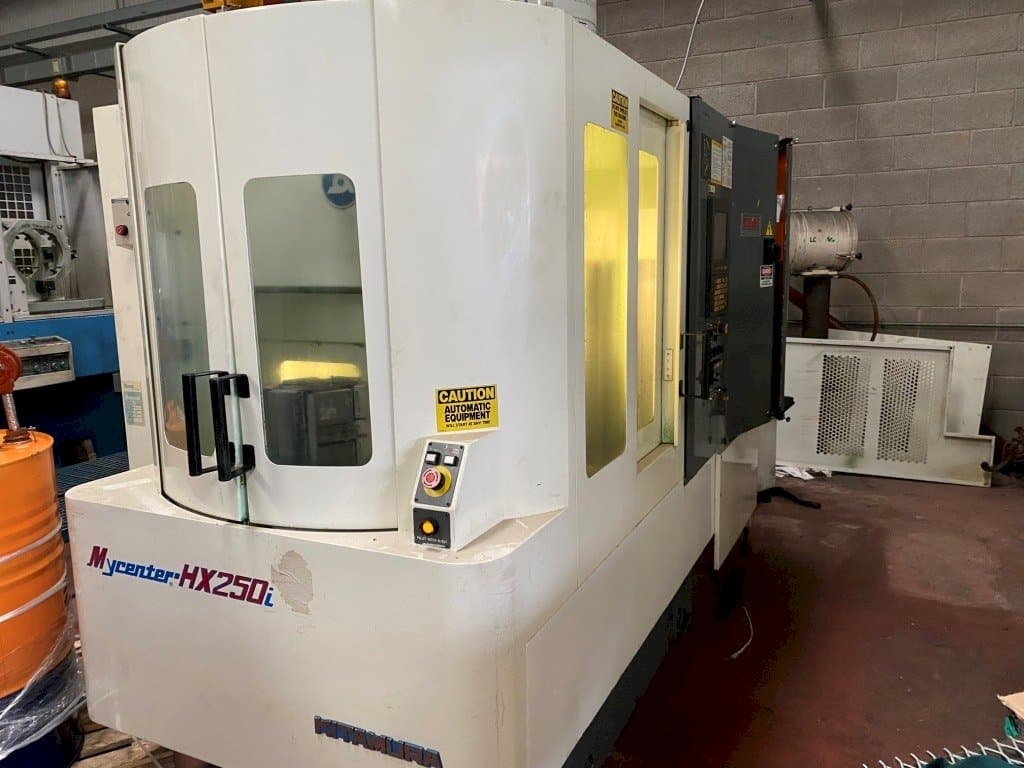

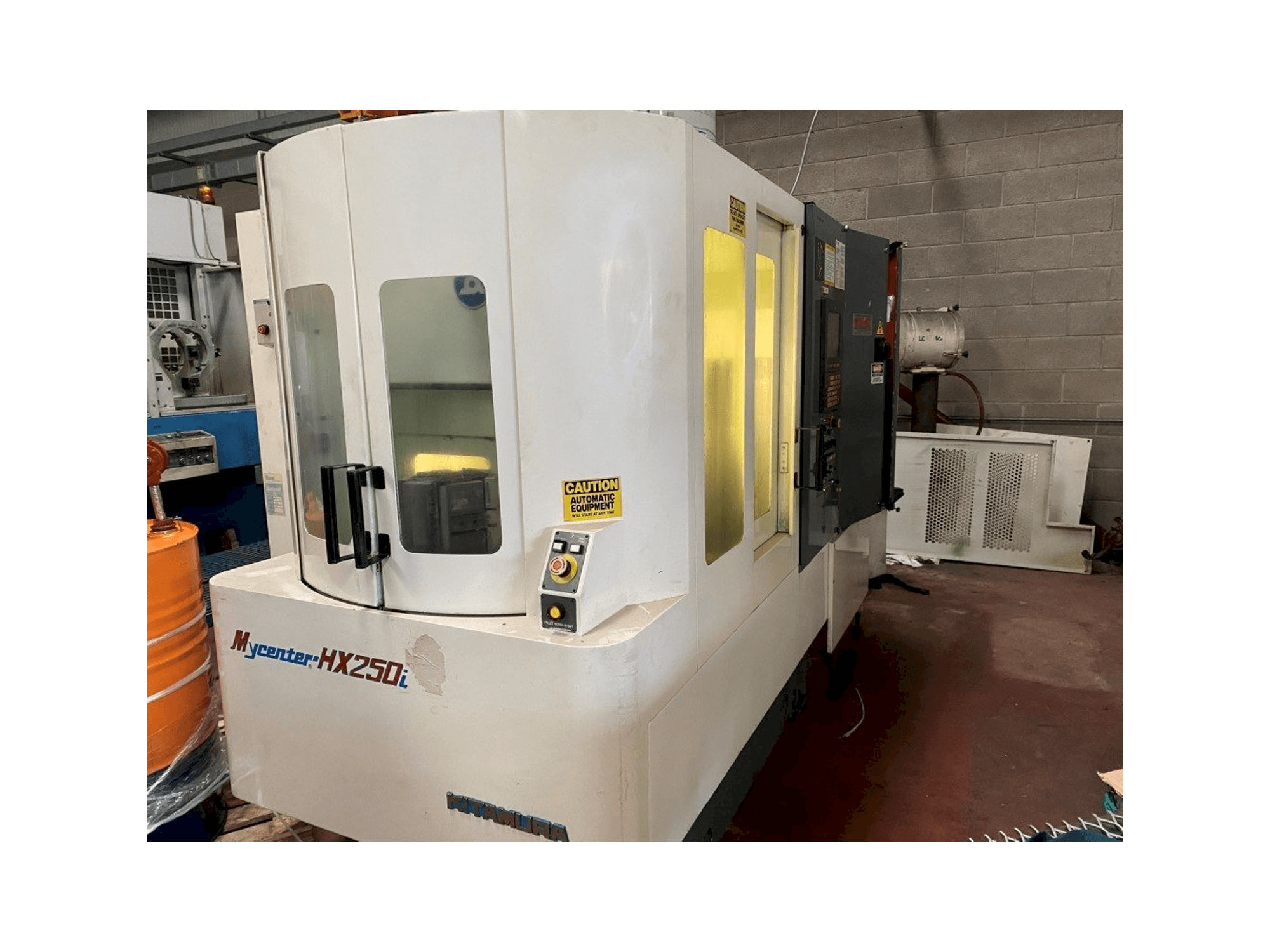

Front view of Kitamura Mycenter HX250i machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Kitamura Mycenter HX250i

Photo Gallery

Kitamura - Mycenter HX250iIE-MIL-KIT-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Kitamura Mycenter HX250i Horizontal Machining Center

Show in original language

This Kitamura Mycenter HX250i Horizontal Machining Center was made in Japan in 2002. This machine incorporates a table of 254x254 mm and can perform with a spindle speed up to 15000 rpm.

Overview

brand: Kitamura
year: 2002
MODEL: Mycenter HX250i
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre

Technical Information - Kitamura Mycenter HX250i

Dimensions

Machine Depth: 2950 mm
Machine Height: 2470 mm
Machine Weight: 4500 kg
Table Length: 254 mm
Table Width: 254 mm

Movement

B-axis Max: 360°
B-axis Min: 0.001°
X-axis Travel: 305 mm
Y-axis Travel: 305 mm
Z-axis Travel: 330 mm

Technical Specification

Max. Tool Weight: 2 kg
Number of Tools: 40
Spindle Speed: 15000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Filtermist FX2000
2 x Pallets

Machine Benefits

Qualitative Machine Benefits

Well maintained machine

Technical Machine Benefits

Compact footprint

Machine History

End product

Machined components

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
