➤ Used Kent KOS-510V.MA2 For Sale | gindumac.com

Show in original language

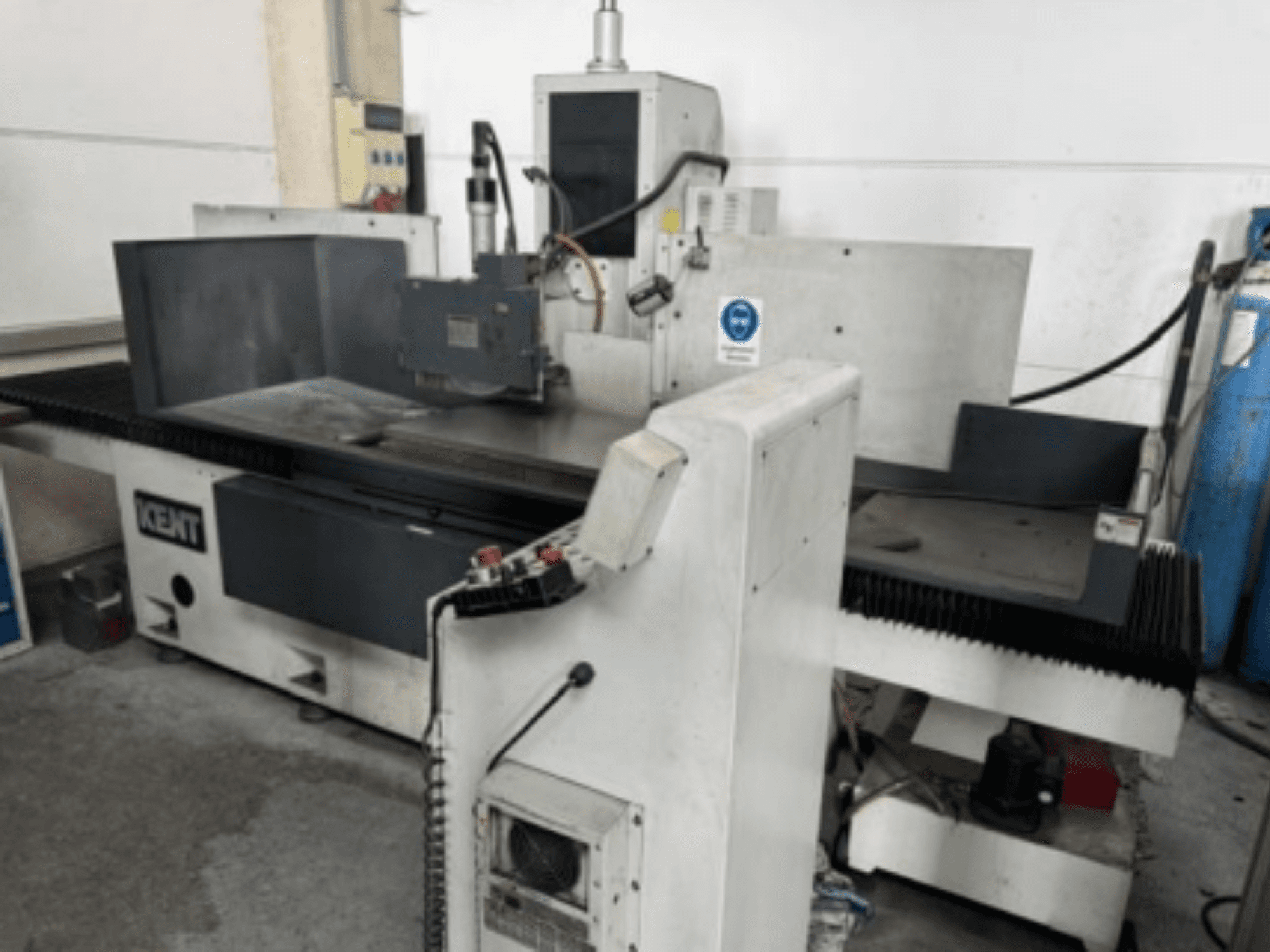

This 3-axis Kent KOS-510V.MA2 surface grinding machine was manufactured in 2014. It features a table working area of 1000 x 500 mm and a maximum table load of 1000 kg. The grinding spindle speed reaches 1450 rpm, and the machine includes a servo-controlled automatic downfeed for high-precision microfeed. If you are looking to get high-quality grinding capabilities, consider the Kent KOS-510V.MA2 machine we have for sale. Contact us for further details.

Overview

brand: Kent
year: 2014
MODEL: KOS-510V.MA2
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine

Technical Information - Kent KOS-510V.MA2

Dimensions

Machine Height: 2400 mm
Machine Length: 4445 mm
Machine Weight: 58000 kg
Machine Width: 2100 mm
Table Length: 500 mm
Table Load: 1000 kg
Table Width: 1000 mm

Movement

Number of Axes: 3
X-axis Travel: 1130 mm

Additional Information

- Grinding Length: 1000 mm

- Grinding Width: 500 mm

- Maximum Distance Table Surface to Spindle Center: 550 - 590 mm

- Maximum Table Load (including magnetic clamping plate): 1000 kg

- Grinding Wheel Dimensions: 355 x 38 x 127 mm (or 355 x 40 x 127 mm)

- Grinding Spindle Speed: 1450 rpm

- Main Spindle Motor Power: 5.5 kW

- Vertical Axis (Y/Z): Servo-controlled automatic downfeed with high-precision microfeed (resolution up to 0.001 mm)

- Cross Travel / Feed: Driven via ball screw with electronic handwheel (MPG knob) / programmable reversing points

- Table Travel: Hydraulic longitudinally driven with continuously adjustable table speed (approx. 5–25 m/min)

- Guide System: Flat guide ways with automatic central lubrication

- Optional Equipment / Accessories: External mobile control console panel, table splash guards and rear guard, electromagnetic clamping table, separate hydraulic unit, balancing arbor/device, level alignment screws

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
