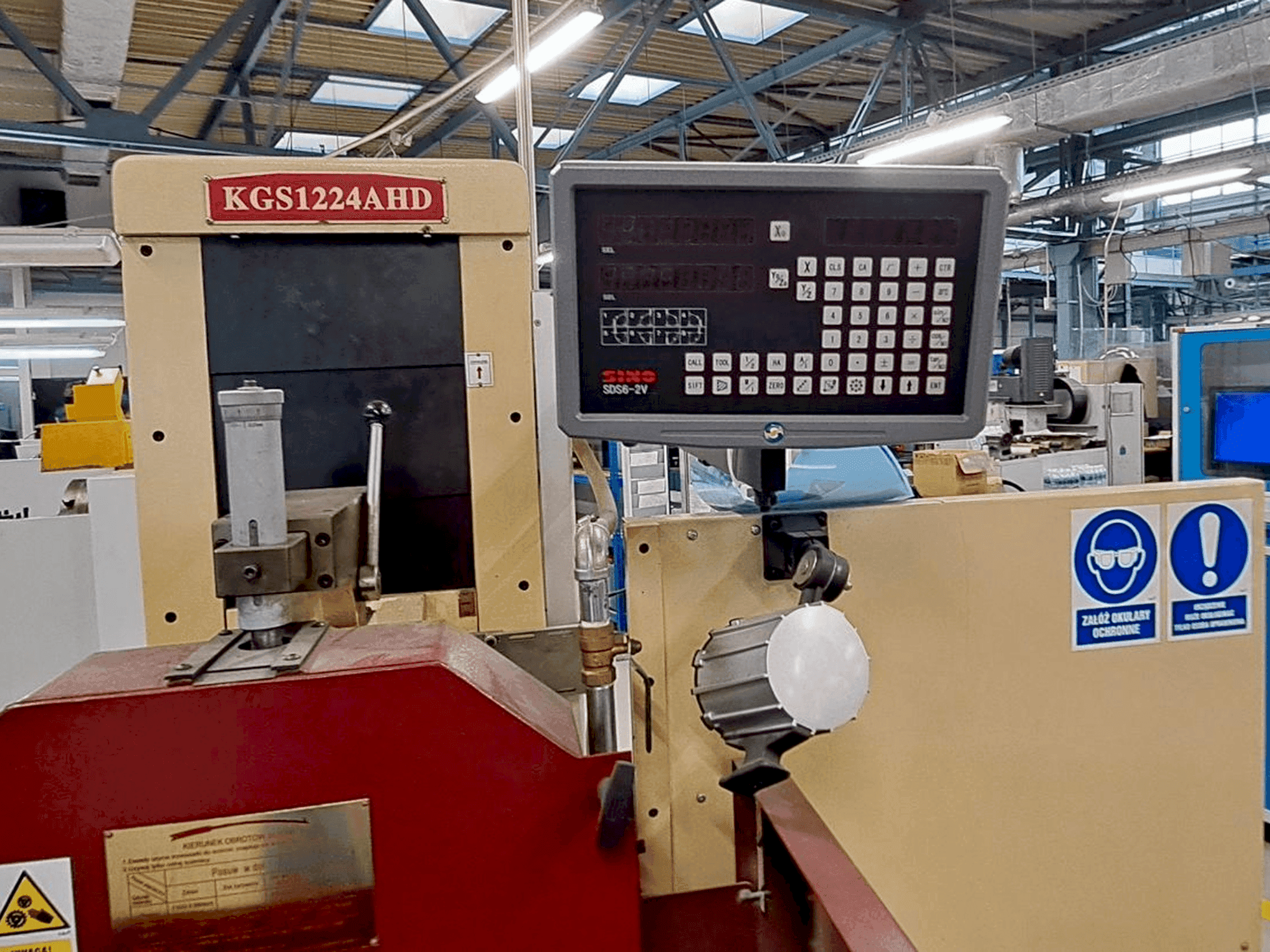

Front view of Kent KGS 1224 AHD  machine

Kent - KGS 1224 AHDPL-GRI-KEN-2014-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Kent KGS 1224 AHD surface grinding machine was manufactured in 2014. It features a table size of 300 x 600 mm, with a maximum load capacity of 420 kg. The grinding wheel size is 355 x 40 x 127 mm, and it operates with a main motor power of 4 kW. Ideal for precision grinding, the Kent KGS 1224 AHD machine we have for sale is robust and efficient. Contact us for further details regarding this surface grinding machine.

Overview

  • brand: Kent
  • year: 2014
  • MODEL: KGS 1224 AHD
  • application type: Grinding
  • Location: Poland
  • machine type: Surface Grinding Machine
  • availability: Sold

Technical Information - Kent KGS 1224 AHD

General Data

  • Measurements width: 2500 mm
  • Measurements depth: 2600 mm
  • Machine weight: 1910 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 1450 rpm 1/MIN
  • Spindle motor power: 4 kW

Movement

  • X-AXIS Movement: 660 mm
  • Y-AXIS Movement: 370 mm

    Additional equipment

    • - Table size: 300 x 600 mm
    • - Distance table-spindle: 540 mm
    • - Maximum table load: 420 kg
    • - Table speed: 5 - 25 m/min
    • - Rapid traverse speed: 790 mm/min
    • - Grinding wheel size: 355 x 40 x 127 mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Floor space occupied: 2600 x 2500 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
