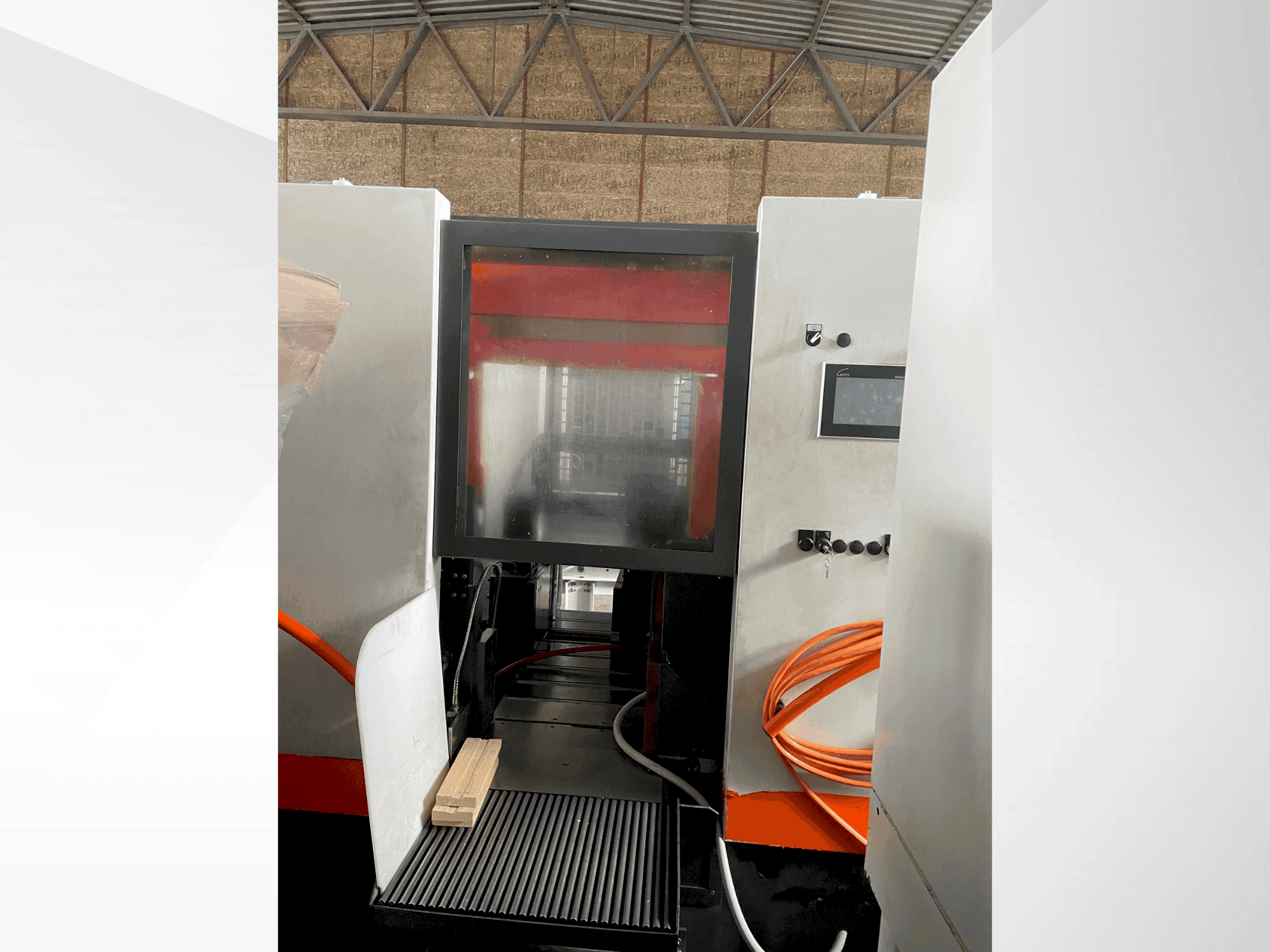

Front view of KASTO WIN A4.6  machine

KASTO WIN A4.6

KASTO - WIN A4.6

2019

Rs. 4,973,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This KASTO WIN A4.6 sawing machine was manufactured in 2019. With a cutting range of 460 mm, it's suitable for various material sizes, offering flexible operation. The machine has a hydraulic material clamping system and a saw motor with variable cutting speed ranging from 12 to 150 m/min. Its dimensions are 1650 mm in length, 2900 mm in width, and 2030 mm in height, with a weight of 3450 kg. Consider purchasing this KASTOWIN A4.6 for enhanced sawing capabilities. Contact us for further details regarding this sawing machine.

Overview

  • brand: KASTO
  • year: 2019
  • MODEL: WIN A4.6
  • production hours: 4900
  • application type: Sawing
  • Location: Austria
  • machine type: Sawing machines
  • availability: Immediately
  • GINDUMAC ID: AT-SAW-KAS-2019-00001

Technical Information

General Data

  • Measurements width: 2900 MM
  • Measurements depth: 1650 MM
  • Measurements height: 2030 MM
  • Machine weight: 3450 KG

Main drive

  • Main motor power: 4 kw

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Band length & width: 6096 x 54 mm.
      • - Cutting range: 460 mm.
      • - Cutting area: 460 x 460 mm.
      • - Clamping range: 0 - 460 mm.
      • - Smallest cut-off length: 10 mm.
      • - Smallest dimension to be sawn: 10 x 10 mm.
      • - Shortest remaining piece length in automatic mode: 35 mm.
      • - Cutting feed: electrically adjustable via ball screw.
      • - Material clamping: hydraulic.
      • - Saw blade cleaning: self-adjusting chip clearing brush, driven by electric motor.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
