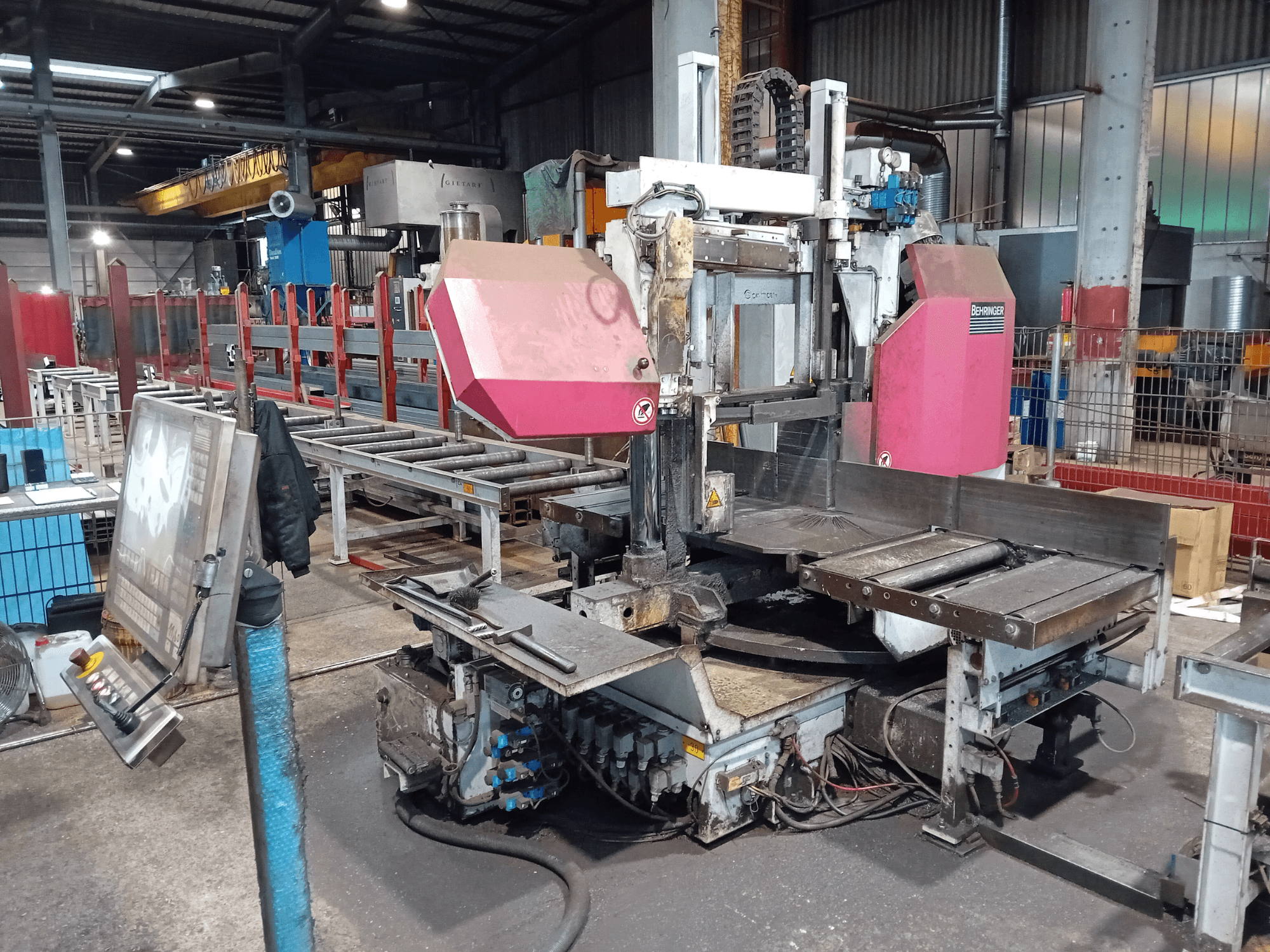

Behringer - HBP 410-723 GDE-SAW-BEH-2014-00001

• Working area (Ø / flat at 90°): 410 mm / 700 mm x 400 mm

• Working area (Ø / flat at 75° left): 410 mm / 660 mm x 400 mm

• Working area (Ø / flat at 60° left): 410 mm / 580 mm x 400 mm

• Working area (Ø / flat at 45° left): 420 mm / 450 mm x 420 mm

• Working area (Ø / flat at 30° left): 300 mm / 300 mm x 300 mm

• Working area (Ø / flat at 75° right): 410 mm / 660 mm x 400 mm

• Working area (Ø / flat at 60° right): 410 mm / 580 mm x 400 mm

• Working area (Ø / flat at 45° right): 380 mm / 450 mm x 380 mm

• Smallest material dimensions (Ø / flat): 20 mm / 20 mm x 20 mm

• Smallest cutting length (90°): approx. 45 mm

• Remaining cutting length, manual (90°): approx. 90 mm

• Cutting speed: 20–140 m/min

• System/belt tensioning pressure: 65 bar

• Connected load: approx. 14 kW

• Voltage: 400 V, 50 Hz

• Control/hydraulic valve voltage: 24 V DC

• Current consumption: approx. 36 A

• Fuse protection: 50 A

• Cable cross-section: min. 16 mm²

• Material support height: 800 mm

Additional equipment

• Automatic feed and discharge

• Chip conveyor (motor power: 0.09 kW)
