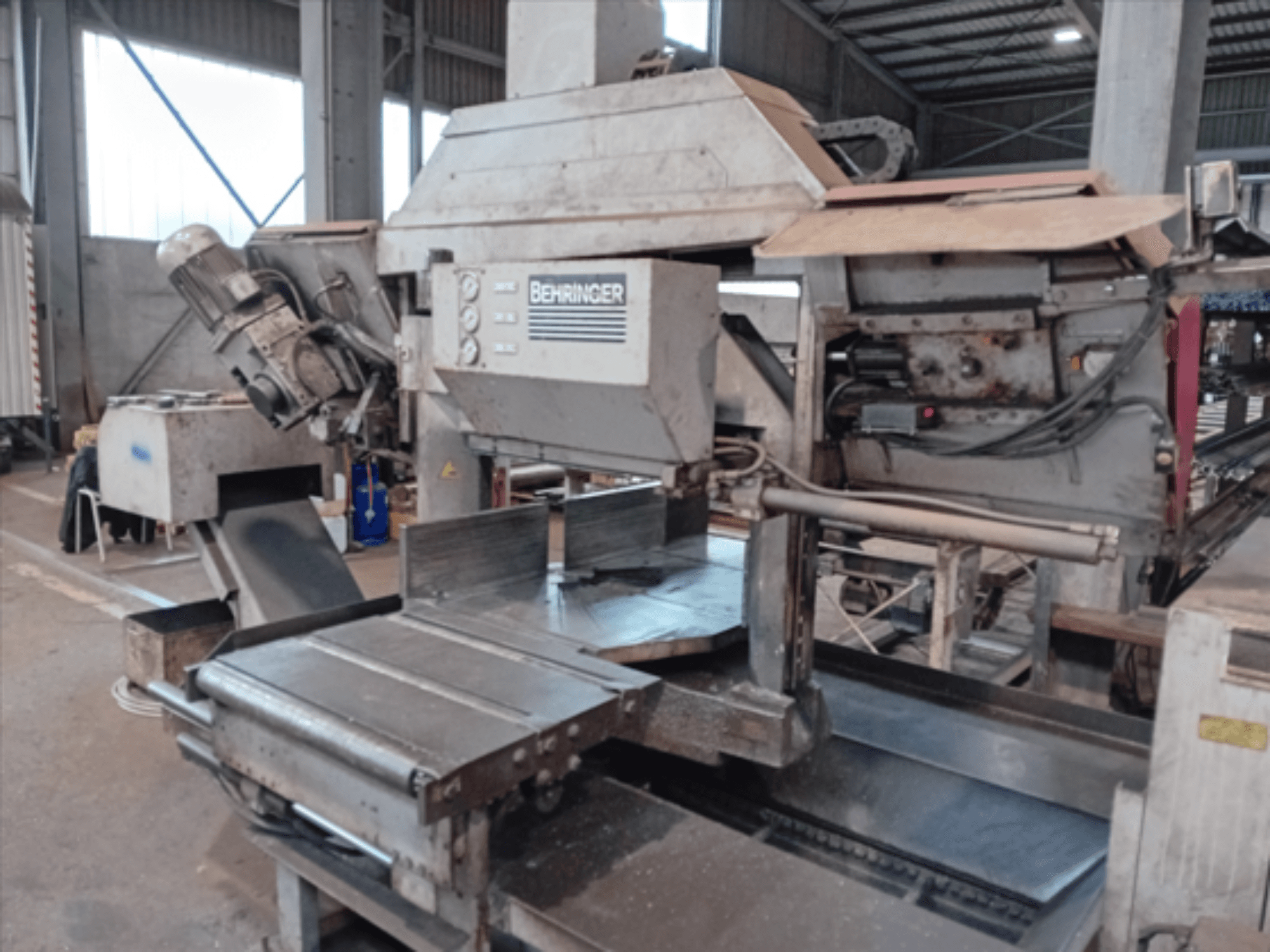

Behringer band saw, front view, features a large blade, motor, and adjustable table, ideal for metal cutting in a workshop.
Behringer band saw, front view, features a large blade, motor, and adjustable table, ideal for metal cutting in a workshop.

Behringer - HBP 420-723 GDE-SAW-BEH-2004-00001

Rs. 1,669,106
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Behringer HBP 420-723 G Metal Band Saw was manufactured in 2004. It features a Silberland B 660 / 15 m powered roller conveyor from 2010 and has operated for approximately 15,800 hours. The saw offers a cutting speed of 10-120 m/min and is powered by a 5.5 kW saw drive motor. Ideal for handling a variety of cutting sizes and angles. Contact us for more information about this machine.

Overview

  • brand: Behringer
  • year: 2004
  • MODEL: HBP 420-723 G
  • production hours: 15800
  • application type: Sawing
  • Location: Germany
  • machine type: Metal Band Saw
  • Available from: 01/06/2026

Technical Information - Behringer HBP 420-723 G

Dimensions

  • Machine Weight: 3000 kg

Additional Information

  • Working area – Ø / flat at 90°: 420 mm / 720 mm x 420 mm

  • Working area – Ø / flat at 75° left: 420 mm / 710 mm x 420 mm

  • Working area – Ø / flat at 60° left: 420 mm / 550 mm x 420 mm

  • Working area – Ø / flat at 45° left: 420 mm / 450 mm x 420 mm

  • Working area – Ø / flat at 30° left: 420 mm / 250 mm x 420 mm

  • Working area – Ø / flat at 75° right: 420 mm / 710 mm x 420 mm

  • Working area – Ø / flat at 60° right: 420 mm / 550 mm x 420 mm

  • Working area – Ø / flat at 45° right: 420 mm / 450 mm x 420 mm

  • Working area – Ø / flat at 30° right: 420 mm / 250 mm x 420 mm

  • Smallest material dimensions – Ø / flat: 10 mm / 10 mm x 10 mm

  • Smallest cutting length (90°): approx. 90 mm

  • Remaining cutting length (manual, 90°): approx. 90 mm

  • Cutting speed: 10–120 m/min

  • System/belt tensioning pressure: 95 bar

  • Connected load: approx. 9 kW

  • Voltage: 400 V, 50 Hz

  • Control/hydraulic valve voltage: 24 V DC

  • Current consumption: approx. 18 A

  • Fuse protection: 35 A

  • Cable cross-section: min. 4 x 6 mm²

  • Material support height: 800 mm

Additional equipment

  • Silberland B 660 powered roller conveyor, 15 m (year of manufacture: 2010)

  • Chip conveyor (0.15 kW motor)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
