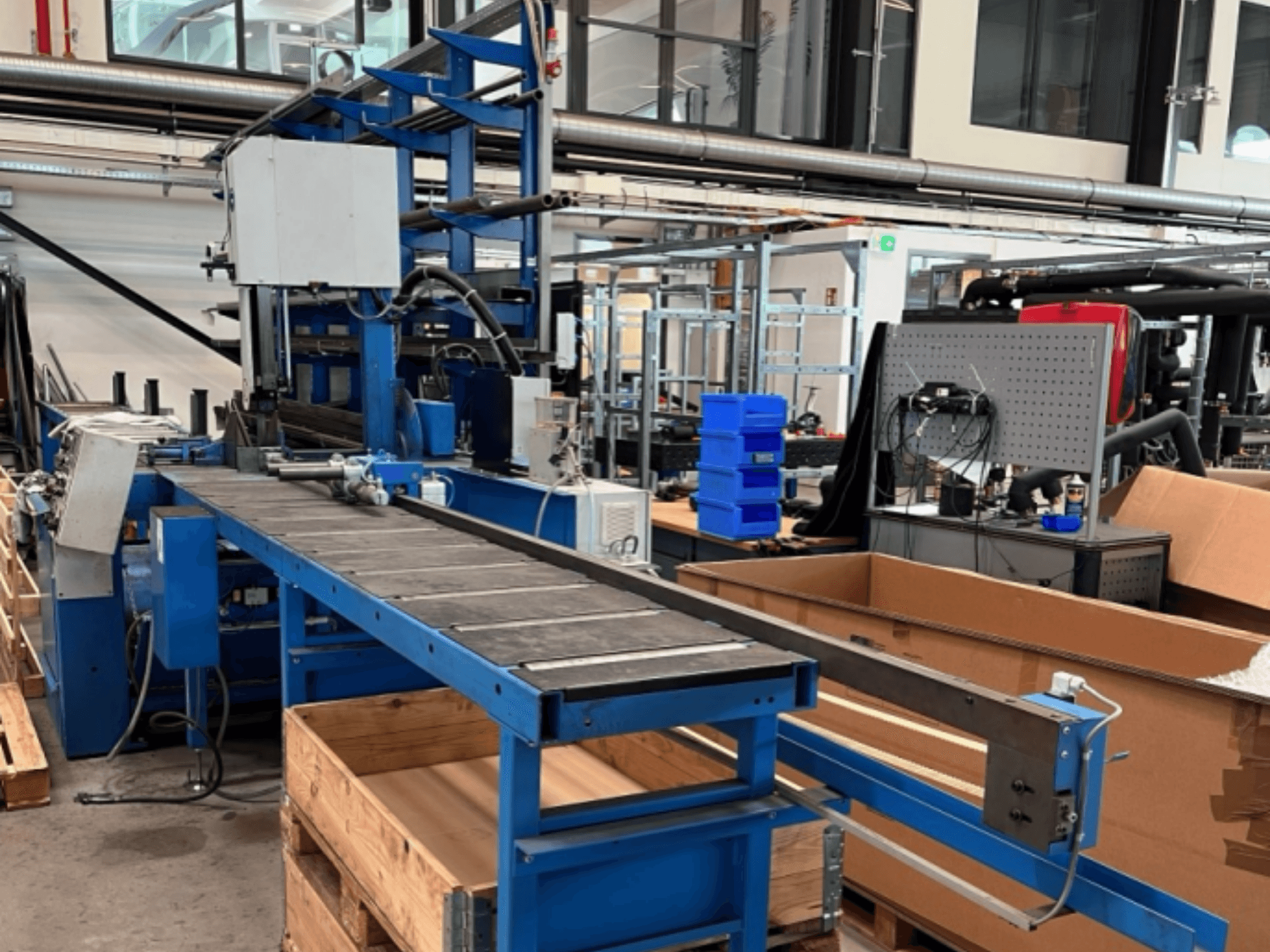

JAESPA - Classic 423 DGHDE-SAW-JAE-2014-00001

- Saw Frame Construction: Heavy steel construction, double-mounted close to the saw band, precisely guided by a hydraulic feed cylinder

- Saw Band Table: Low-vibration grey cast iron with a machined surface and T-slots

- Control System: NC control with 9-inch colour touchscreen for preselection and control of cutting programs (cutting lengths, piece counts, band speed, and angular position)

- Mitre Cuts: Automatic positioning of the saw frame for mitre cuts on both sides between 30° and 90°

- Upper Saw Band Guide: Automatically self-adjusts to the required workpiece height

- Operating Modes: "HAND" for single cuts and "AUTO" for fully automatic series production cuts

- Material Transport: Motorised feed (pliers vice / Zangenspannstock)

- Material Clamping: Hydraulic clamping via short-stroke cylinders on both sides of the saw band

- Saw Band Drive: Infinitely variable control via a frequency-regulated electric motor

- Band Tensioning: Regulated mechanically via disc springs and monitored via manometer

- Saw Band Length: 4570 mm

- Net Weight: Approx. 4000 kg (incl. 3000 mm roller conveyor)

- Dimensions (Required Footprint): 1300 mm x 2540 mm (without roller conveyor)

- Height: 2200 mm

- Additional Equipment: Electrically powered chip brush, generous coolant tank with integrated chip collection container, 3000 mm roller conveyor
