KASSOW ROBOTS - KR1205DE-ROB-KAS-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis KASSOW ROBOTS KR1205 was manufactured in 2020. It features a reach of 1200 mm and a payload capacity of 5 kg, making it suitable for various applications. The robot arm includes an original Kassow Controller and a tablet teach pendant for ease of use. If you are looking to get high-quality automation capabilities, consider the KASSOW ROBOTS KR1205 robot arm we have for sale. Contact us for further details.

Overview

  • brand: KASSOW ROBOTS
  • year: 2020
  • MODEL: KR1205
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - KASSOW ROBOTS KR1205

Dimensions

  • Machine Weight: 25 kg

Movement

  • Number of Axes: 7

Technical Specification

  • Max. Handling Weight: 5 kg
  • Max. Reach: 1200 mm

Additional Information

  • Joint speed: 225 deg/sec

  • Joint ranges (J1, J3, J5, J6, J7): +/- 360°

  • Joint ranges (J2, J4): -70°/+180°

  • Repeatability: +/- 0.1 mm

  • Power consumption: 400–600 W (with max load)

  • Supply voltage: 100–120 or 200–240 VAC (50/60 Hz)

  • Supply current: 16 A

  • Operating temperature: 0–45°C

  • Operating humidity: 30–85 %RH non-condensing

  • Protection rating: IP54

  • Sound level: Below 70 dB(A)

  • Footprint: 130 x 130 mm

  • Operating hours: < 300 hours

  • Body material: Anodized aluminum

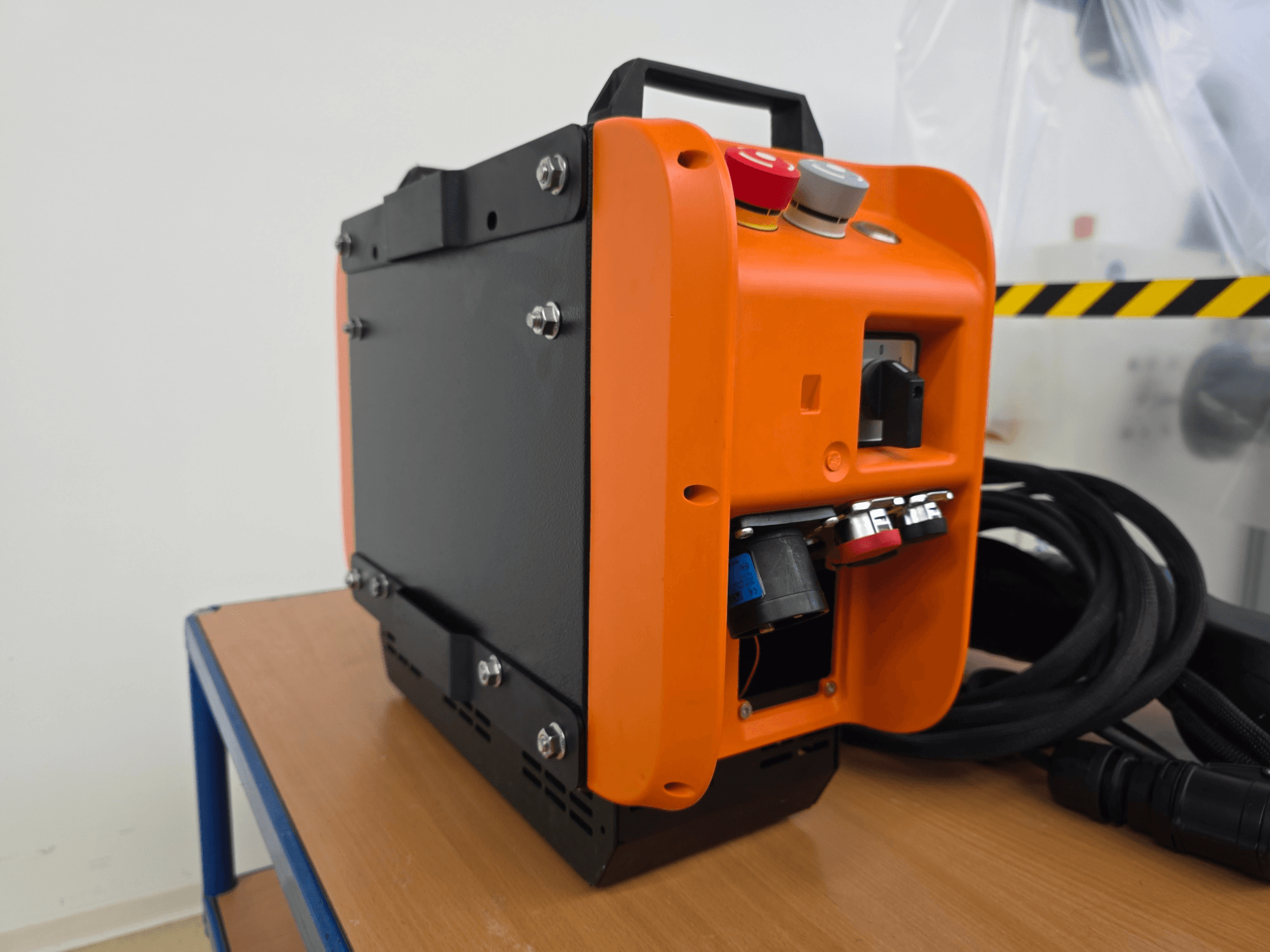

  • Controller: Original Kassow controller included

  • Teach pendant: Included (tablet)

  • Cable lengths: 5 m (controller to arm), 4.5 m (controller to teach pendant)

Additional equipment

  • Schunk Co-act EGP-C 64 gripper


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
