Index GB 30

Photo Gallery

Index - GB 30DE-TUR-IND-1991-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Index GB 30 Lathe

Show in original language

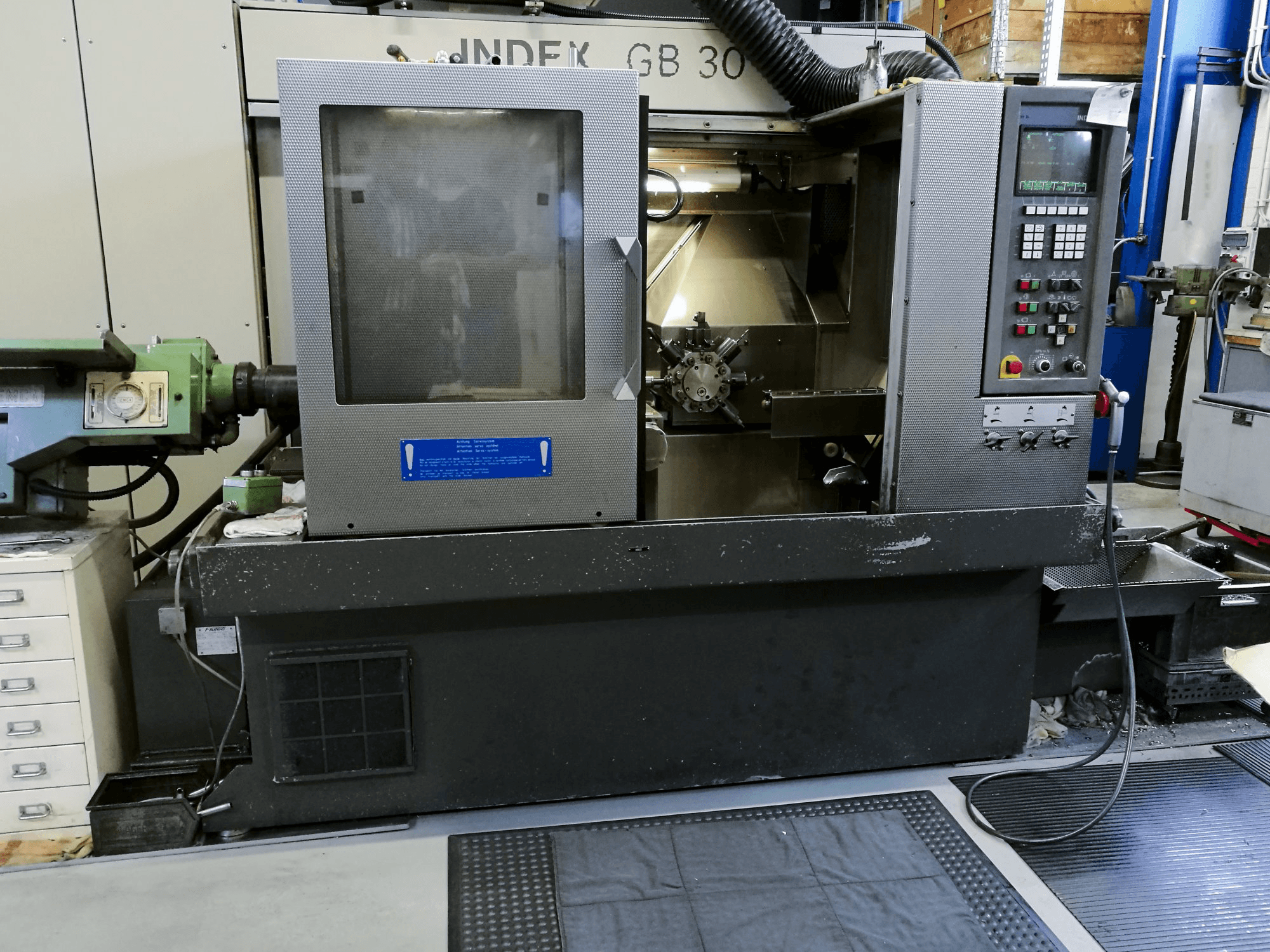

The GB 30, fabricated in 1991 by Index, is a CNC Lonturning Lathe Machine that has been operative for 10695 working hours. The GB 30 comes with a Control unit by Index itself, and has the advantage of a reliable performance and a high durability. Besides tool holders and a bar loader, this product comes with an additional centrifuge device for cooler oil separation.

Overview

brand: Index
year: 1991
MODEL: GB 30
production hours: 10695
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: INDEX

Technical Information - Index GB 30

General Data

Measurements width: 2800 mm
Measurements depth: 1600 mm
Measurements height: 1700 mm
Machine weight: 4000 kg

Control Unit

Interface: Ethernet
Brand: INDEX

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle bore: 42

Movement

Cross_slide_1 Movement: 50 mm (x)
Cross_slide_1 Feed Force: 4000N
Cross_slide_1 Rapid traverse: 15m/min
Cross_slide_2 Movement: 50 mm (x)
Cross_slide_2 Feed Force: 4000N
Cross_slide_2 Rapid traverse: 15m/min
Compound_slide_1 Movement: 50 mm (x) / 120 mm (z)
Compound_slide_1 Feed Force: (x) / 6800N (z)
Compound_slide_1 Rapid traverse: 15m/min
Compound_slide_2 Movement: 50 mm (x) / 120 mm (z)
Compound_slide_2 Feed Force: (x) / 6800N (z)
Compound_slide_2 Rapid traverse: 15m/min
Turret Movement: 96 mm (x) / 200 mm (z)
Turret Feed Force: (x) / 9000N (z)
Turret Rapid traverse: 15m/min

Workpiece

Workpiece drm: 42 mm

Turret

Number of turrets: 1
Number of tool slots: 8

Media

Main electronic connection: 400 V / 50 Hz
Air pressure: 6 bar
Lubrication tank: 250-300
Oil tank: 150-200
Oil pressure: 100

Additional equipment

- Tool holders
- Bar loader
- Centrifuge device for oil seperation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
