➤ Pre-Owned Index G200 Lathe

Show in original language

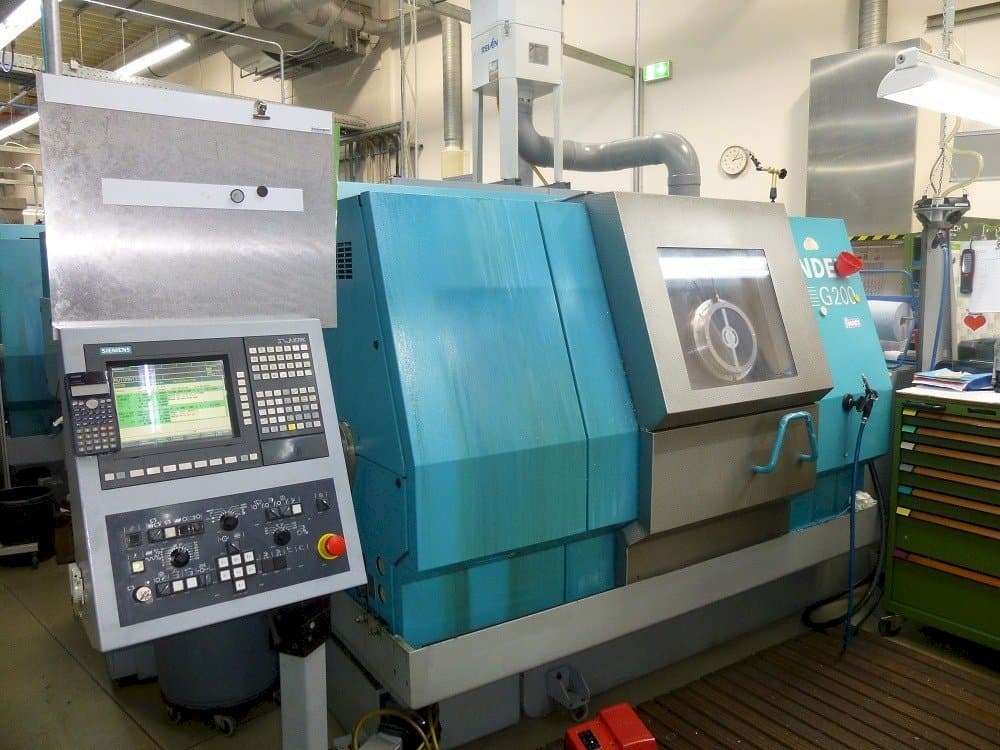

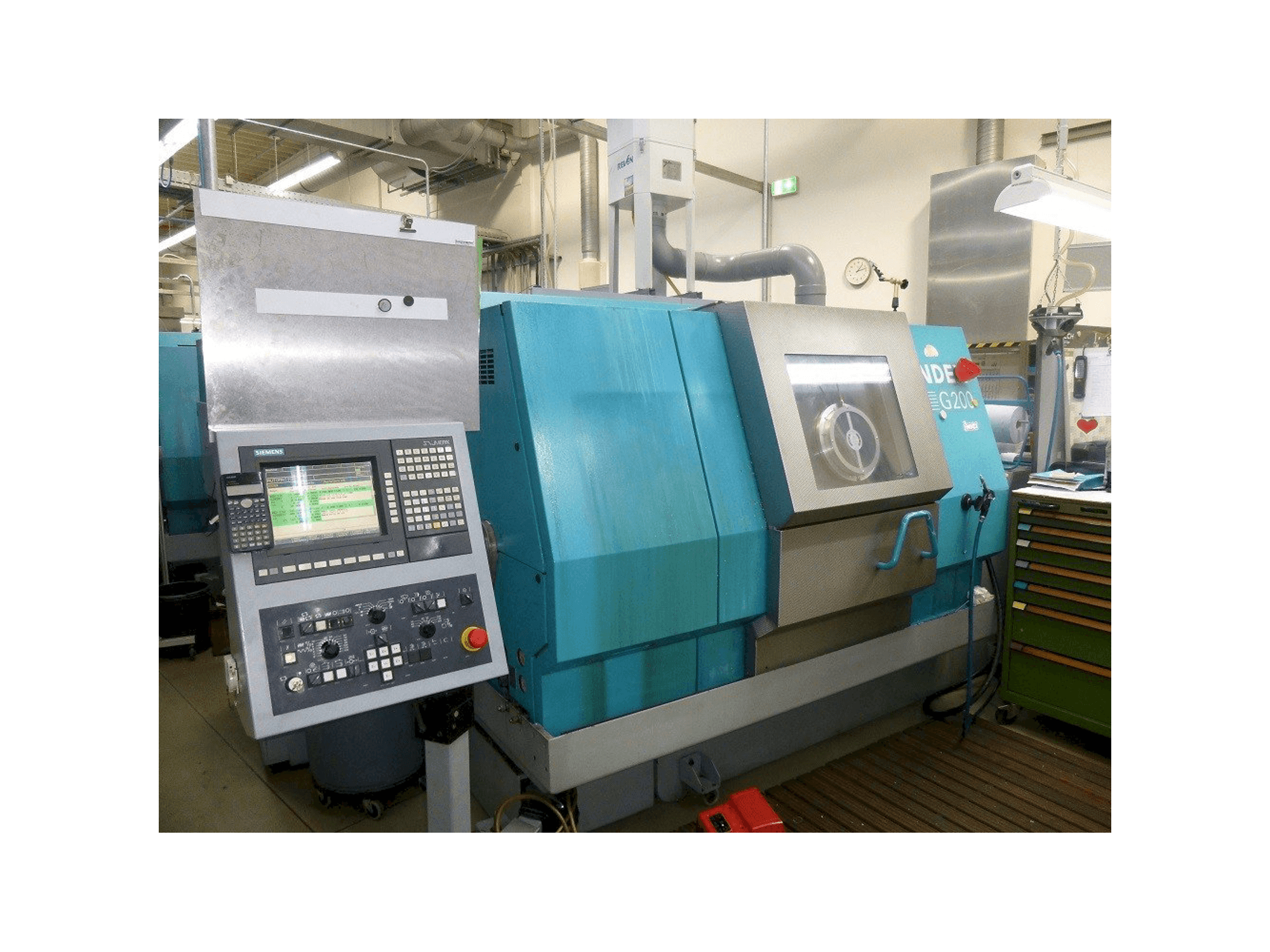

This Index G200 Lathe was manufactured in the year 1998 in Germany. Operated through a SIEMENS SINUMERIK 840 C Control unit, this machine incorporates a spindle speed of 5000 rpm. Several additional equipment is included with this machine.

Overview

brand: Index
year: 1998
MODEL: G200
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Index G200

General Data

Measurements width: 4442 mm
Measurements depth: 2548 mm
Measurements height: 2800 mm
Machine weight: 5240 kg

Control Unit

Model: SINUMERIK 840 C
Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 20 kW
Main motor power: 29 kW

Movement

X-AXIS Movement: 155 MM
Y-AXIS Movement: ±60 MM
Z-AXIS Movement: 400 MM

Tools

Number of stations: 14
Type of tool holder: VDI 25

Additional Information

Additional equipment

Coolant tank with additional high-pressure pump
Hinged belt conveyor (Knoll)
oil mist extractor
guide tubes

Machine Benefits

Qualitative Machine Benefits

Programmiersystem turbo h200
Mde recording of order and machine times

Technical Machine Benefits

Setting gauge adjustment of the v-bar on the turret
Thread cutting without floating tap holder
Thread cutting without floating tap holder
Tailstock with electric drive max. 5500 n

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
