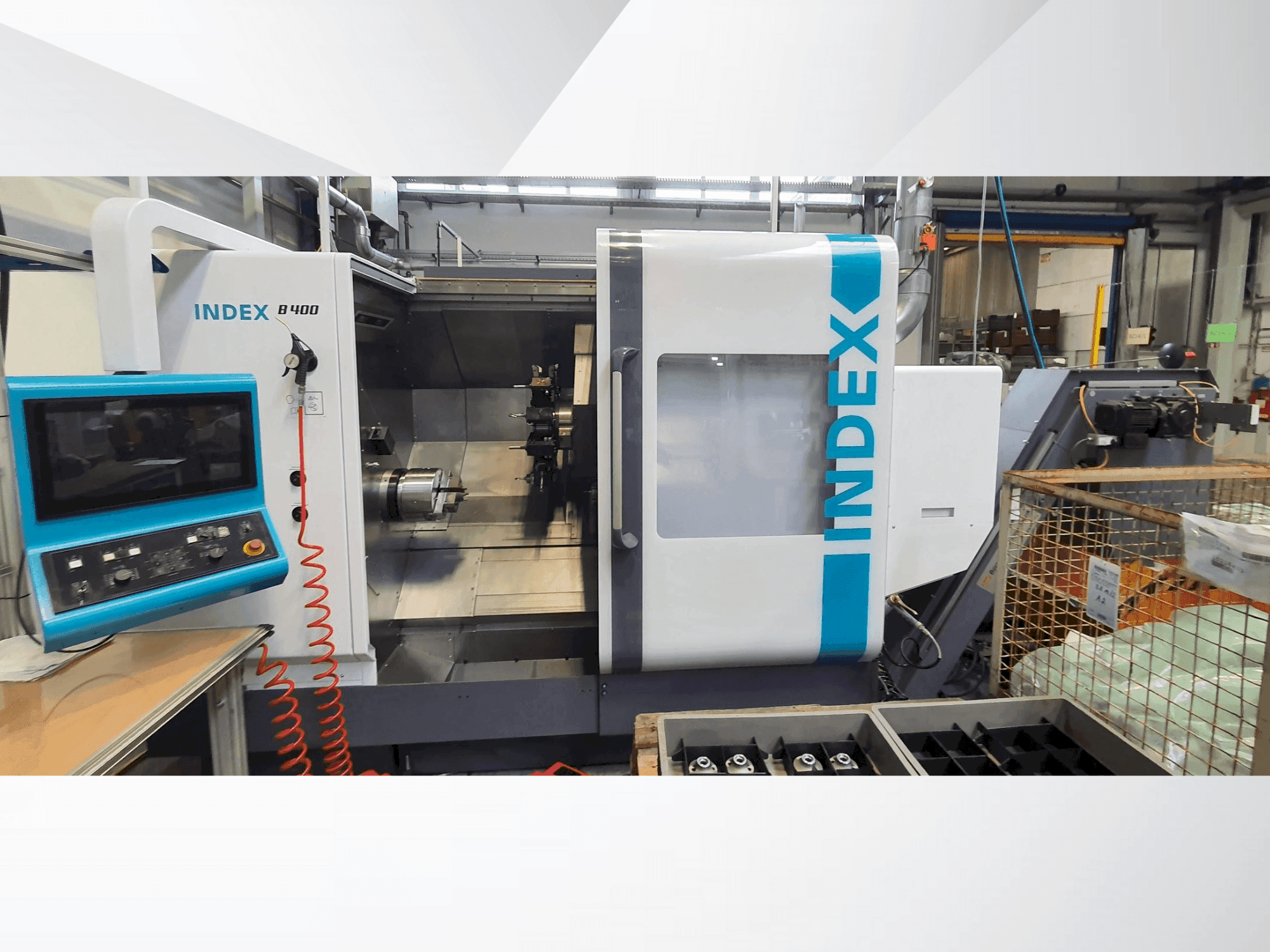

Index - B400AT-TUR-IND-2021-00001

Max. Counter spindle speed: 4000 rpm / counter spindle power (100%/40%): 8/12 kw / max. Torque (100%/40%): 79/119 nm / front bearing diameter: 150 mm

Control on: 16967:08:31/ spindle on: 1557:23:30

Axes: 5 / coolant: blaser b-cool mc 640 ci / capacity: approximately 600 liters

System: siemens s840d sl / monitor: 18. 5" touchscreen

Features: easy programming, shop turn (optional), ixpanel with vpc box and virtual pro (optional)

X-axis travel: 360 mm / x-axis rapid traverse: 40 m/min / x-axis feed force: 11900 n / z-axis travel: 750 mm / z-axis rapid traverse: 40 m/min / z-axis feed force: 11900 n / y-axis travel: 120 mm / y-axis rapid traverse: 20 m/min / y-axis feed force: 11700 n

Bar capacity: Ø 82 mm / chuck capacity: up to 315 mm / tailstock taper: mk5 or sk30 / steady rest clamping range: 12-152 mm (optional) / workpiece removal device for main and counter spindles (optional) / swing over cross slide: 650 mm / swing over bed: 770 mm

Two tool carriers available: star turret with w-toothing for high tool change accuracy, optionally vdi 30 or vdi 40 / disc turret (classic) vdi 40 / both accommodate up to 12 fixed or driven tools

Rated power: 52 kw / connected load: 62 kva / rated current: 90 a

Clamping pressure: 8 to 50 bar / stroke: 35 mm / max. Compression force: 77 kn / max. Tension force: 77 kn

Clamping pressure device: min. /max. 8/50 bar / piston area: compression 154 cm² / tension 154 cm²

The robot shown in the photos is not included, but can be purchased for additional costs

no tools or euipment included

Only when buying both units, some additional accessories can be purchased for additional costs
