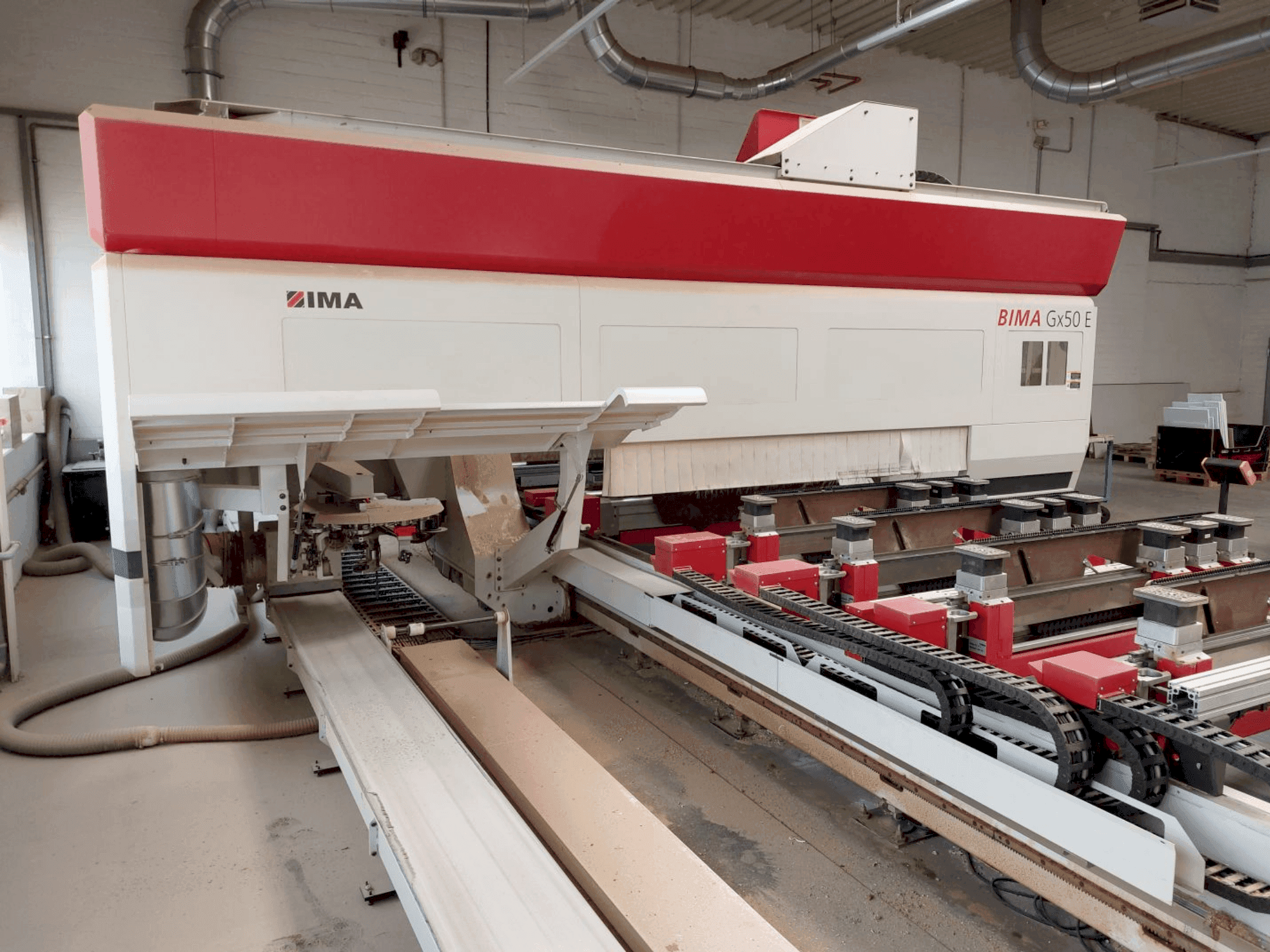

Front view of IMA BIMA Gx50 E 160/630 CNC Processing Center  machine

IMA - BIMA Gx50 E 160/630DE-WOO-IMA-2014-00001

Rs. 24,586,650
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis IMA BIMA Gx50 E 160/630 CNC Processing Centre was manufactured in 2014. It features a robust heavy-duty design with a machining area of X=6300 mm, Y=1600 mm, and Z=225 mm. Equipped with an 18 kW main spindle, vertical drilling unit with 21 spindles, and a tool changer magazine with 18 pockets. Ideal for complex woodworking tasks, the IMA control system ensures precision. For more information about this Wood Processing Centre, please reach out to us.

Overview

  • brand: IMA
  • year: 2014
  • MODEL: BIMA Gx50 E 160/630
  • application type: Wood Working
  • Location: Germany
  • machine type: Wood
  • availability: Immediately
  • control unit brand: IMA

Technical Information - IMA BIMA Gx50 E 160/630

General Data

  • Machine weight: 10500 kg

Control Unit

  • Brand: IMA
  • Model: ICOS CNC

Main drive

  • Number of spindles: 1
  • Spindle motor power: 18 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 6300 mm
  • Y-AXIS Movement: 1600 mm
  • Z-AXIS Movement: 225 mm

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Compressed air via central connection
    • - Extraction via central connection
    • - Individual extraction units with automatic slide damming
    • - Tool/adapter changer magazines on the rear of the support with 18 pockets moving in the X and Y directions
    • - Vertical drilling unit with 21 spindles
    • - Attachment unit with drilling and routing head
    • - Gluing area
    • - Edge feeding unit for diode laser
    • - Edge thickness measuring device
    • - 4-fold roller magazine (traveling in X-direction)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle with 18 kw power
        • - Large machining area allows for handling of big workpieces
        • - High spindle power for intensive woodworking tasks
        • - Advanced tool changing system enhances productivity
        • - Edge thickness: 0. 4 - 3 mm
        • - Workpiece thickness: 19 - 60 mm
        • - Edge material length at least 350 mm
      • Qualitative Machine Benefits:
        • - Robust heavy-duty design ensures durability and stability during operation
        • - Comprehensive dust and chip management system for a clean working environment
        • - Used, not overhauled, without warranty

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
