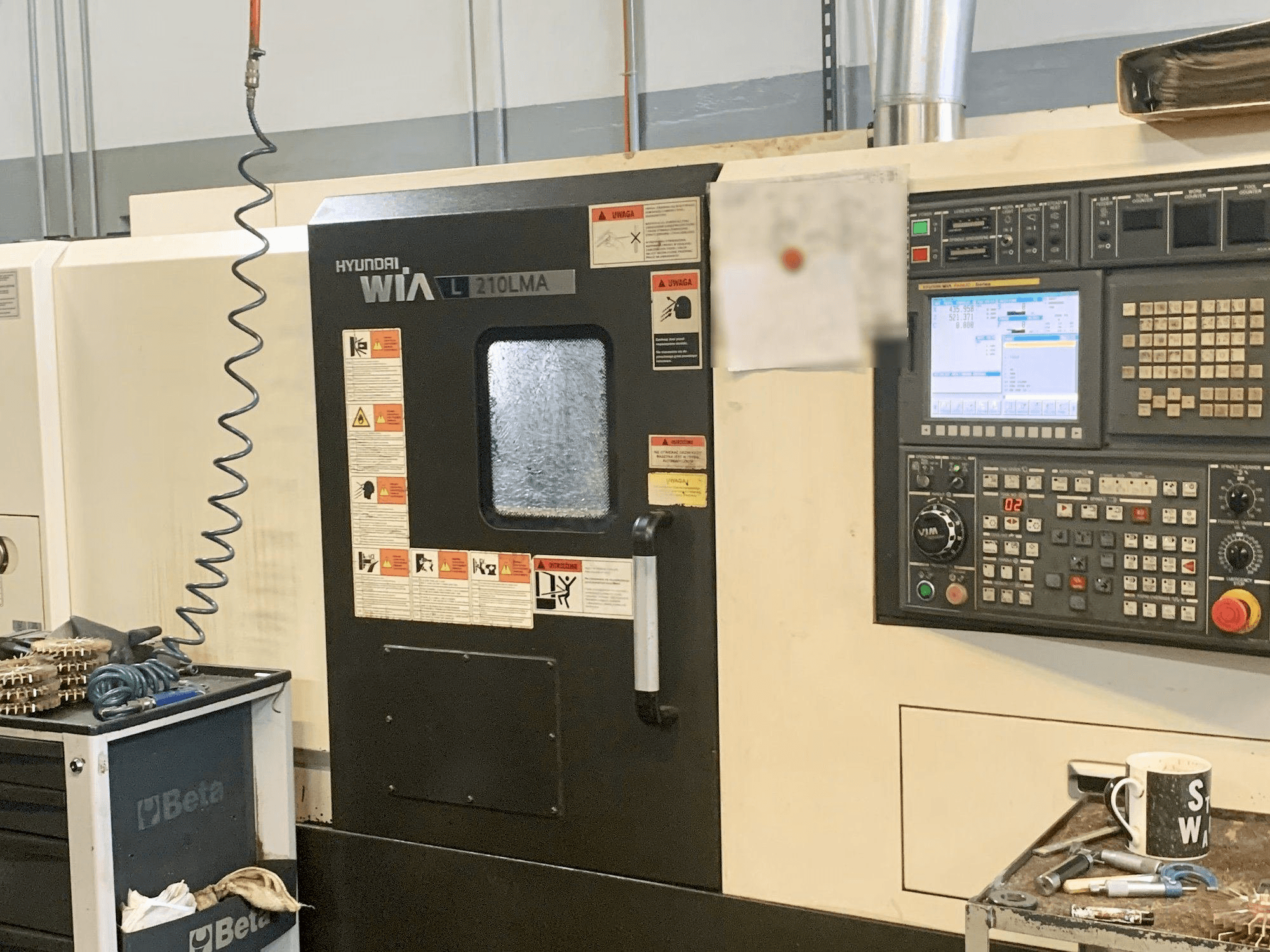

Front view of Hyundai Wia L210LMA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L210LMA

Photo Gallery

Hyundai Wia - L210LMAPL-TUR-HYU-2015-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L210LMA Lathe machine

Show in original language

This Hyundai Wia L210LMA Lathe machine was manufactured in Korea in 2015. This machine is operated by a FANUC i-series control unit. It works with a spindle speed up to 4000 rpm and has 10629 working hours. Includes probe, chip conveyor and tail stock. The machine is in good working condition.

Overview

brand: Hyundai Wia
year: 2015
MODEL: L210LMA
production hours: 10629
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - Hyundai Wia L210LMA

General Data

Measurements width: 4014 mm
Measurements depth: 1650 mm
Measurements height: 1870 mm
Machine weight: 4400 kg

Controller

Brand: FANUC
Model: i-series

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 550 mm
C-AXIS Movement: 360 deg MM

Turret

Number of turrets: 12 pcs

Media

Main electronic connection: 380V / 50Hz
Power consumption: 23 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed dia. - 550 mm
- - Max machining dia. - 255 mm
- - Max machining length - 530 mm
- - Max work piece dia. - 65 mm
- - Rotating speed for tools - 4000 rpm
- - Probe
- - Tail stock
Qualitative Machine Benefits:
- - Machine in very good working condition
- - Ready for test

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
