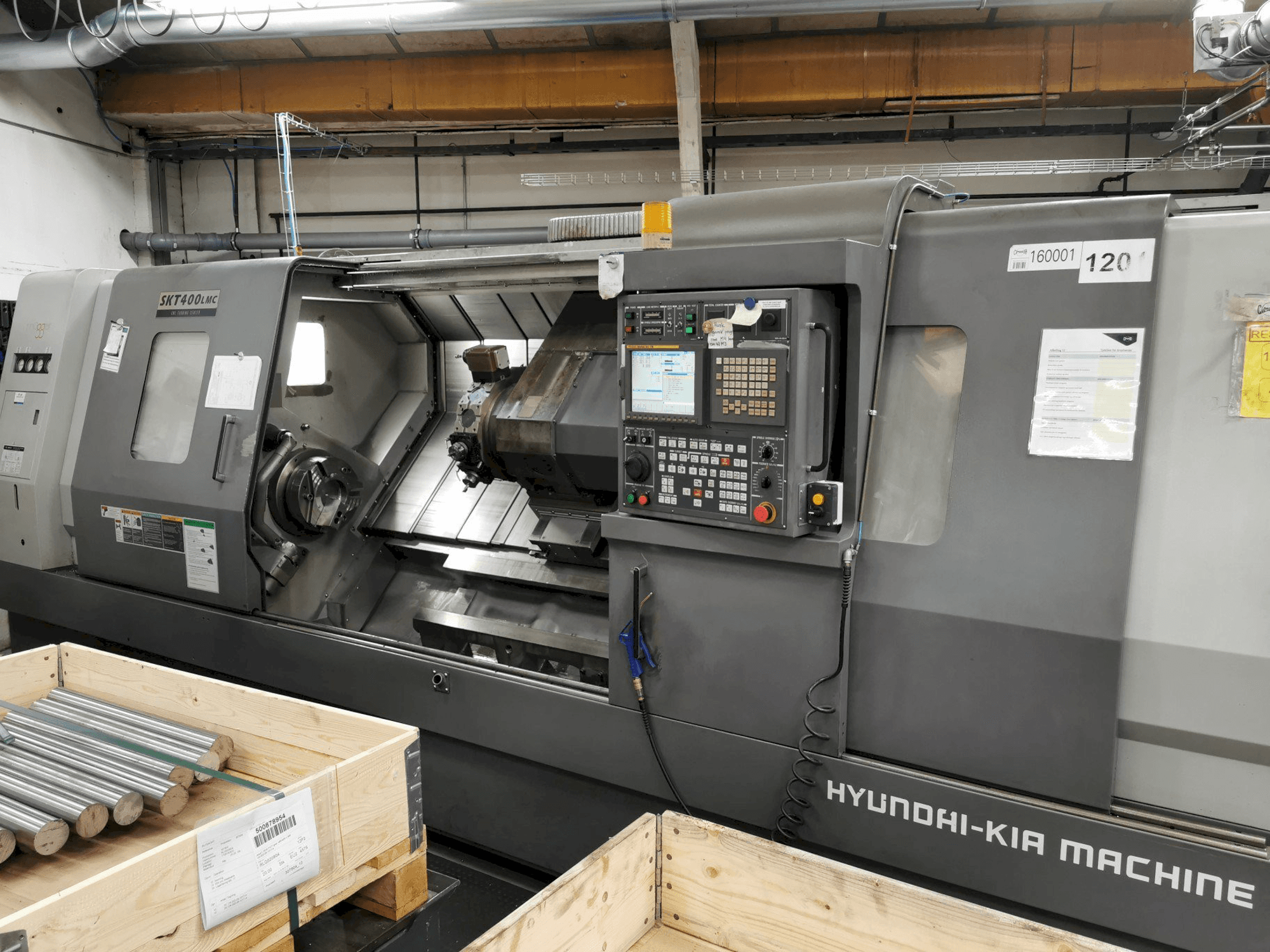

Front view of Hyundai Kia SKT400LMC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HYUNDAI KIA SKT400LMC

Photo Gallery

HYUNDAI KIA - SKT400LMCGB-TUR-HYU-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Kia SKT400LMC Lathe machine

Show in original language

This Hyundai Kia SKT400LMC Lathe machine was manufactured in the year 2008 in Korea. It is equipped with a FANUC 21I-T control unit. This 3 axis machine can perform with a spindle speed up to 2000 rpm.

Overview

brand: HYUNDAI KIA
year: 2008
MODEL: SKT400LMC
production hours: 45564
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - HYUNDAI KIA SKT400LMC

General Data

Measurements width: 6340 mm
Measurements depth: 2165 mm
Measurements height: 2228 mm

Control Unit

Model: Series 21i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 320 mm
Z-AXIS Movement: 2200 mm

Turret

Number of turrets: 1

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 725 mm
- - Maximum cutting diameter 570mm
- - Maximum cutting length 2110mm
- - Bar capacity 117 mm
- - Main spindle motor power 37/30 kw
- - Turret milling power 7. 5/5. 5 kw; speed 4000 rpm
- - 0. 001 degree c axis
- - Tool setter, coolant, hydraulic power work steady
- - Tooling, 3 jaw chuck 380mm (15")
- - Tailstock body travel 2100 mm (taper mt #5, quill diameter & stroke 150 mm)
Qualitative Machine Benefits:
- - Very good condition
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
