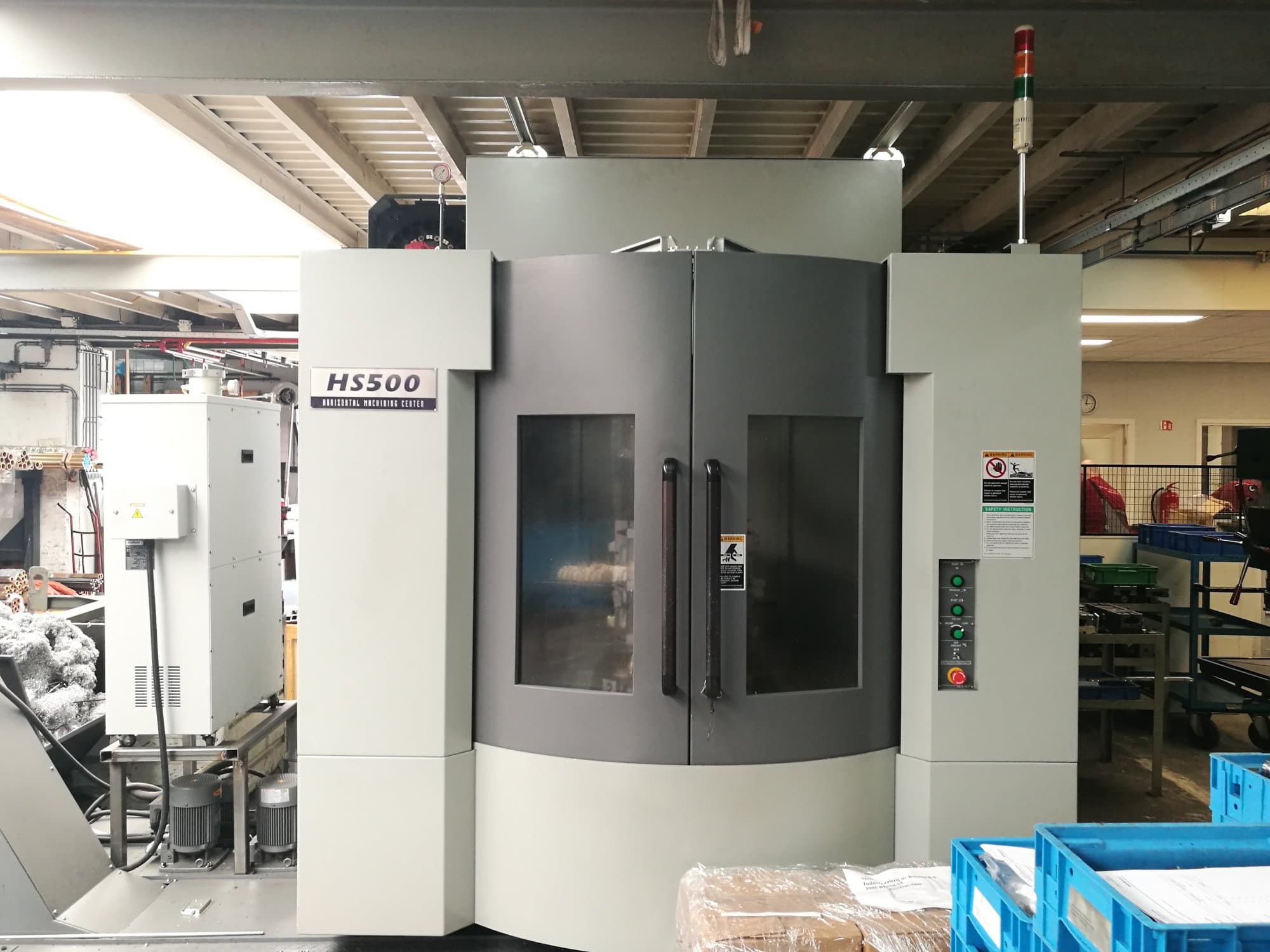

Hyundai Kia HS500 Horizontal Machining Center

Show in original language

This Hyundai Kia HS500 Horizontal Machining Center, fabricated in Korea in 2011, has a production record of only 1050 working hours. Equipped with a FANUC Series 18i-MB Control unit, this powerful and accurate machine has mainly worked with aluminium during the past and stands out due to its wide range of machining capabilities.

Overview

brand: HYUNDAI KIA
year: 2011
MODEL: HS500
production hours: 1050
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - HYUNDAI KIA HS500

General Data

Measurements width: 2770 mm
Measurements depth: 4950 mm
Measurements height: 2800 mm
Machine weight: 15000 kg

Control Unit

Brand: FANUC
Model: Series 18i-MB

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/min

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece drm: 50 mm

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Max weight: 8 kg
Max tool diameter: 140 mm
Max tool length: 400 mm

Media

Main electronic connection: 380 V
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 1x Profluid (PF20-20SF)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
