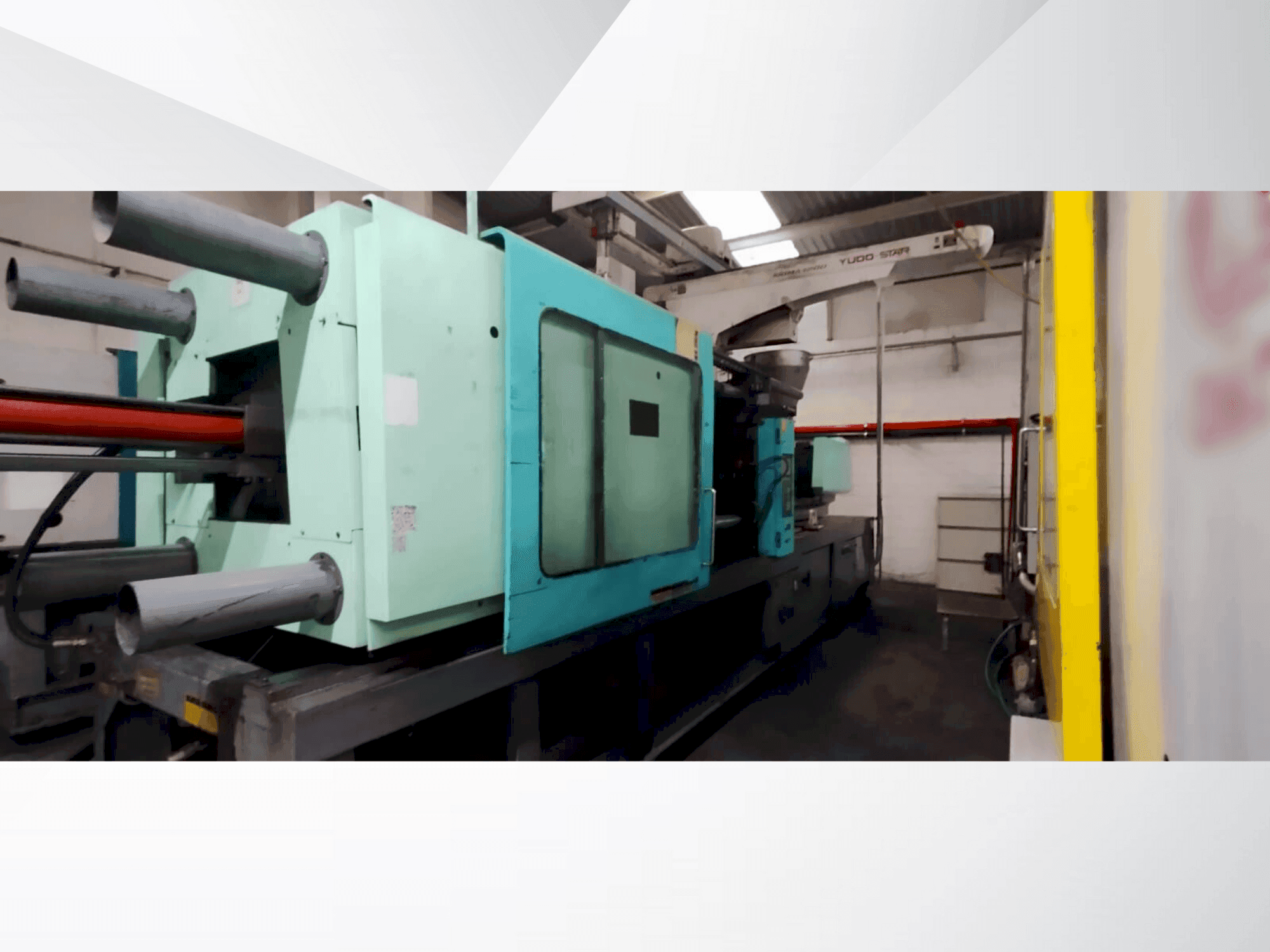

Front view of Hyundai 450  machine

Hyundai 450

Hyundai - 450

2001

Rs. 4,088,150

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HYUNDAI 450 injection moulding machine was manufactured in 2001. It features a screw diameter of 76 mm, an injection pressure of 1840 ㎏/㎠, and a mould clamping force of 450 tons. The machine has a total power capacity of 88.18 kW and a hydraulic oil reservoir with a capacity of 900 liters. This is an excellent opportunity to acquire the HYUNDAI 450 machine we have for sale. Reach out for more information.

Overview

  • brand: Hyundai
  • year: 2001
  • MODEL: 450
  • application type: Injection Moulding
  • Location: Mexico
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • GINDUMAC ID: MX-INJ-HYU-2001-00001

Technical Information

General Data

  • Measurements width: 1700 MM
  • Measurements depth: 8500 MM
  • Measurements height: 2600 MM

Injection Unit

  • Screw diameter: 76 mm
  • Shot weight: Maximum 1336 g
  • Stroke volume: 1452 m CM³
  • Injection pressure: 1840 kg/cm2 BAR
  • Heating capacity: 33.18 kw

Clamping unit

  • Clamping force: 450 Ton KN
  • Distance between bars: 810 x 810 mm
  • Size of mold platens: 1175x1120 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 11 ton

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum metering stroke: 320 mm
      • - Pump driving motor: 55 kw
      • - Total power capacity: 88. 18 kw
      • - Mould thickness: 800/380 mm
      • - Daylight opening: 1550 mm
      • - Clamping system double toggle
      • - Injection rate: 394 cc/sec

    Extra information

    • - Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
