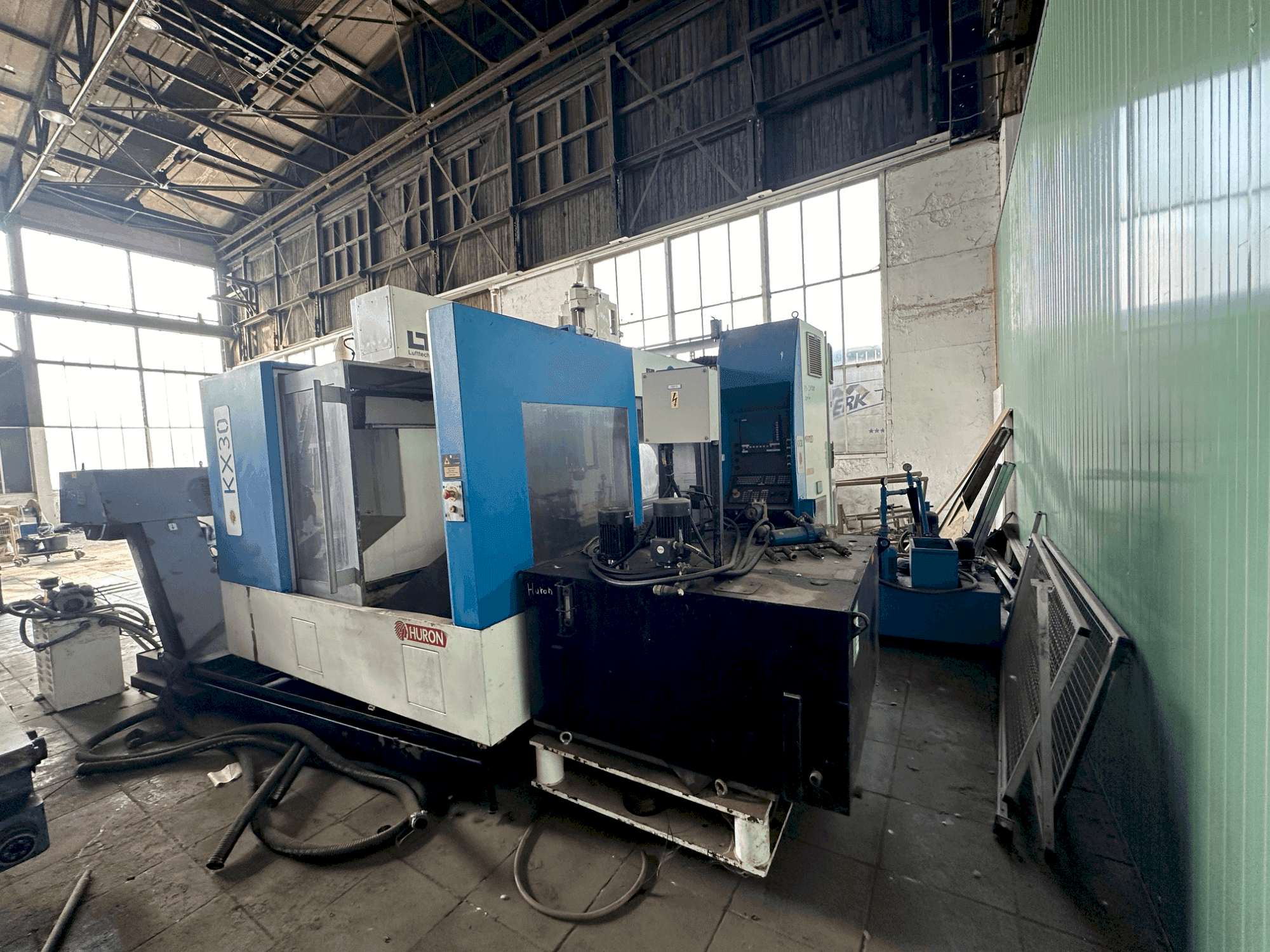

This 3-axis Huron KX30 vertical machining centre was manufactured in 2001. It features a ribbed cast structure for high rigidity and excellent vibration damping during demanding cutting processes. It includes a high-speed spindle up to 42,000 RPM and a large table size of 2000 x 1000 mm, supporting loads up to 2.5 tons. Accessories include an IRODEX chip conveyor and a separate vacuum clamping table. Reach out for further details regarding this vertical machining centre.
Overview
- brand: Huron
- year: 2001
- MODEL: KX30
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - Huron KX30
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Depth: 5770 mm
- Machine Height: 3430 mm
- Machine Weight: 17000 kg
- Table Load: 2500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1800 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 550 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Speed: 42000 RPM
Additional Information
Additional equipment
- LTA extraction unit
- Belt filter
- Cooling unit
- IRODEX chip conveyor
- Separate vacuum clamping table approx. 1500x1000 mm
- Refrigeration dryer DONALDSON SD0080AP-CV, with pressure vessel
Machine Benefits
Qualitative Machine Benefits
- First-class quality surfaces, especially in the 3d production of molds/forgings and tools
Technical Machine Benefits
- Ribbed cast structure with excellent mechanical properties and high rigidity
- Excellent damping of vibrations during demanding cutting processes
- Floor anchoring for long-term high geometric stability and precision
- Total power requirement: 30 kw
- Table size: 2000 x 1000 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
