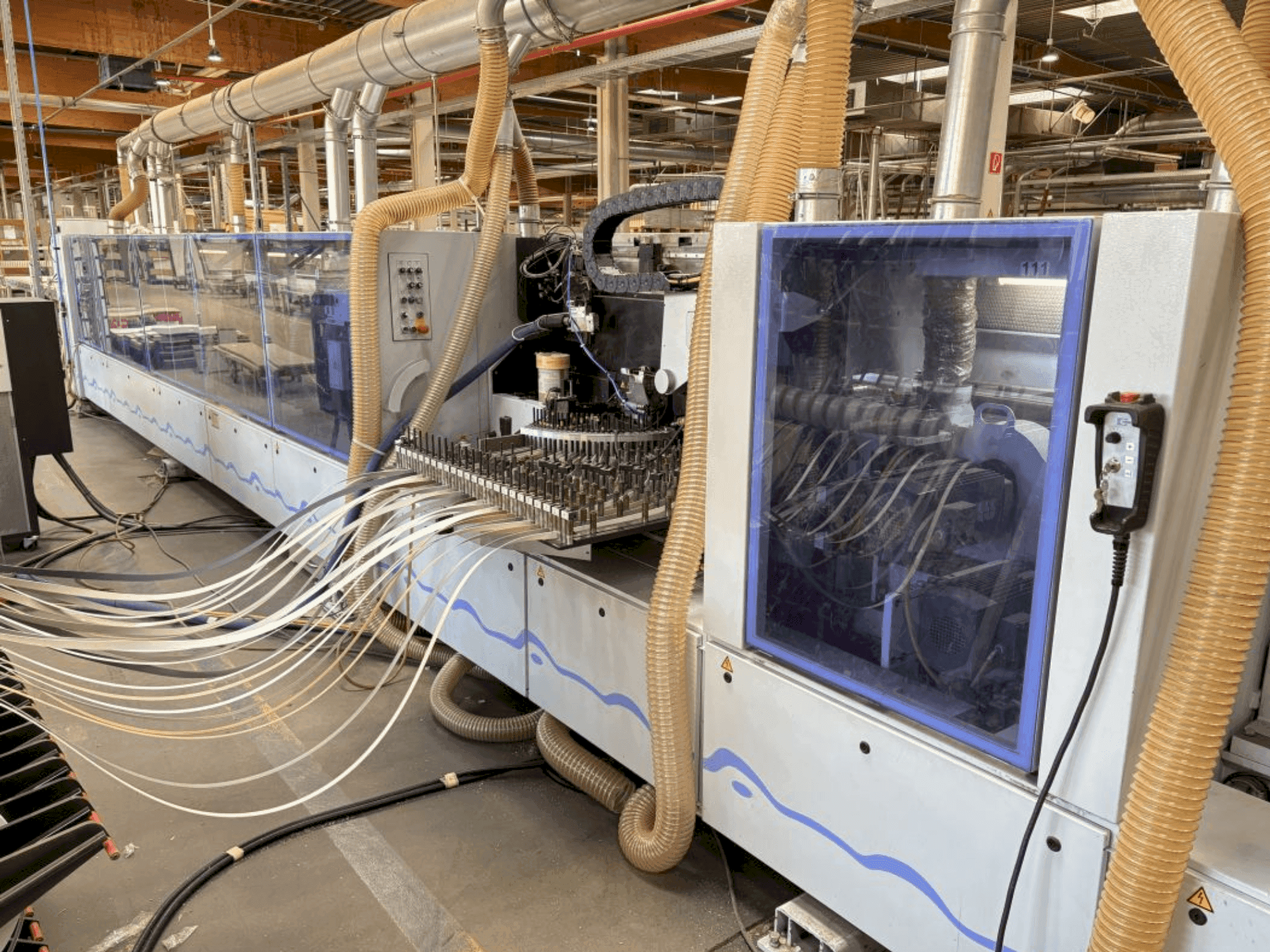

HOMAG - KFL350/12/A3/L/WZDE-EDG-HOM-2011-00002

Additional equipment

• - Motor Specifications: Joint Trimming Unit: 2 motors each 3 kW, 9000 rpm / Universal Routing Unit: 1 motor 4 kW, 9000 rpm / Moulding Unit: 1 motor 0.75 kW, 12000 rpm /Processing Parameters: Chamfer: 0.5 x 45° and 20° with specified dimensions / Feed Rate: Up to 30 m/min depending on edge material

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Feeding table parameters: feed rate: 7 to 40 m/min/ working height: 950 mm +/- 50 mm/ workpiece length: 240 mm to 2500 mm/ workpiece width: 120 mm to 3000 mm
  • - Edge banding machine parameters: feed rate: 18 to 32 m/min /working height: 950 mm /workpiece width: min 60 mm for thickness 12-22 mm, min 100 mm for thickness 23-60 mm/ workpiece thickness: 12 to 60 mm/ edge material roll: 0. 3 to 3 mm max /edge cross-section: 135 mm² for pvc, 100 mm² for veneer/ max roll diameter: 830 mm /workpiece thickness max: 40 mm /roll edge thickness: max 3 mm/ edge thickness measurement: yes
  • - Laser unit parameters: laser beam wavelength: 980 nm / laser safety: protection class 4 converted to class 1
• Qualitative Machine Benefits:
  • - Centralized adjustment via stepless axis / automatic adjustment to workpiece thickness for laser unit / release agent spraying unit / stepless horizontal and vertical axis configurations
  • - Pressure zone with pneumatic pressure adjustment / multiple servo-driven systems for roller and edge feeds / various units for specific edge finishing and rounding tasks
