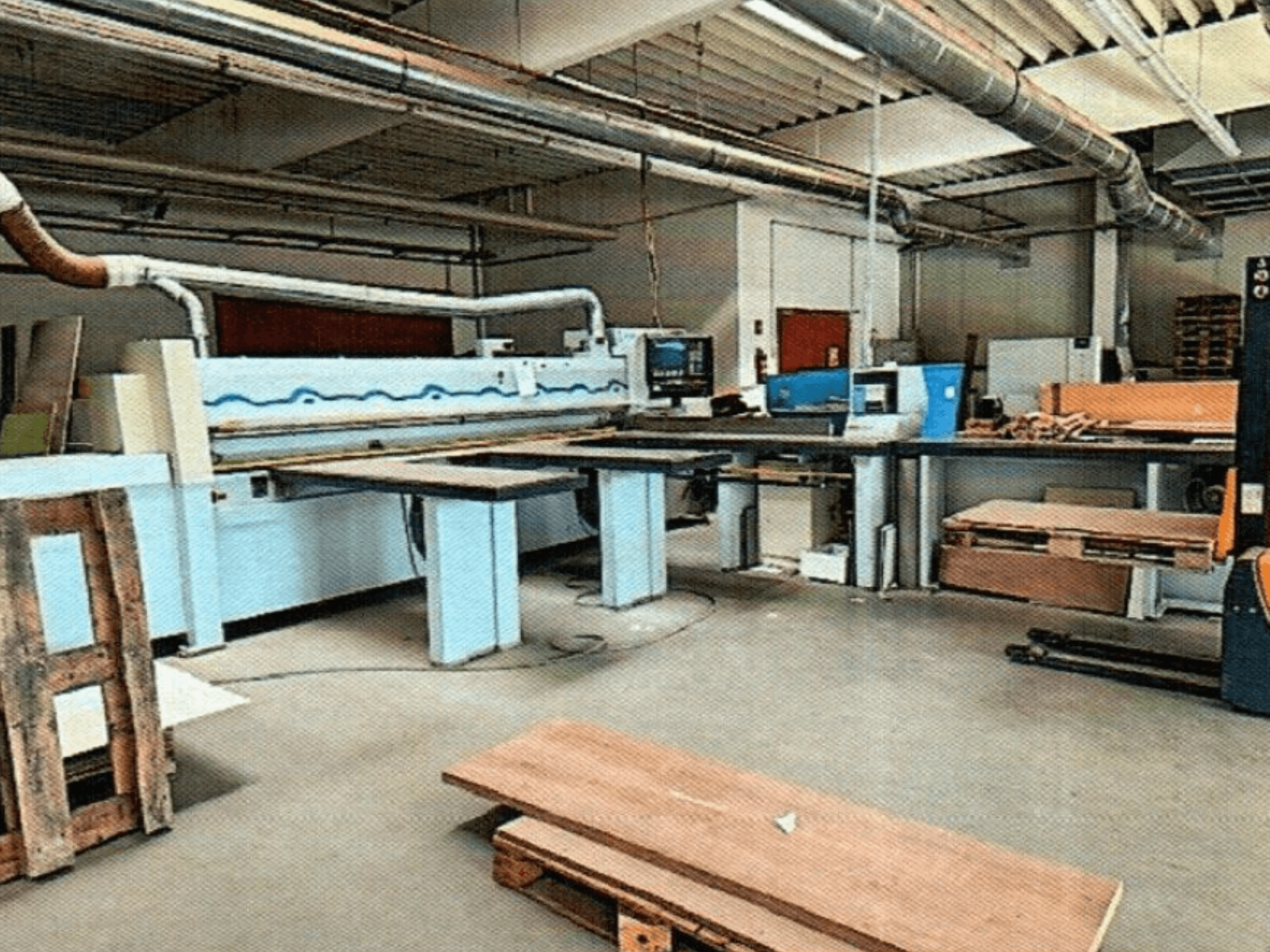

Panel saw manufactured in 1997. This HOMAG HPL 11/38/22 features a cutting length and width of 3800 mm, with a lifting table payload of 7 tons. It includes 7 clamps and automatic height control for efficient panel feeding. If you are looking to get high-quality panel cutting capabilities, consider the HOMAG HPL 11/38/22 machine we have for sale. Contact us for further details.
Overview
- brand: HOMAG
- year: 1997
- MODEL: HPL 11/38/22
- application type: Sawing (Wood)
- Location: Germany
- machine type: Panel Saw
Technical Information - HOMAG HPL 11/38/22
Technical Specification
- Max. Cutting Length: 3800 mm
Additional Information
Cutting width (program pusher travel): 3800 mm
Clamps: 7 units (with 2 optional additional clamps possible at positions 150/350)
Clamp spacing: 50 / 250 / 450 / 850 / 1550 / 2250 / 3050 mm (measured from angular fence to clamp center)
Air cushion tables (front of machine):
1x at angular fence: 2810 x 650 mm
2x: 2160 x 650 mm
Additional equipment
Lifting table for batch-wise panel feeding:
Dimensions: 3800 x 2200 mm
Payload: 7 tons
Stacking height (floor level): max 680 mm
Stacking height (in-pit installation): max 880 mm
Automatic height control via control console
Heavy-duty roller conveyors (2x): Type HER 38/22 L, non-driven, longitudinal transport, forklift slots, 18 rollers, height 330 mm, roller Ø 108 mm, spacing 198.5 mm
Roller conveyor drive units (2x): Type 38/22, speed 12 m/min
Stacking station: LIFT-EX Type HAZ Ausf. A for stacking divided formats
Label printing system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
