➤ Used SCM SI 5 - 2019 - Panel Saw For Sale | gindumac.com

Show in original language

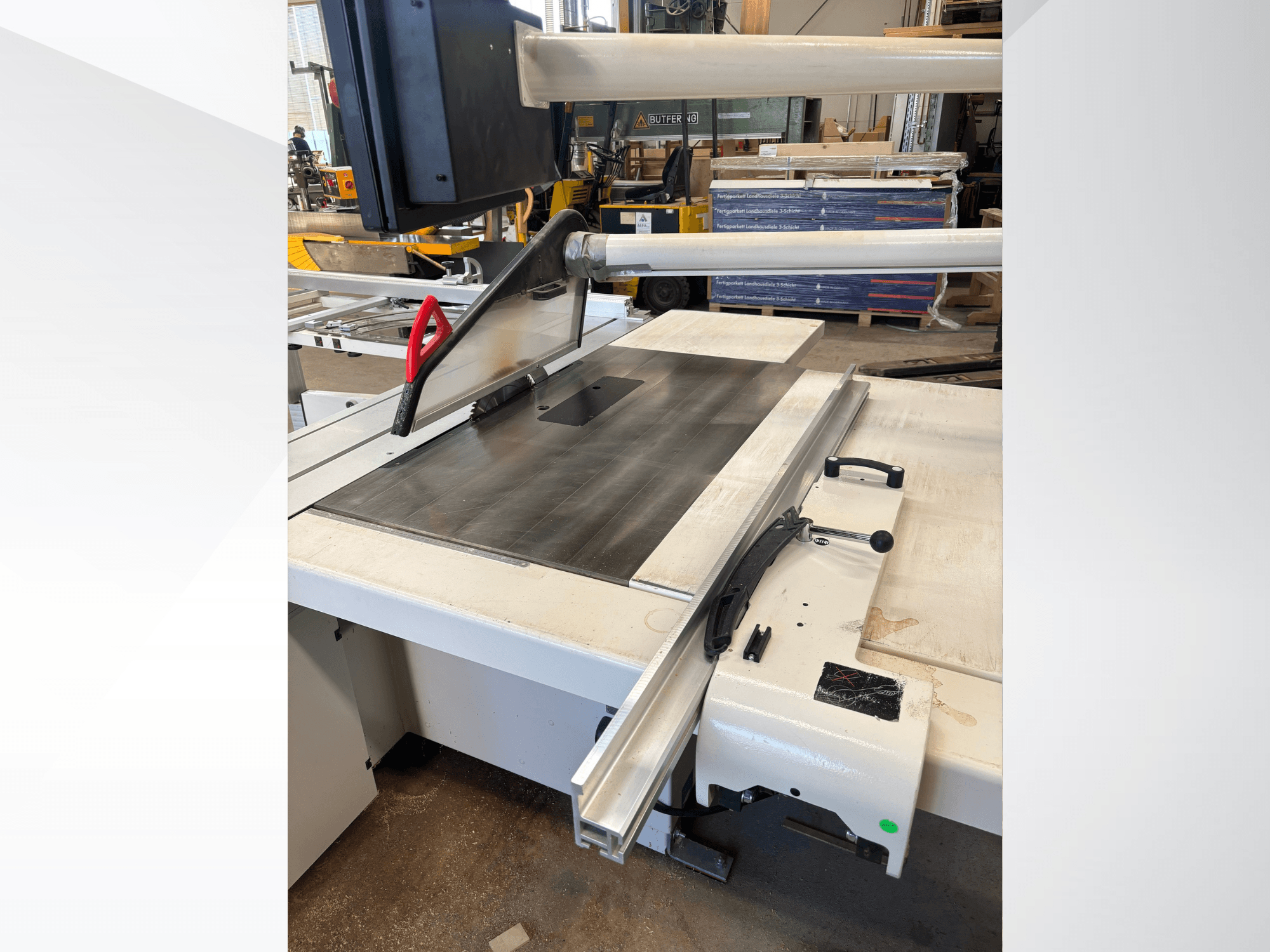

This SCM SI 5 panel saw was manufactured in 2019. It features a maximum cutting height of 200 mm at 90° and a sliding table version of 3800 mm, allowing for format cuts up to 3800 x 3200 mm. The machine is equipped with an "EASY TOUCH 7" electronic control unit, enabling up to 999 storable programs. If you are looking to get high-quality cutting capabilities, consider the SCM SI 5 panel saw we have for sale. Contact us for further details.

Overview

brand: SCM
year: 2019
MODEL: SI 5
application type: Sawing (Wood)
Location: Germany
machine type: Panel Saw

Technical Information - SCM SI 5

Dimensions

Machine Weight: 1259 kg

Additional Information

- Controlled Axes: Up to 3 axes (Main Saw Height, Main Saw Tilt, Programmed Rip Fence / Scoring Unit positioning)

- Voltage: 400 V

- Phases: 3 ~

- Current: 22 A

- Frequency: 50 Hz

- Short-circuit current (Icc): 12 kA

- Main Motor Power: 9 kW (12 HP) at 50Hz (with automatic star-delta starter)

- Scoring Motor Power: 0.9 kW (S6-40%)

- Main Saw Blade Diameter: Up to 550 mm (without scoring blade); up to 450 mm (with scoring blade)

- Max. Cutting Height at 90°: 200 mm

- Max. Cutting Height at 45°: 130 mm

- Saw Blade Swivel: 46°

- Saw Blade Speeds: 2500 / 3500 / 5000 RPM

- Scoring Saw Speed: 8500 RPM

- Cutting Width at Rip Fence: 1500 mm

- Sliding Table Version: 3800 mm (Format cuts up to 3800 x 3200 mm)

- Exhaust Socket Diameters: 120 mm (on frame), 100 mm (on saw blade guard)

- Fence System: Programmed rip fence with THK guide and recirculating ball screw (25 m/min speed), fully swingable under the table

- Blade Clamping: "Pro-Lock" system for quick clamping of main saw blade with keyless riving knife adjustment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
