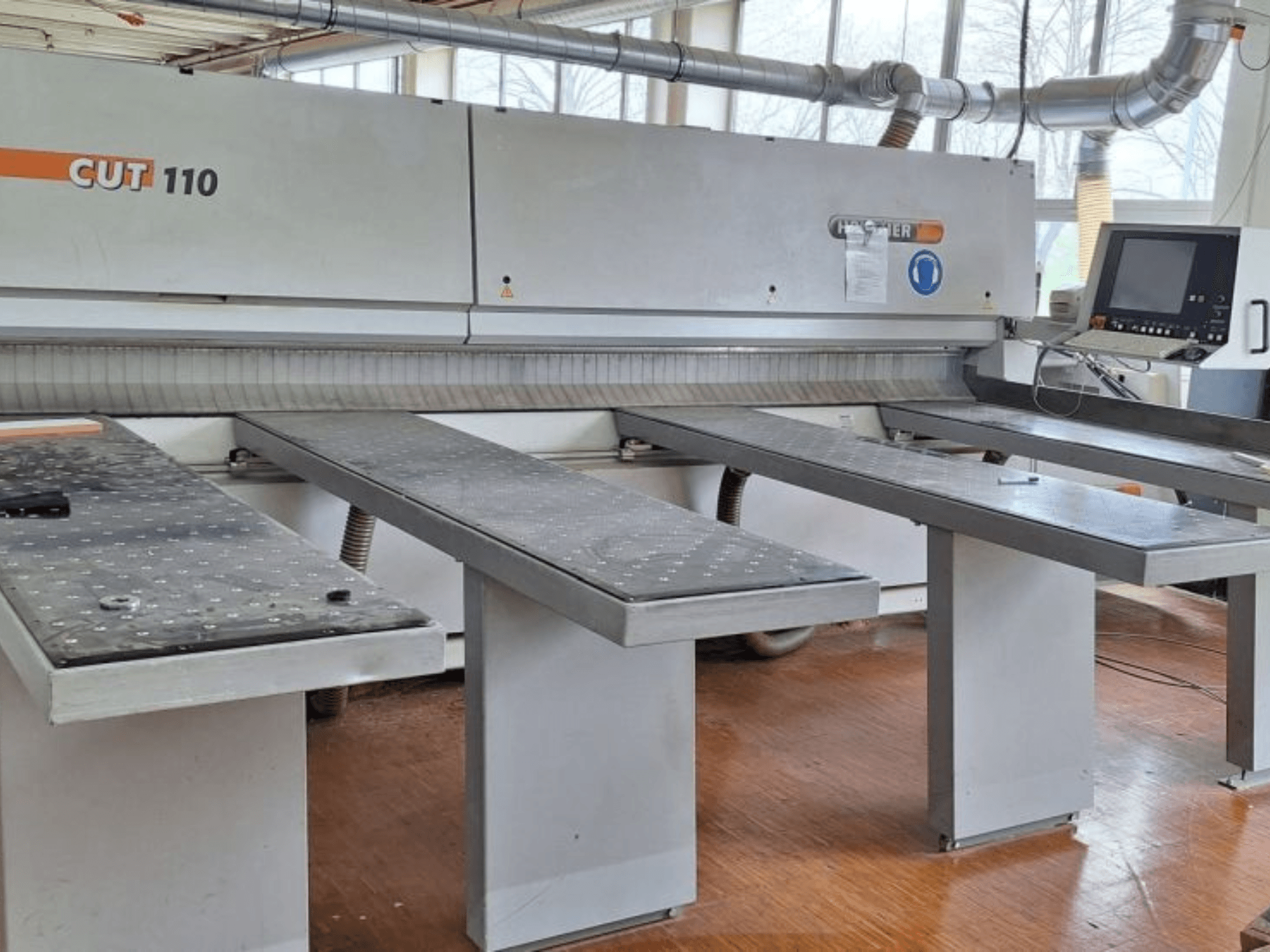

Panel saw manufactured in 2007. This HOLZHER 6310 CUT 110 features a cutting length of 4250 mm and a cutting width of 2700 mm. It includes a Cut Control system with touchscreen operation, a saw carriage with main and scoring saw, and a grooving unit with adjustable depth settings. If you are looking to get high-quality cutting capabilities, consider the HOLZHER 6310 CUT 110 panel saw we have for sale. Contact us for further details.
Overview
- brand: HOLZHER
- year: 2007
- MODEL: 6310 CUT 110
- application type: Sawing (Wood)
- Location: Germany
- machine type: Panel Saw
- control unit brand:
Technical Information - HOLZHER 6310 CUT 110
Technical Specification
- Max. Cutting Length: 4250 mm
Additional Information
Condition note: not rebuilt – without warranty
Cutting width: 2700 mm (original 5250 mm, shortened by 2550 mm to 2700 mm)
Screen on the right
Control: Cut Control system with touchscreen operation
Angle clamping device on the right
Saw carriage: main/scoring saw controlled
Motor power: 18.5 kW (main) / 2.2 kW (scoring)
Scoring saw: manual adjustment in width and height
Grooving unit: 2 groove height settings (groove depth adjustable 2–12 mm, up to max. 9–19 mm)
Label printer: TLP2742
Cutting-out unit
Additional blow-off unit traveling with the saw carriage
3 additional support tables, 2400 mm, with travel mechanism
Control cabinet on machine side, incl. speed monitoring with safety shut-off
Postforming unit, incl. scoring unit
Automatic central lubrication
Enclosed pressure beam
Film cutting device
Additional equipment
Optional at extra charge: Dust extraction system (€4,000.00)
Brand: AL-KO
Model: POWER UNIT 300P
Year of manufacture: 2011
Airflow: 5089 m³/h
Vacuum: 2050 pA
Motor power: 7.5 kW
Suction inlet: 300 mm
Collection: 3 tanks, 250 l each
Integrated automatic shut-off
