SCHELLING - FM-H 430DE-SAW-SCH-2005-00001

Rs. 3,864,374
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

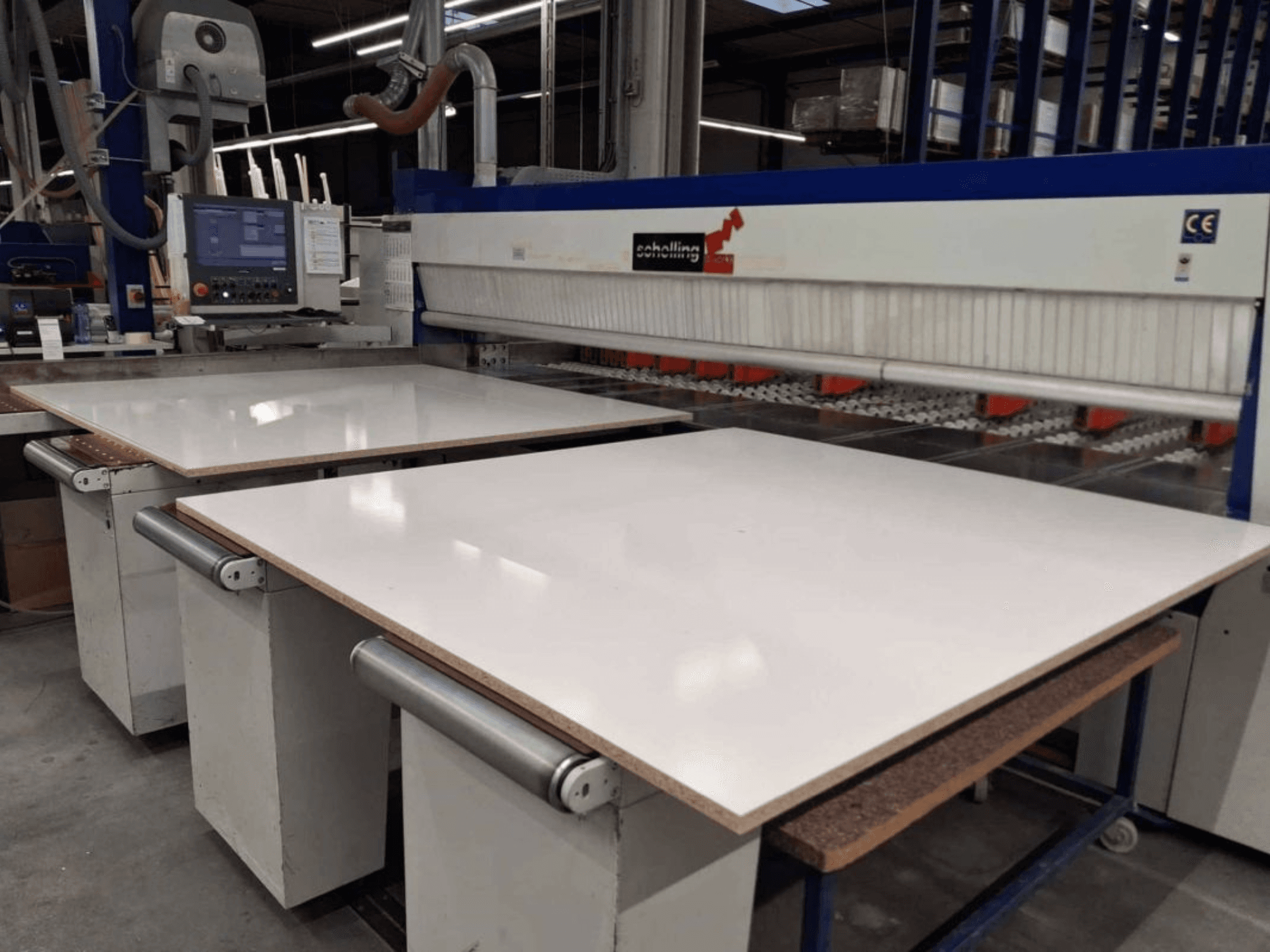

Panel saw manufactured in 2005. This SCHELLING FM-H 430 features a feed speed of up to 25 m/min and a saw feed speed of up to 120 m/min. It is equipped with a powerful saw motor of 19 kW and a clamp opening of 113 mm. If you are looking to get high-quality cutting capabilities, consider the SCHELLING FM-H 430 panel saw we have for sale. Contact us for further details.

Overview

  • brand: SCHELLING
  • year: 2005
  • MODEL: FM-H 430
  • application type: Sawing (Wood)
  • Location: Germany
  • machine type: Panel Saw

Additional Information

  • Feed speed: forward 0–25 m/min, reverse 80 m/min

  • Saw feed speed: forward up to 120 m/min, reverse 120 m/min

  • Saw motor: up to 19 kW at 2930 rpm, 50 Hz

  • Scoring motor: 1.5 kW at 2830 rpm, 50 Hz

  • Clamp opening: 113 mm

  • Cutting straightness: ±0.1 mm over a 3 m cutting length

  • Dimensional accuracy: ±0.2 mm length, ±0.2 mm width, ±0.3 mm diagonal

  • Main saw blade: diameter 450 mm; bore 30 mm; thickness 4.4 mm; 72 teeth

  • Scoring blade: diameter 200 mm; bore 20 mm; thickness 4.2 / 3.5 mm; 36 teeth

  • Edge scoring blade: diameter 220 mm; bore 20 mm; thickness 4 / 4.8 mm; 2 × 24 teeth

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
