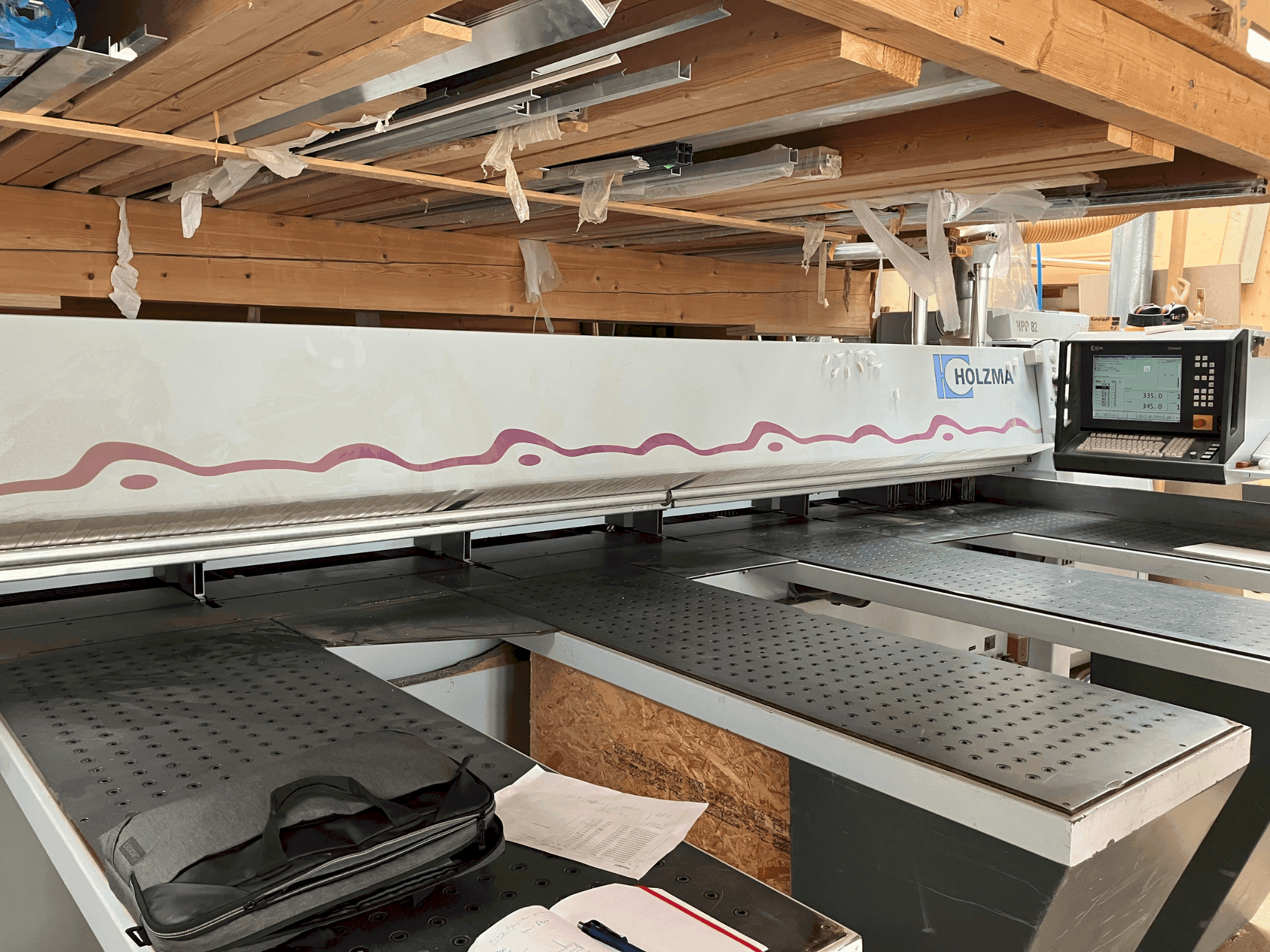

HOLZMA HPP 82/43

Photo Gallery

HOLZMA - HPP 82/43DE-SAW-HOL-2001-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used HOLZMA HPP 82/43 - Saw For Sale | gindumac.com

Show in original language

This HOLZMA HPP 82/43 panel saw was manufactured in 2001. It features a main saw motor of 13.5 kW and a scoring saw motor of 2.2 kW, ensuring robust performance. The machine boasts a cutting length of 4300 mm and a cutting width of 4250 mm, with a saw blade diameter of 380 mm. It has been operational for only 5,466 hours. Consider the opportunity to buy this HOLZMA HPP 82/43 panel saw. Contact us for more information.

Overview

brand: HOLZMA
year: 2001
MODEL: HPP 82/43
production hours: 5466
application type: Sawing (Wood)
Location: Germany
machine type: Panel Saw

Additional Information

Additional equipment

7 Collets: First three are two-fingered, all others are single-fingered
2 Additional Two-Fingered Collets Possible
1 Additional Single-Fingered Collet Possible

Machine Benefits

Technical Machine Benefits

Ce-tested // gs-tested fph // dust-tested
Collet opening max. : 100 mm
Cutting length: 4300 mm
Cutting width: 4250 mm
Air cushion table: 1 table 2160 x 650 mm and 3 tables 1760 x 650 mm with blower
Saw carriage feed forward speed: 5 - 125 m/min // saw carriage feed reverse speed: 125 m/min
Program slide speed forward/reverse max. : 80 m/min
Saw blade diameter: 380 mm // saw blade projection: 95 mm
Main saw blade: hm 380 x 48 x 60
Scoring saw blade: hm 180 x 48 - 58 x 45

Extra Information

Media Compressed Air: 6 bar Operating Voltage: 400 V / 50 Hz Operating Temperature Min.: +5 °C Operating Temperature Max.: +35 °C Minimum Extraction Speed at Extraction Nozzle: Approx. 26 m/s Extraction Connection for Chip Channel: 1 x 200 mm Extraction Connection for Pressure Beam: 1 x 150 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
