HOLZMA - HCL 11/56/22SI-SAW-HOL-2001-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used HOLZMA HCL 11/56/22 - Saw For Sale | gindumac.com

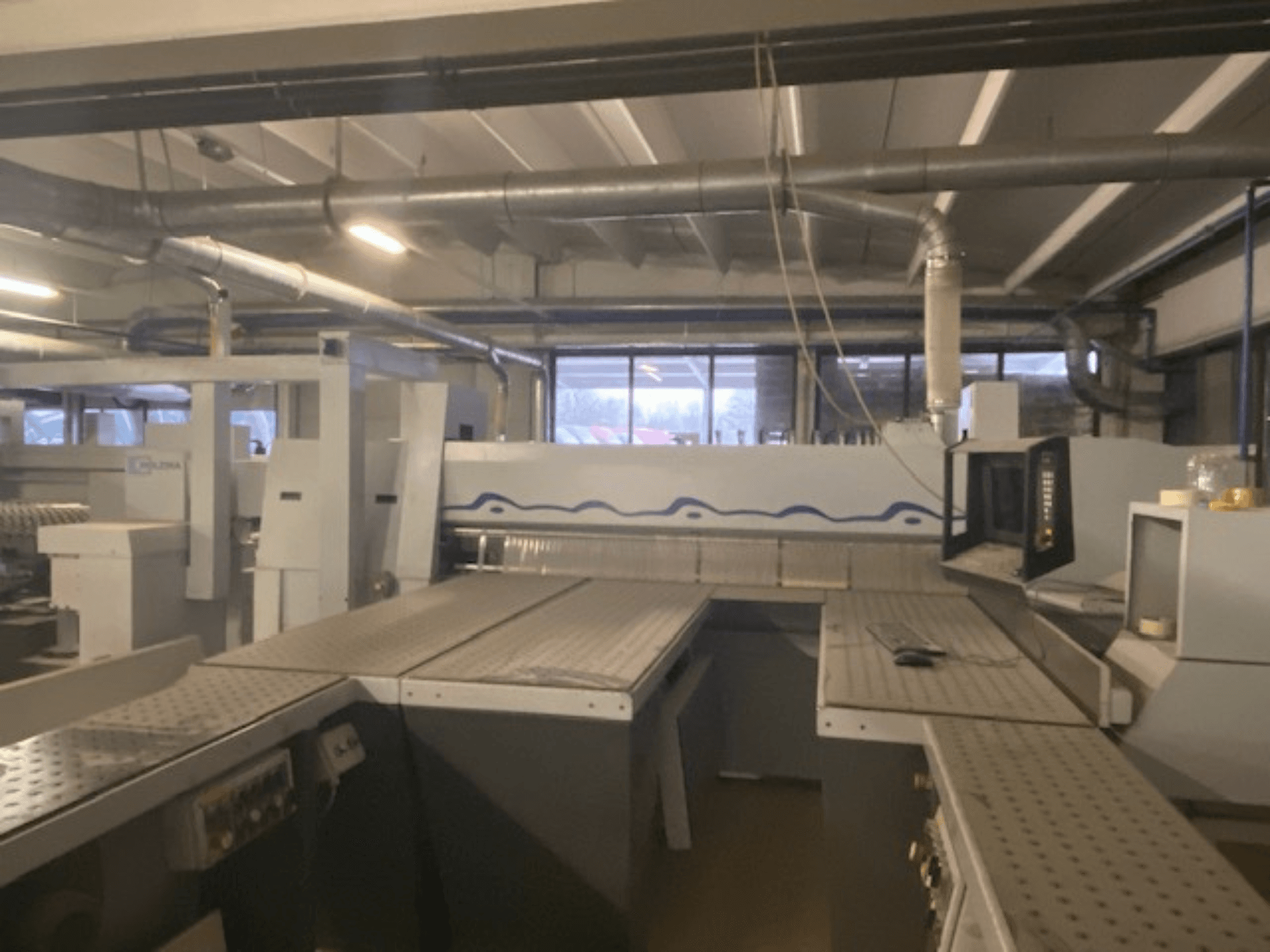

This HOLZMA HCL 11/56/22 was manufactured in 2001. It features a maximum panel size of 5600 × 2200 mm and a cutting length of 5600 mm for longitudinal sawing. The saw blade projects up to 125 mm, and it includes a turning station sized 1250 × 1250 mm. With a lifting capacity of 10 tons and a maximum lifting height of 1430 mm, consider the opportunity to buy this HOLZMA HCL 11/56/22 panel saw. Contact us for more information.
Overview
- brand: HOLZMA
- year: 2001
- MODEL: HCL 11/56/22
- production hours: 22539
- application type: Sawing (Wood)
- Location: Slovenia
- machine type: Panel Saw
Additional Information
Total connected load: 88 kW
Voltage: 400 V / 50 Hz / 3~ + N
Current: 159–160 A
Control voltage: 24 V
Cutting capacities:
Maximum panel size: 5600 × 2200 mm
Minimum panel size: 2440 × 1220 mm
Cutting length (longitudinal saw): 5600 mm
Cross saw: 2200 mm
Saw blade projection: 125 mm
Pneumatic and extraction requirements:
Required air pressure: 6 bar
Air consumption: 250–300 l/min
Dust extraction volume: 10,000 m³/h
Air speed: 26 m/s
Installation / floor requirements:
Concrete quality: B25
Minimum concrete thickness: 200 mm
Floor level tolerance: ±10 mm
Working height: approx. 485–520 mm
Extraction connections: Ø 320 mm (main) + Ø 150 mm + Ø 80 mm
Operating hours (from counters):
Counter 1: 23,610.8 h
Counter 2: 22,539.7 h
Additional equipment
Lift table:
Maximum panel size: 5600 × 2200 mm
Stack height without pit: 550 mm
Stack height with pit: 1430 mm
Maximum lifting height: 1430 mm
Lifting capacity: 10 t
Turning station:
Dimensions: 1250 × 1250 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
