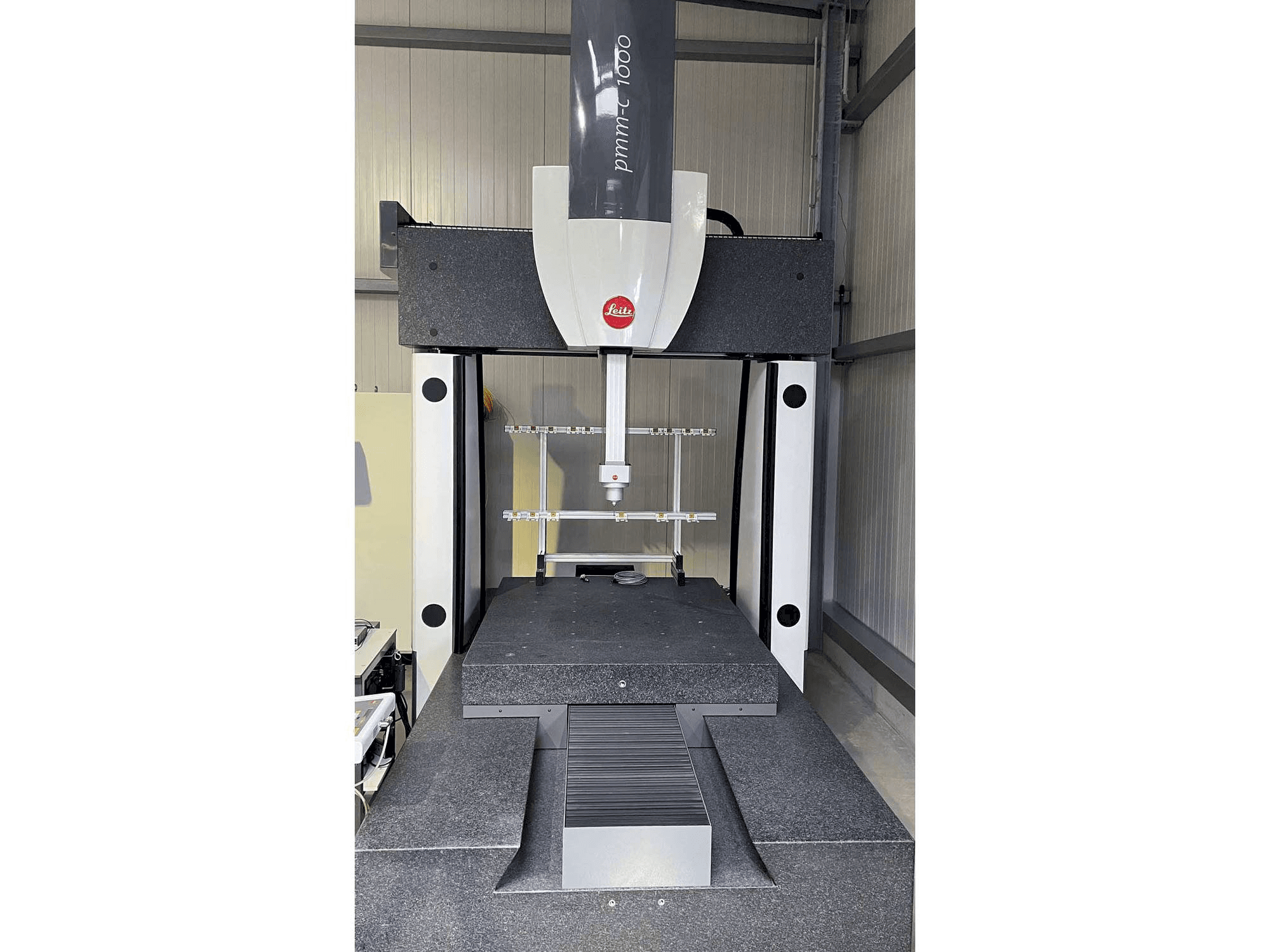

- Hexagon (LEITZ) PMM-C 1000 Measuring machine
This Hexagon (LEITZ) PMM-C 1000 Measuring machine was manufactured in the year 2006 in Germany. It is equipped with a B4 control unit. The machine has a Length measurement error of 1,6 μm + L / 400.
Overview
- brand: Hexagon
- year: 2006
- MODEL: PMM-C 1000
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
- availability: Sold
Technical Information - Hexagon PMM-C 1000
General Data
- Measurements width: 2213 mm
- Measurements depth: 3595 mm
- Measurements height: 3790 mm
- Machine weight: 10300 kg
Movement
- X-AXIS Movement: 1600 mm
- Y-AXIS Movement: 1200 mm
- Z-AXIS Movement: 1000 mm
Additional Information
- Technical Machine Benefits:
- - Calibration sphere: Ø 30 mm / ceramic
- - Measuirng head: lsp-s2
- - Probe changer rack: with 10 stylus clamping / 10 receptacle
- - Computer / monitor: dell precision t 5820 / 24“
- - Operating system: windows 10 professional
- - Metrology software: quindos 7 basis / release q7r2020. 2-1
- - Substructure: bilz / active pneumatic dampers
- - Length measurement error: e0 as per iso 10360-2 iso 10360-2 1,6 μm + l / 400
- - Temperature range: 18-22°c 1c°/h, 2c°/24h 1c°/m vertical and horizontal
- - Optionally, we offer the following services / installation, commissioning, factory or dakks calibration
- Qualitative Machine Benefits:
- - The equipment relating to the probe system, probe changer rack, software, pc peripherals, etc. Can be adapted or expanded.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
