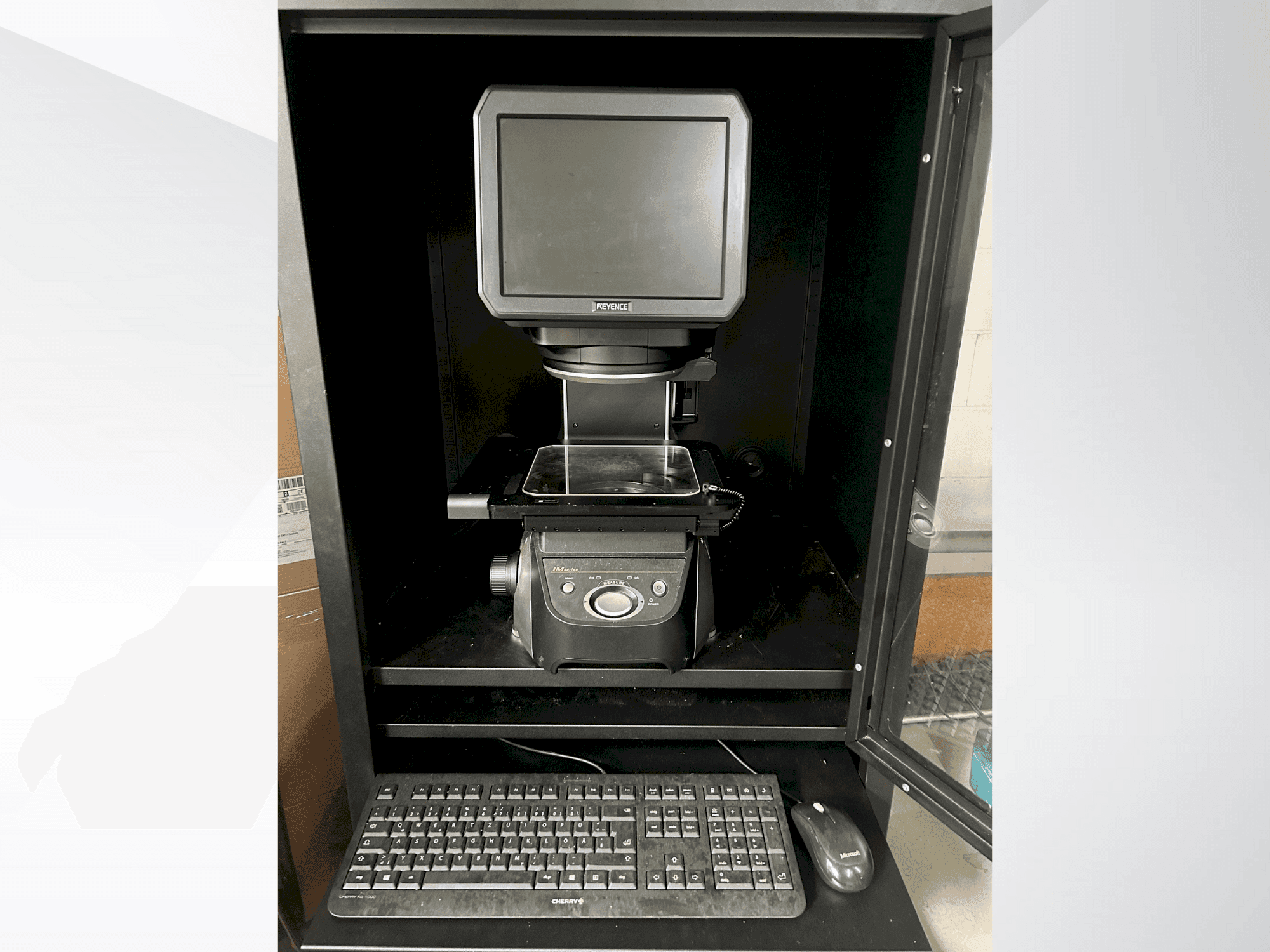

Front view of KEYENCE IM 7020  machine

KEYENCE - IM 7020DE-MEA-KEY-2018-00001

Rs. 1,782,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This optical measurement machine was manufactured in 2018. It features a monochrome CMOS sensor, a 10.4" display, and a telecentric lens system. The machine offers a standard measurement mode with a 200 mm x 200 mm area and a precision mode of 125 mm x 125 mm. It supports a variety of external connections including LAN and USB ports. Consider the opportunity to buy this KEYENCE IM 7020 optical measurement machine. Contact us for more information about this machine.

Overview

  • brand: KEYENCE
  • year: 2018
  • MODEL: IM 7020
  • application type: Measuring
  • Location: Germany
  • machine type: Optical Measurement Machine
  • availability: DE MEA KEY 2018 00001

Technical Information - KEYENCE IM 7020

    Additional equipment

    • - Optical Probe Measurement: Measurable Range: Diameter: Ø90 mm x 90 mm / Max Depth: 30 mm / Probe Tip Diameter: Ø3 mm / Contact Force: 0.015 N / Repeatability: ±2 micra / Accuracy: ±(8 + 0.02L) micra
    • - External Connections: Input: Voltage-free input (contact or non-contact) / Output: Photo-MOS output, rated at 24 V DC, 0.5 A
    • - Interfaces: LAN: RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) / USB: USB 2.0 Type-A (6 ports: 2 front, 4 rear)
    • - Storage: Hard Disk: 500 GB
    • - Lighting System: Transmitted Light: Telecentric backlight (green LED) / Ring Light: Multi-angle lighting with 4 segments (white LED) / Flat-angle directional lighting (green LED)
    • - XY Object Table: Travel: 100 mm x 100 mm (electric) / Max Load Capacity: 5 kg / Z Object Table: Travel: 75 mm (electric)
    • - Power Supply: Voltage: 100-240 V AC, 50/60 Hz / Power Consumption: Max 430 VA

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Control unit: 31 kg, measurement head: 8 kg, marking head: 31 kg
        • - Measurement head: image sensor: monochrome cmos, 1", 6. 6 megapixels / display: 10. 4" (xga: 1024 x 768) / lens system: telecentric lens for image-based measurement
        • - Measurement area: standard measurement mode: 200 mm x 200 mm / precision measurement mode: 125 mm x 125 mm
        • - Resolution: 0. 1 micra
        • - Repeatability: standard measurement mode: without stage movement: ±1 micra / with stage movement: ±2 micra
        • - Precision measurement mode: without stage movement: ±0. 5 micra / with stage movement: ±1. 5 micra
        • - Tandard measurement mode: without stage movement: ±5 micra / with stage movement: ±(7 + 0. 02l) micra/ (l = stage displacement in mm)
        • - Precision measurement mode: without stage movement: ±2 micra / with stage movement: ±(4 + 0. 02l) micra

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
