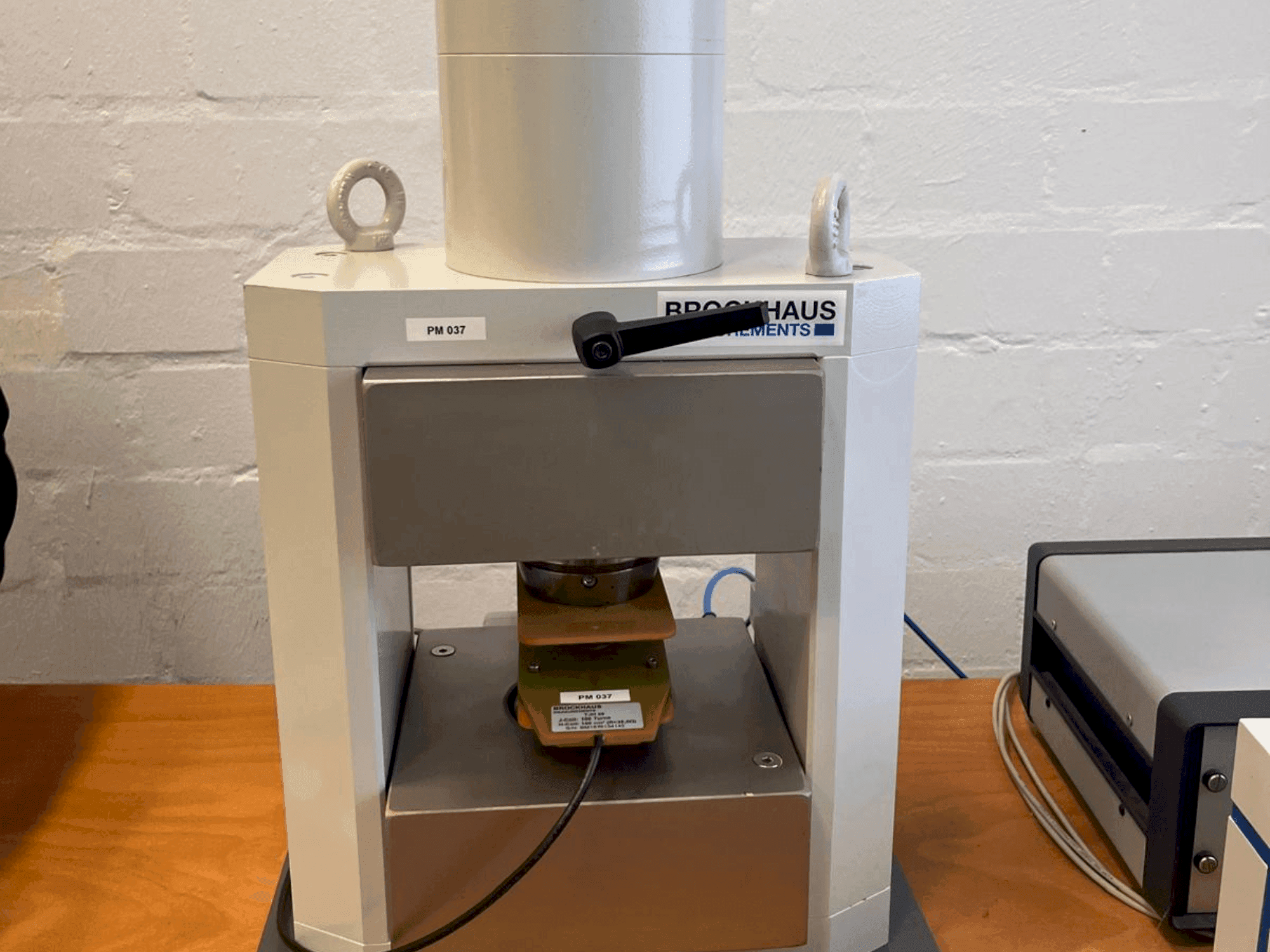

BROCKHAUS HG200 D

Photo Gallery

BROCKHAUS - HG200 DDE-MEA-BRO-2018-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BROCKHAUS HG200 D For Sale | gindumac.com

Show in original language

This BROCKHAUS HG200 D was manufactured in 2018. It features a comprehensive measurement system for hard magnetic materials, capable of handling high temperatures up to 200°C. It includes a fully computer-controlled setup with real-time hysteresis display, and BROCKHAUS MAG Expert software for integration into QM systems. Ideal for research and quality control environments. Contact us for more information about this machine.

Overview

brand: BROCKHAUS
year: 2018
MODEL: HG200 D
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Technical Information - BROCKHAUS HG200 D

Dimensions

Machine Depth: 1760 mm
Machine Height: 760 mm

Additional Information

Additional equipment

Includes coil TJH 26
Includes Fluxmeter F10-3D

Machine Benefits

Technical Machine Benefits

Measuring ranges: 1, 10, 100 mvs and ± 1vs
Drift: < ±1µvs/min
Measuring coils: surrounding coils, pole coils, field coils
Power supply: 0 to ±125v, 0 to ± 25a (50a optional)
Electromagnet with interchangeable poles and coil fixture
Maximum field strength: 1200 – 1800 ka/m; 2400 ka/m; 3200 ka/m (dependent on air gap)
Air gap: 0 – 80mm
Measuring poles: interchangeable
Cabinet measuring table with container
Mains supply: 3 x 200 – 3 x 400v ac, 16a 50/60hz

Extra Information

Control Unit Fully computer-controlled measuring system Computer: PC, monitor, printer Software: MAG Expert under Windows Machine-Specific Data Measurement capabilities: All hard magnetic materials (AlNiCo, ferrite, SmCo, NdFeB, plastic composite) Measurement with constant flux alteration d/dt J-compensated surrounding coils, pole or field coils Measurement at temperatures up to 200°C Real-time display of hysteresis during measurement BROCKHAUS® MAG Expert software for measurement, presentation, and integration into QM systems Electromagnet with heating poles J-compensated coil; Potential coil Other measuring systems: AC/DC Hystograph, XYZ Field Scanner, Fluxmeter, Gaussmeter Measuring technology for soft magnetic materials Magnetizing technology Hystograph HG 200 Segment pole caps, Field coil, Measuring fixture with 2 drift-free Fluxmeters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
