HERMLE U 740

Photo Gallery

HERMLE - U 740FI-MIL-HER-2004-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HERMLE U 740 For Sale | gindumac.com

Show in original language

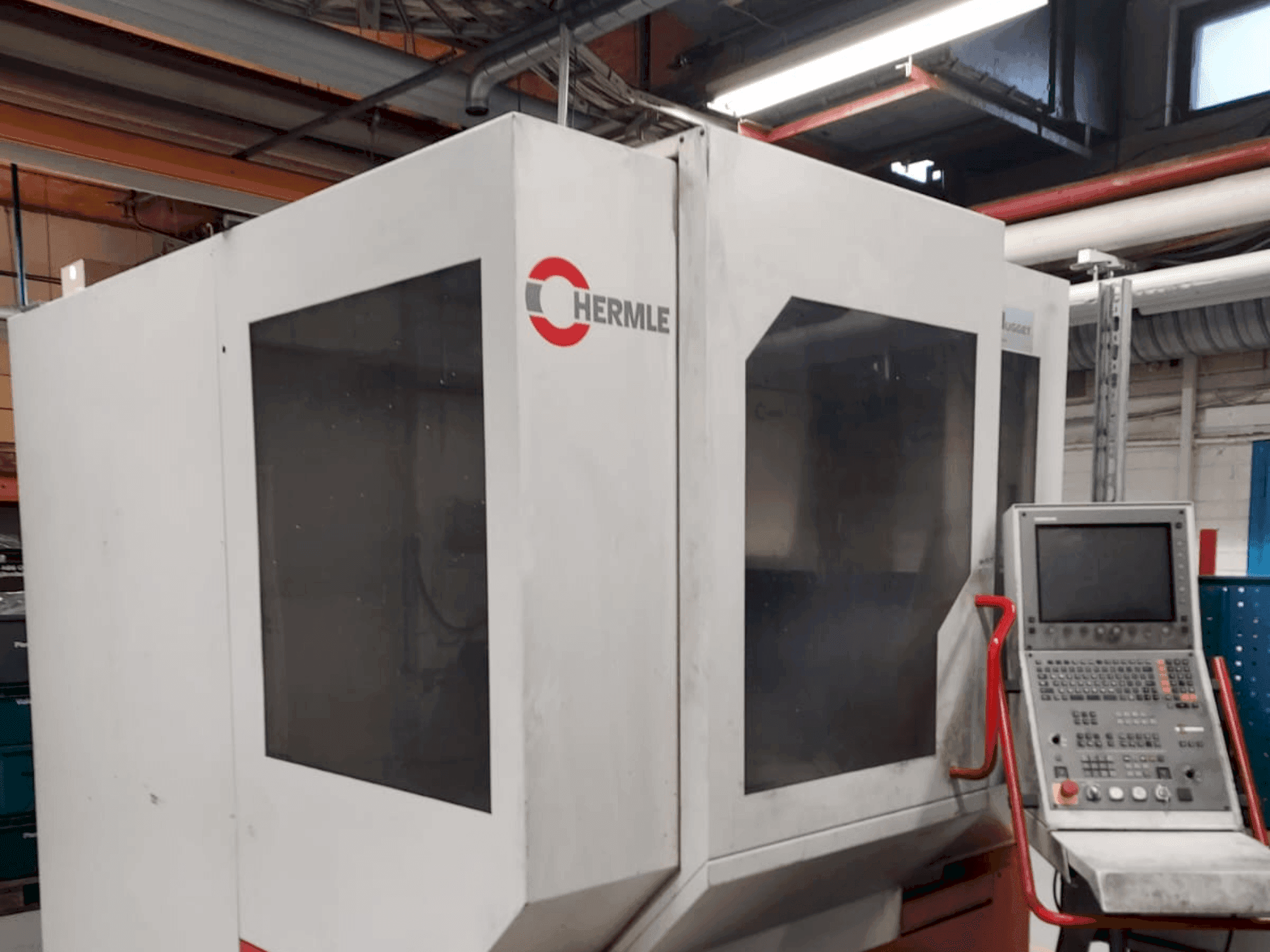

This 3-axis Hermle U 740 vertical machining centre was manufactured in 2004. It features a Heidenhain iTNC 530 control system, a spindle speed of 12,000 rpm, and a maximum workpiece weight of 700 kg. The machine dimensions are 2390mm in width, 3000mm in depth, and 7300mm in height. If you are looking to get high-quality milling capabilities, consider the Hermle U 740 machine we have for sale. Contact us for more information about this machine.

Overview

brand: HERMLE
year: 2004
MODEL: U 740
production hours: 21000
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE U 740

General Data

Measurements width: 2390 mm
Measurements depth: 3000 mm
Measurements height: 7300 mm

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 32 kW
Tool taper: SK 40
Number of axis: 3

Movement

X-AXIS Movement: 740 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 700 kg

Turret

Number of tool slots: 16

Media

Main electronic connection: 26 kVA
Cooling pressure: 40 bar

Additional equipment

- Chip Collecting Pan
- Renishaw Touch Probe
- BLUM Tool Breakage Measurement

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 200 nm
- - Table length: 900 mm
- - Table depth: 500 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
