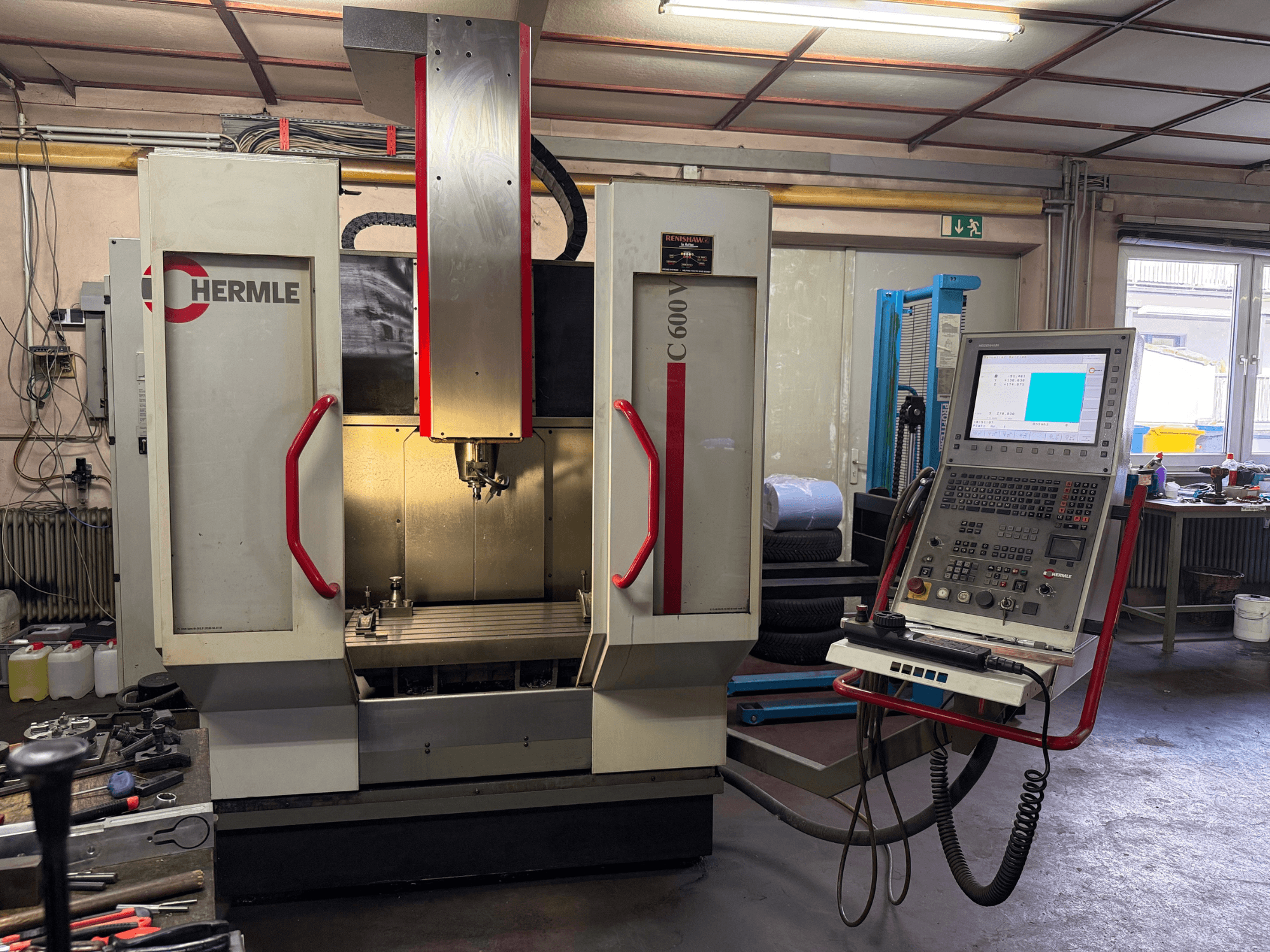

HERMLE - C600VDE-MIL-HER-2001-00005

• Spindle hours: 7,000 h

• Machine design: Modified gantry design

• CNC control: Heidenhain iTNC 530 with 15" TFT color screen

  • Flexible contour programming

  • 6 GB part program memory

  • 0.5 ms block processing time

  • Parallel operation with graphics

  • Thread cutting (rigid tapping; without compensating chuck)

  • Tool life monitoring

  • Ethernet interface

• Feed drives

  • Feed force: 6,000 N

  • Rapid traverse: 35 m/min

  • Acceleration: 5 m/s²

  • Feed screw diameter/pitch (X/Y/Z): 40 / 20 mm

• Measuring system: Direct scales, resolution 0.0001 mm

• Position tolerance (Tp, VDI/DGQ 3441): 0.008 mm (X/Y/Z)

• Main spindle

  • Torque (100% / 40% ED): 87 / 130 Nm

  • Taper: SK40 (similar DIN 2079), for tool holders per DIN 69871 A

• Rigid clamping table

  • Table surface: 800 x 465 mm

  • Max load: 1,000 kg

  • T-slots: 7 slots, size 14 mm H12, spacing 63 mm

  • Guide slot (4th from rear): 14 mm H7

• Tool changer

  • Magazine positions: 30

  • Max tool diameter: 80 mm (125 mm with free adjacent positions)

  • Max tool length: 250 mm

  • Max magazine load: 120 kg

  • Chip-to-chip (VDI 2852): 5.5 s

• Coolant system

  • Extendable chip box and accessible chip screen

  • Tank: 200 L

  • Flow rate: 40 L/min at 3 bar

• Utilities

  • Connected load: 400 V / 50 Hz

  • Power consumption: 22 / 35 kVA

  • Compressed air: 6 bar

• Other features

  • Electrical thermal expansion compensation

Additional equipment

• Electronic hand control module (handwheel)

• SK40 measuring probe system

• Blow-off device

• Chip flushing gun
