➤ Used HERMLE C50U For Sale | gindumac.com

Show in original language

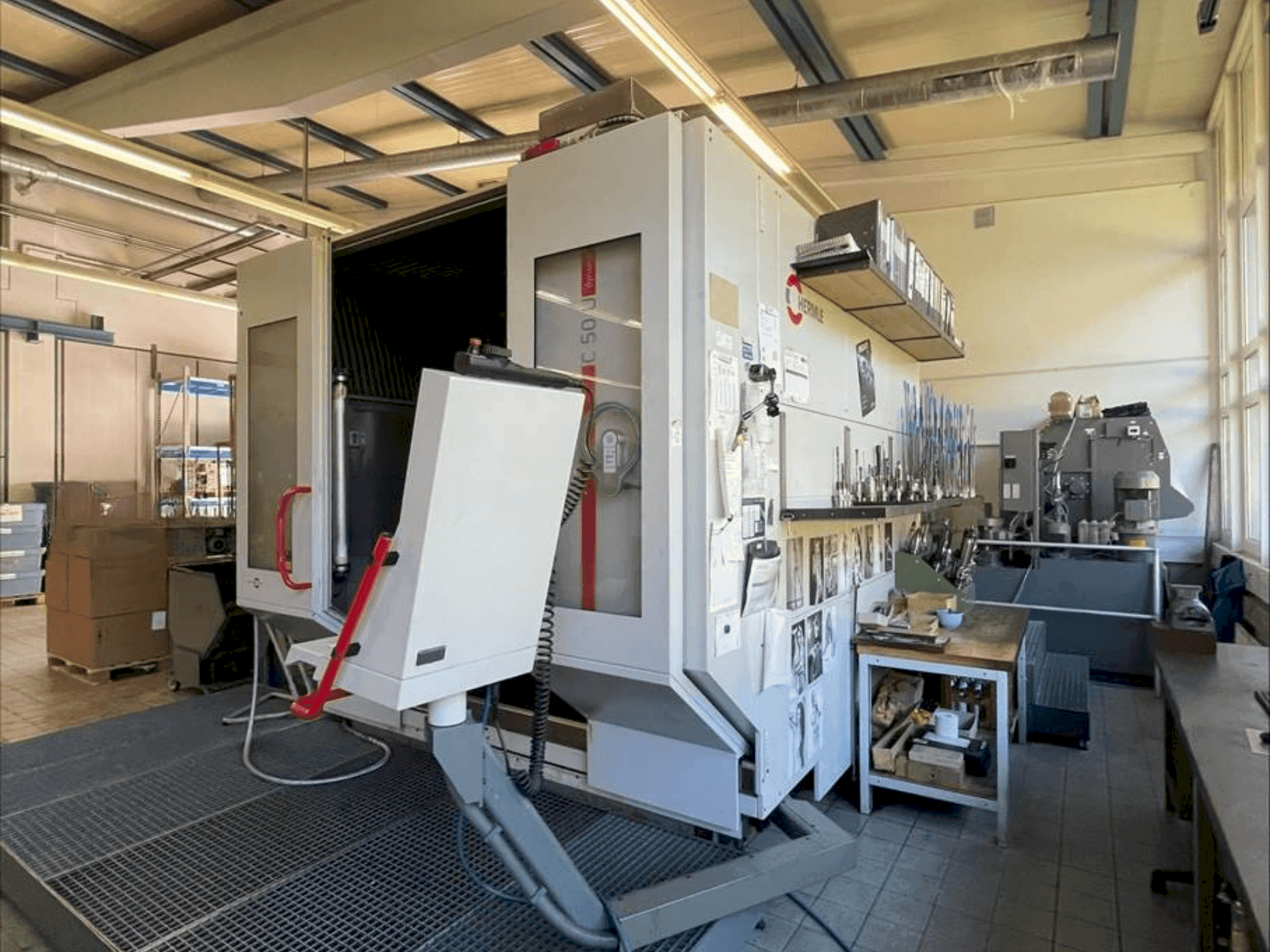

This 5-axis Hermle C50U was manufactured in 2012. It features a Heidenhain iTNC 530 control, a main spindle speed of 18,000 RPM, and a tool magazine with 60 slots. The machine includes a large NC swivelling rotary table and a chip conveyor system. If you are looking to get high-quality milling capabilities, consider the Hermle C50U machine we have for sale. Contact us for more information about this machine.

Overview

brand: HERMLE
year: 2012
MODEL: C50U
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C50U

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: HSK-A 63
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1100 mm
Z-AXIS Movement: 750 mm

Media

Chip conveyor: Yes

Additional equipment

- Coolant System: IKZ 80 bar with Variovent 104/12
- Chip Removal: Chip conveyor
- Doors: Automatic cabinet doors

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Type: nc-swivelling round table
- - Diameter: Ø1150 mm
- - Rotary feed-through: 9-axis
- - Tool magazine capacity: 60 tool places

Extra information

- Measuring System: 3D probe Blum Measuring touch probe Renishaw Free Accessories: Electrical heat compensation Electrical handheld module Chip flushing spray gun Bed flushing Inner air blow-out Outer air blow-out Oil mist extractor 450 liters Preparation for oil mist extractor Sighting light Air seal for glass scales External coolant additive

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
